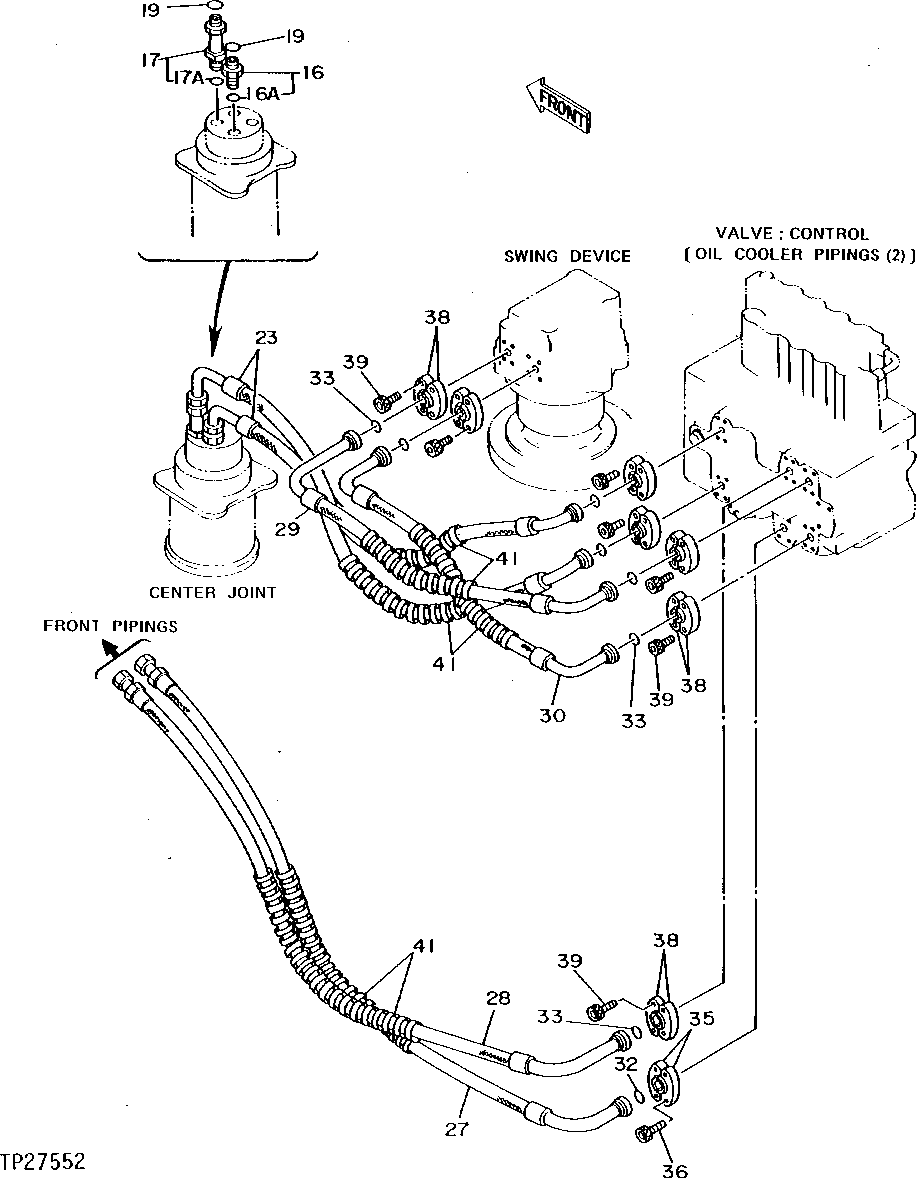

Запчасти John Deere 90D 182 - HIGH PRESSURE HYDRAULIC HOSES AND LINES 3360 HYDRAULIC SYSTEM

16

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

1шт.

16A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

17

4189539

Adapter Fitting

(SUB FOR AT126359 ) (SUB FOR AT107393)

1шт.

17A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

19

T77858

O-Ring

(SUB FOR TH108349)

2шт.

23

AT126536

Hose

2шт.

27

4225423

Hose

(SUB FOR TH112066)(TO ARM CYLINDER)

1шт.

28

4196274

Hydraulic Hose

(SUB FOR AT126311)(TO ARM CYLINDER)

1шт.

29

AT126540

Hose

1шт.

30

4213433

Hose

(SUB FOR AT126541)

1шт.

32

T59014

O-Ring

1шт.

33

R69667

O-Ring

(SUB FOR TH108300, THIS APPLICATION)

7шт.

35

R29424

Flange Fitting

(SUB FOR TH108300)

2шт.

36

19M8337

Screw

M10 X 30

4шт.

38

4510173

Fitting

(SUB FOR TH108341)

14шт.

39

19M8439

Screw

M8 X 25

28шт.

41

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LEN GTH) (SUB FOR TH100996, AT138222 OR 3052919)

6шт.
