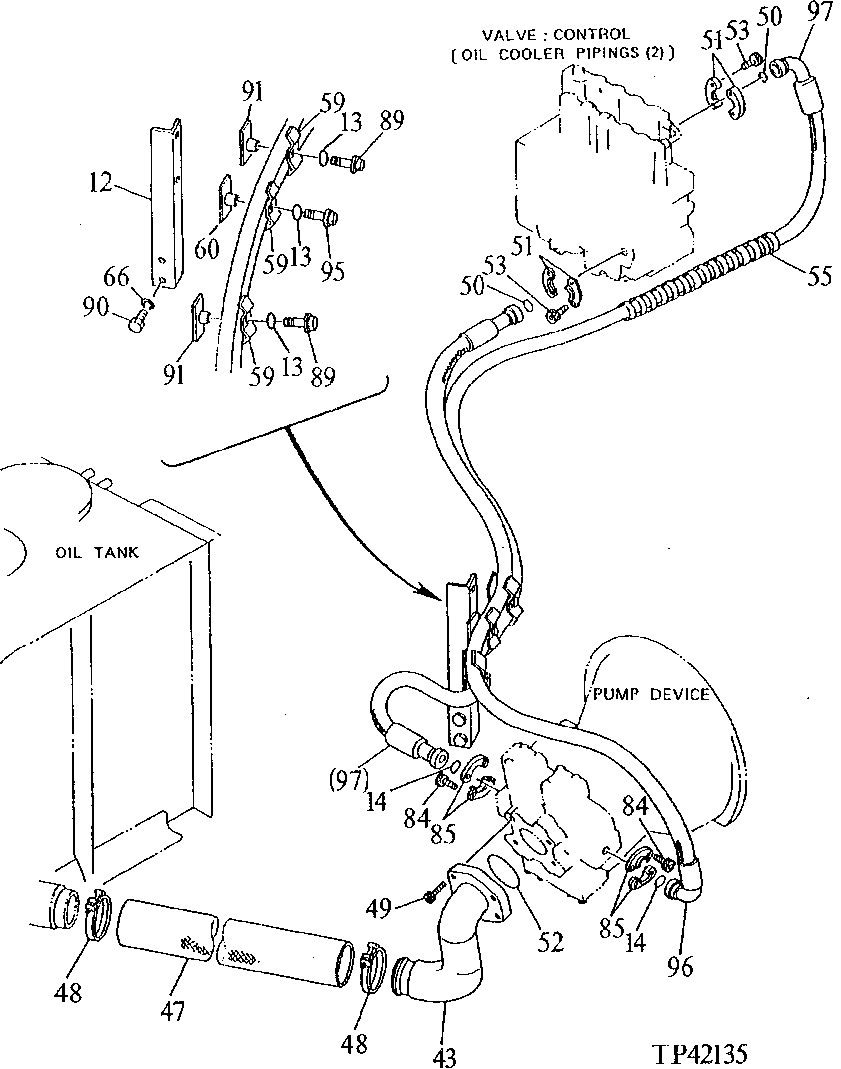

Запчасти John Deere 90D 180 - HYDRAULIC HOSES AND LINES 3360 HYDRAULIC SYSTEM

12

9728264

Support

(SUB FOR AT127215)

1шт.

13

12H301

Lock Washer

1/2"

3шт.

14

T78313

O-Ring

(SUB FOR H61355)

2шт.

43

8044137

Line

(SUB FOR AT127123)

1шт.

47

4120314

Hose

(SUB FOR AT126201)

1шт.

48

AT50923

Hose Clamp

2шт.

49

19M8490

Screw

M16 X 40

4шт.

50

T59014

O-Ring

2шт.

51

R29424

Flange Fitting

(SUB FOR TH108300)

4шт.

52

AT264339

O-Ring

(SUB FOR TH100122)

1шт.

53

19M8337

Screw

M10 X 30

8шт.

55

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LEN GTH) (SUB FOR TH100996, AT138222 OR 3052919)

2шт.

59

4202103

Clamp

(SUB FOR TH108302)

3шт.

60

9727633

Clamp

(SUB FOR TH108303)

1шт.

66

12H301

Lock Washer

1/2"

2шт.

84

19M8395

Screw

M12 X 40

8шт.

85

4085560

Flange Fitting

(SUB FOR TH101960)

4шт.

89

19M7361

Cap Screw

M12 X 50

2шт.

19M8348

Cap Screw

M12 X 65

2шт.

90

19M7872

Cap Screw

M12 X 25

2шт.

91

9727822

Clamp

(SUB FOR TH109556)

2шт.

95

19M8348

Cap Screw

M12 X 65

1шт.

96

AT126834

Hose

(HIGH PRESSURE)

1шт.

97

AT126833

Hose

(HIGH PRESSURE)

1шт.
