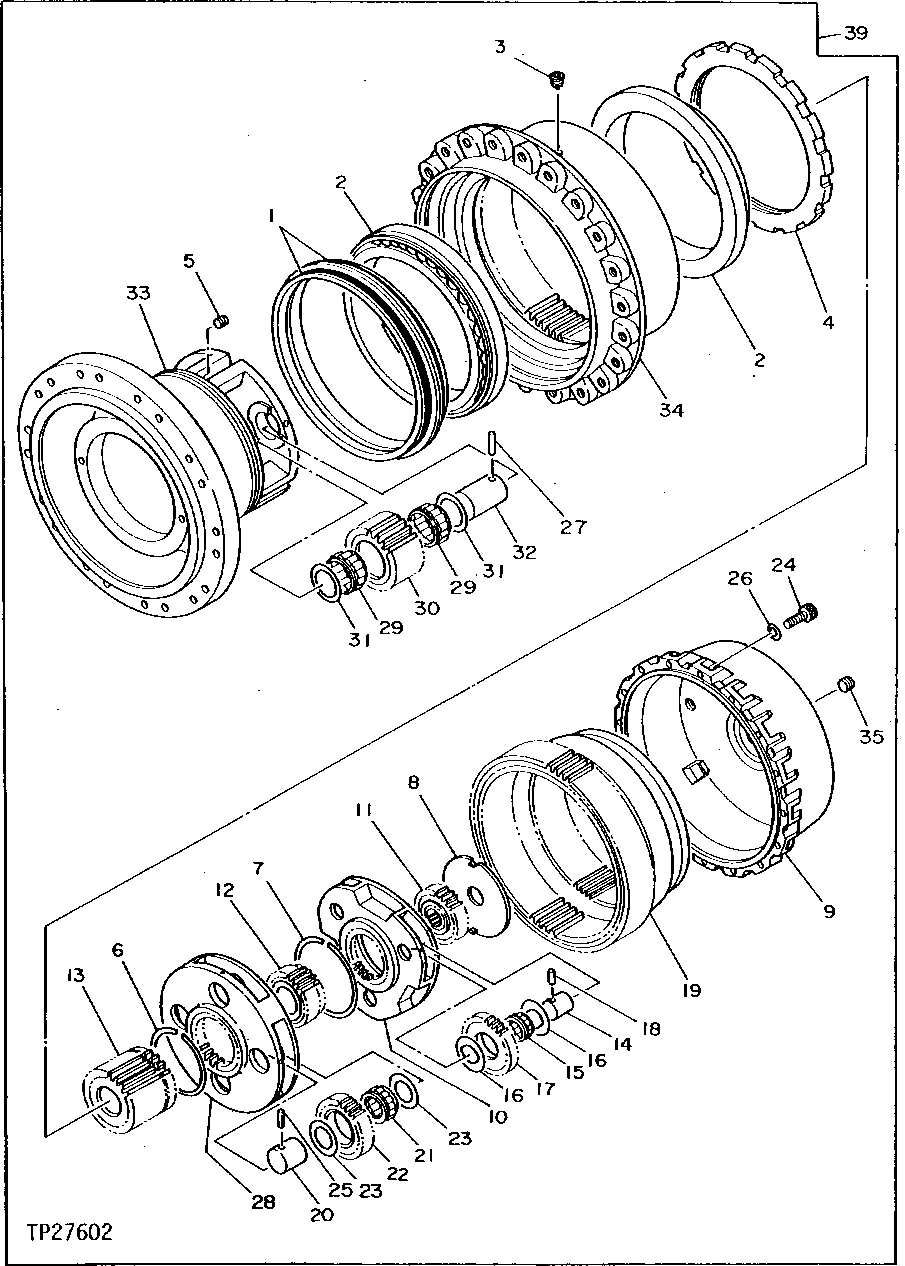

Запчасти John Deere 90D 8 - Transmission ( - 002294) 0250 Axle Shaft, Bearings, Reduction Gears

1

0251523

Seal

1шт.

2

0251524

Bearing

SUB FOR AT128006

2шт.

3

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

1шт.

4

0251525

Nut

M240 SUB FOR AT128007

1шт.

5

94-2012

Fitting Plug

SUB FOR TH100653

3шт.

6

0251521

Snap Ring

SUB FOR AT128003

1шт.

7

0251519

Plate

SUB FOR AT128001

1шт.

8

0251526

Plate

SUB FOR AT128008

1шт.

0251527

Plate

SUB FOR AT128009

1шт.

0251528

Plate

SUB FOR AT128010

1шт.

9

0251529

Cover

SUB FOR AT128011

1шт.

10

0357502

Holder

SUB FOR AT128067

1шт.

11

0251517

Gear

SUB FOR AT128000

1шт.

12

0310110

Sun Gear

SUB FOR AT128040

1шт.

13

0251520

Sun Gear

SUB FOR AT128002

1шт.

14

0251505

Shaft

SUB FOR AT127995

3шт.

15

AT127994

Needle Bearing

3шт.

16

0411606

Thrust Washer

SUB FOR AT127996 OR 0251506

6шт.

17

0251503

Gear

SUB FOR AT127993

3шт.

18

34M7027

Spring Pin

4 X 20 mm SUB FOR AT128080

3шт.

19

Ring Gear

AT128004 OR 0251522 NLA

1шт.

20

0310107

Shaft

SUB FOR AT128038

4шт.

21

0251510

Needle Bearing

SUB FOR AT127997

4шт.

22

0310106

Gear

SUB FOR AT128037

4шт.

23

0310108

Shim

SUB FOR AT128039

8шт.

24

19M8337

Screw

M10 X 30

16шт.

25

34M7030

Spring Pin

5 X 20 mm

4шт.

26

12M7066

Lock Washer

10 mm SUB FOR AT128081 OR 4144341

16шт.

27

34M7030

Spring Pin

5 X 20 mm

3шт.

28

0310105

Holder

SUB FOR AT128036

1шт.

29

0251515

Needle Bearing

SUB FOR AT127999

6шт.

30

0251514

Gear

SUB FOR AT127998

3шт.

31

0310108

Shim

SUB FOR AT128039

6шт.

32

0357002

Shaft

SUB FOR AT128063

3шт.

33

Housing

SUB AT126840

1шт.

34

Housing

SUB AT126840

1шт.

35

94-2013

Fitting Plug

SUB FOR TH100648

3шт.

39

Transmission

AT126840 OR 4237918 NLA

1шт.
