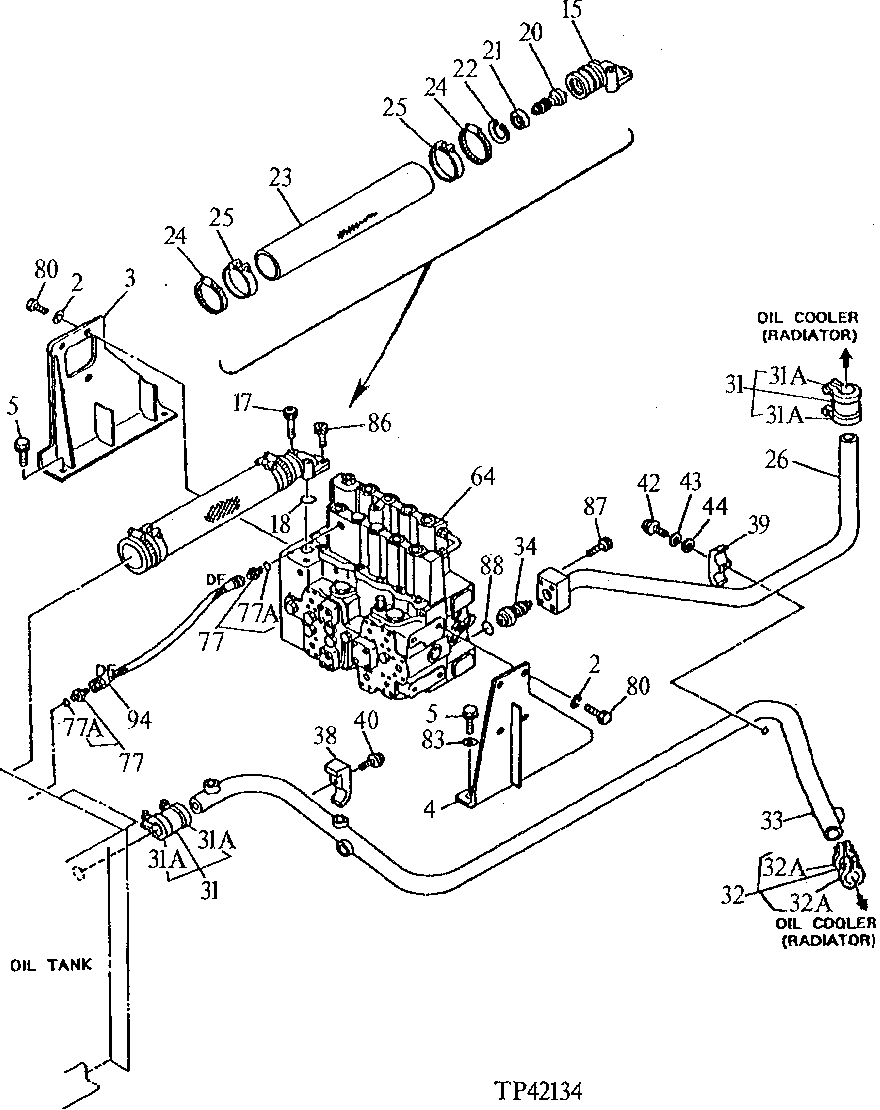

Запчасти John Deere 90D 179 - LOW PRESSURE HYDRAULIC HOSES AND LINES 3360 HYDRAULIC SYSTEM

2

12H317

Lock Washer

9/16"

8шт.

3

8037416

Bracket

SUB FOR TH108296

1шт.

4

8037415

Bracket

SUB FOR TH108297

1шт.

5

19M7403

Cap Screw

M12 X 35

4шт.

15

2021613

Manifold

SUB FOR TH108304

1шт.

17

19M8340

Screw

M10 X 65

2шт.

18

AT264324

O-Ring

SUB FOR TH100044, USE IF AVAILABLE

1шт.

AT264324

O-Ring

SUB FOR T32587, TH100044

1шт.

20

4188627

Flow Control Hyd. Valve

SUB FOR TH108305

1шт.

21

4188628

Ring

SUB FOR TH108306

1шт.

22

40M1864

Snap Ring

1шт.

23

4196287

Hose

SUB FOR AT126312

1шт.

24

TY22472

Clamp

SUB FOR AT145651 OR AR21999

2шт.

25

AT39141

Hose Clamp

SUB FOR TH108308, OR AH 104837 THIS APPLICATION

2шт.

26

8044270

Line

SUB FOR AT127129

1шт.

31

4071213

Coupling

SUB FOR TH101923 AND FXV00000005

2шт.

31A

Coupling

SUB FOR TH106965 AND 4196258

2шт.

32

4069801

Coupling

SUB FOR TH101915 AND 4712341

1шт.

32A

4196259

Seal

SUB FOR TH106966

2шт.

33

8044269

Line

SUB FOR AT127128

1шт.

34

4204745

Flow Control Hyd. Valve

SUB FOR TH109531

1шт.

38

4190127

Clamp

SUB FOR TH108313

1шт.

39

FF101775

Clamp

SUB FOR 4198598 AND AT126328

1шт.

40

19M8348

Cap Screw

M12 X 65

1шт.

42

19M8088

Cap Screw

M12 X 75

1шт.

43

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

44

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

64

4229940

Hyd Actuated Control Valve

SUB FOR AT126801, AT186095 AND 4229940EX

1шт.

77

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

77A

M800650

Packing

1шт.

80

19M7877

Cap Screw

M14 X 30

8шт.

83

4086891

Washer

SUB FOR TH104166

2шт.

86

M341022

Screw

SUB FOR TH105695

2шт.

87

19M8339

Screw

M10 X 55

4шт.

88

4203137

O-Ring

SUB FOR TH108310

1шт.

94

AH99745

Hydraulic Hose

1шт.
