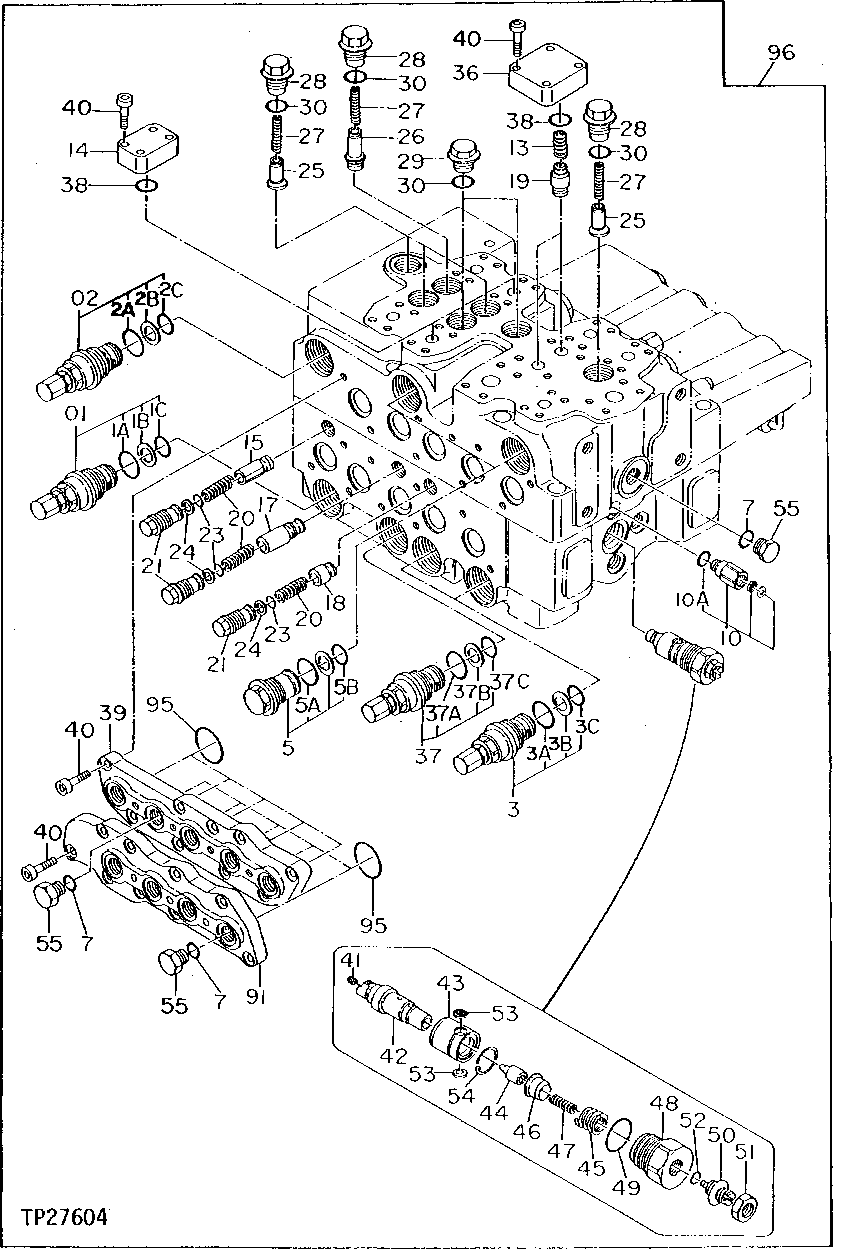

Запчасти John Deere 90D 176 - Main Control Valve 3360 HYDRAULIC SYSTEM

1

0357602

Pressure Relief Valve

SUB FOR AT128068, DIG

1шт.

1A

AT264347

O-Ring

SUB FOR TH100136 OR 4506428

1шт.

1B

4027959

Back-Up Ring

SUB FOR AT134327 OR TH100771

1шт.

1C

CH12329

Packing

1шт.

2

0357603

Pressure Relief Valve

SUB FOR AT128069, PROPEL

1шт.

2A

AT264347

O-Ring

SUB FOR TH100136 OR 4506428

1шт.

2B

4027959

Back-Up Ring

SUB FOR AT134327 OR TH100771

1шт.

2C

CH12329

Packing

1шт.

3

9202625

Flow Control Hyd. Valve

SUB FOR AT128070, AT128356 OR 4265364ARM

2шт.

3A

AT264347

O-Ring

SUB FOR TH100136 OR 4506428

1шт.

3B

4027959

Back-Up Ring

SUB FOR AT134327 OR TH100771

1шт.

3C

CH12329

Packing

1шт.

5

0309461

Plug

SUB FOR TH109201

2шт.

5A

AT264347

O-Ring

SUB FOR TH100136 OR 4506428

1шт.

5B

CH12329

Packing

1шт.

7

CH11570

O-Ring

3шт.

10

9202621

Adapter Fitting

SUB FOR 0328506 OR AT128047

1шт.

10A

M800650

Packing

1шт.

13

0309406

Spring

SUB FOR TH109145

2шт.

14

0309464

Plate

SUB FOR TH109204

2шт.

15

0309408

Flow Control Hyd. Valve

SUB FOR TH109147

1шт.

17

0309410

Flow Control Hyd. Valve

SUB FOR TH109149

1шт.

18

0309411

Flow Control Hyd. Valve

SUB FOR TH109150

1шт.

19

0309412

Flow Control Hyd. Valve

SUB FOR TH109151

2шт.

20

0309413

Spring

SUB FOR TH109152

3шт.

21

0357606

Fitting Plug

SUB FOR TH109153

3шт.

23

CH10568

Packing

SUB FOR TH102668

3шт.

24

2046494

Back-Up Ring

SUB FOR TH109155 OR 0309416

3шт.

25

0309417

Flow Control Hyd. Valve

SUB FOR TH109156

4шт.

26

0309418

Flow Control Hyd. Valve

SUB FOR TH109157

1шт.

27

0309419

Spring

SUB FOR TH109158

5шт.

28

0309420

Adapter Fitting

SUB FOR TH109159

5шт.

29

R27474

Drain Plug

2шт.

30

R47151

O-Ring

7шт.

36

0328507

Plate

SUB FOR AT128072

1шт.

37

Valve

SUB FOR 4265364 OR AT128 070 NLA, BUCKET AND BOOM

1шт.

9202625

Flow Control Hyd. Valve

SUB FOR AT128356 OR 42 65364, BUCKET AND BOOM

1шт.

37A

AT264347

O-Ring

SUB FOR TH100136 OR 4506428

1шт.

37B

4027959

Back-Up Ring

SUB FOR AT134327 OR TH100771

1шт.

37C

CH12329

Packing

1шт.

38

CH12329

Packing

4шт.

39

0309452

Housing

SUB FOR TH109192

1шт.

40

0309455

Screw

SUB FOR TH109195

30шт.

41

22M7152

Set Screw

M4 X 4 SUB FOR TH109169

1шт.

42

0328502

Flow Control Hyd. Valve

SUB FOR AT128043

1шт.

43

2046851

Bushing

SUB FOR AT128044 OR 0328503

1шт.

44

0309433

Flow Control Hyd. Valve

SUB FOR TH109172

1шт.

45

0309434

Spring

SUB FOR TH109173

1шт.

46

0309435

Valve Seat

SUB FOR TH109174

1шт.

47

0309436

Spring

SUB FOR TH109175

1шт.

48

0309437

Adapter Fitting

SUB FOR TH109177

1шт.

49

R56751

O-Ring

SUB FOR TH100741

1шт.

50

0309438

Screw

SUB FOR TH109178

1шт.

51

2046464

Nut

SUB FOR TH109179 AND 0309439

1шт.

52

CH17167

O-Ring

SUB FOR TH109180

1шт.

53

0328505

Filter

SUB FOR AT128046

2шт.

54

0328504

Snap Ring

SUB FOR AT128045

1шт.

55

0218608

Drain Plug

SUB FOR TH109203 OR TH110243

3шт.

91

0309450

Housing

SUB FOR TH109190

1шт.

95

4S00101

O-Ring

SUB FOR (10) TH109194

10шт.

96

4229940

Hyd Actuated Control Valve

CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING P AGES SUB FOR AT126801, AT186095 AND 4229940EX

1шт.
