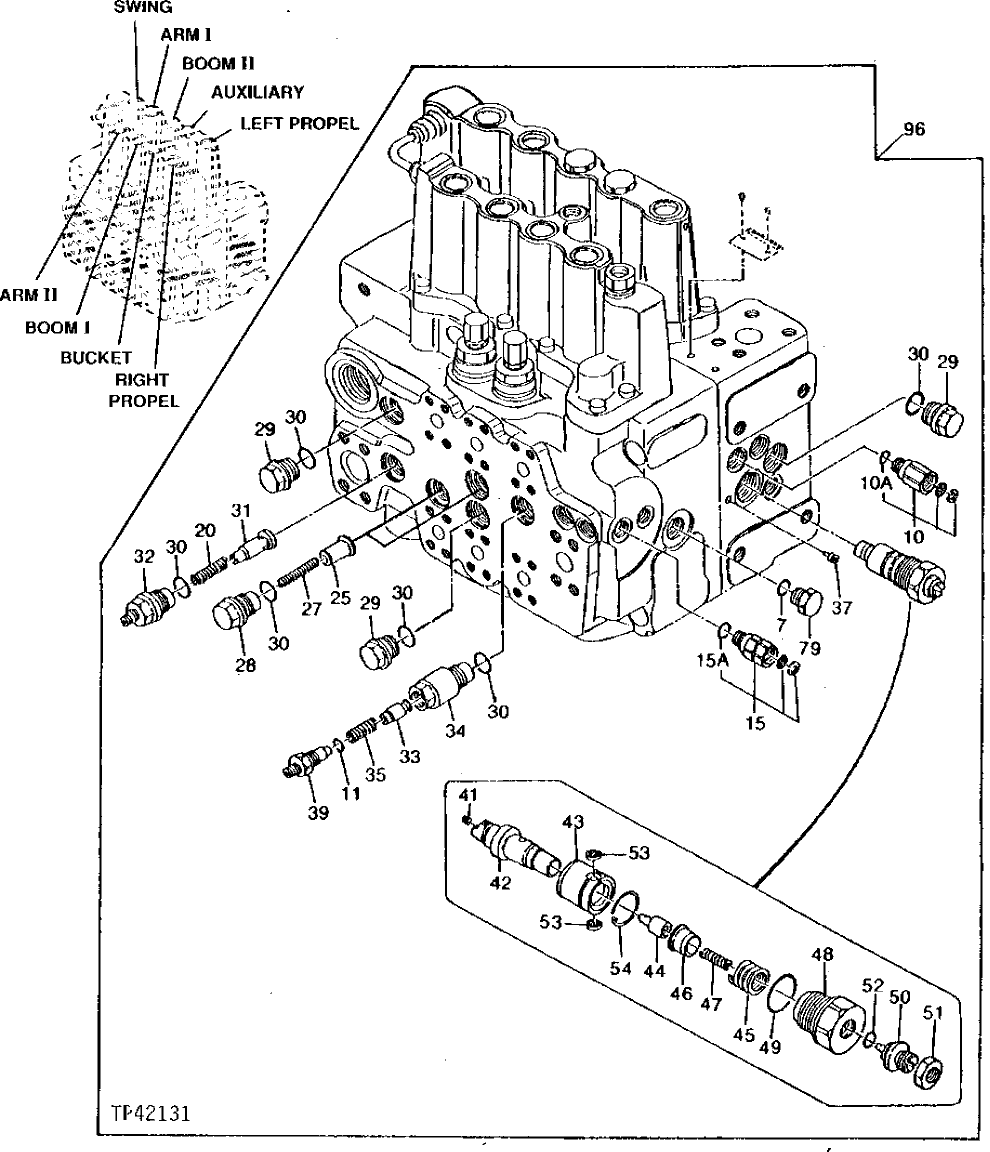

Запчасти John Deere 90D 174 - Main Control Valve 3360 HYDRAULIC SYSTEM

7

CH11570

O-Ring

1шт.

10

9202621

Adapter Fitting

(SUB FOR 0328506, AT128047)

1шт.

10A

M800650

Packing

1шт.

11

M800650

Packing

1шт.

15

0309465

Adapter Fitting

(SUB FOR TH109205)

1шт.

15A

M800650

Packing

1шт.

20

0309413

Spring

(SUB FOR TH109152)

1шт.

25

0309417

Flow Control Hyd. Valve

(SUB FOR TH109156)

2шт.

27

0309419

Spring

(SUB FOR TH109158)

2шт.

28

0309420

Adapter Fitting

(SUB FOR TH109159)

2шт.

29

R27474

Drain Plug

3шт.

30

R47151

O-Ring

7шт.

31

0309423

Flow Control Hyd. Valve

(SUB FOR TH109162)

1шт.

32

0309424

Adapter Fitting

(SUB FOR TH109163)

1шт.

33

0309425

Flow Control Hyd. Valve

(SUB FOR TH109164)

1шт.

34

0328501

Adapter Fitting

(SUB FOR AT128042)

1шт.

35

0309427

Spring

(SUB FOR TH109166)

1шт.

37

Plug

1шт.

39

0309429

Adapter Fitting

(SUB FOR TH109168)

1шт.

41

22M7152

Set Screw

M4 X 4 (SUB FOR TH109169)

1шт.

42

0328502

Flow Control Hyd. Valve

(SUB FOR AT128043)

1шт.

43

2046851

Bushing

(SUB FOR AT128044 OR 0328503)

1шт.

44

0309433

Flow Control Hyd. Valve

(SUB FOR TH109172)

1шт.

45

0309434

Spring

(SUB FOR TH109173)

1шт.

46

0309435

Valve Seat

(SUB FOR TH109174)

1шт.

47

0309436

Spring

(SUB FOR TH109175)

1шт.

48

0309437

Adapter Fitting

(SUB FOR TH109177)

1шт.

49

R56751

O-Ring

(SUB FOR TH100741)

1шт.

50

0309438

Screw

(SUB FOR TH109178)

1шт.

51

2046464

Nut

(SUB FOR TH109179 AND 0309439)

1шт.

52

CH17167

O-Ring

(SUB FOR TH109180)

1шт.

53

0328505

Filter

(SUB FOR AT128046)

2шт.

54

0328504

Snap Ring

(SUB FOR AT128045)

1шт.

79

0218608

Drain Plug

(SUB FOR TH109203 ) (SUB FOR TH110243)

1шт.

96

4229940

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGES) (SUB F OR AT126801 ) (SUB FOR AT186095 AND 4229940EX )

1шт.
