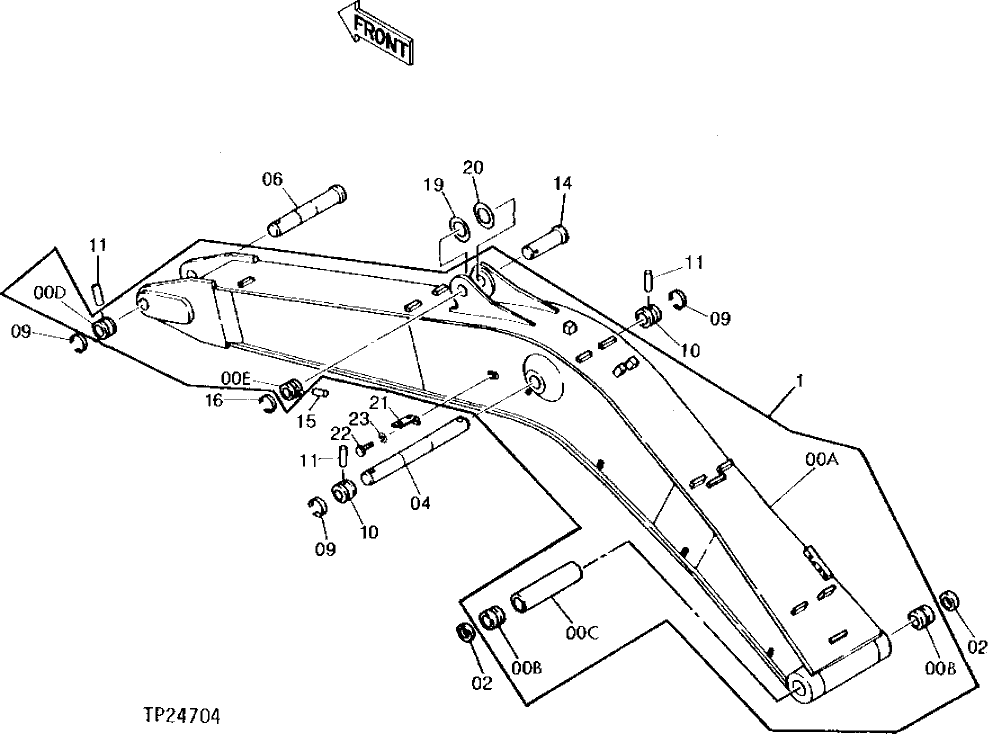

Запчасти John Deere 90D 171 - Boom 3340 BACKHOE AND EXCAVATOR FRAMES

0A

Sideboom

(SUB AP34274)

1шт.

0B

3037285

Bushing

(SUB FOR AT126134)

2шт.

0C

4107836

Spacer

(SUB FOR TH104451)

1шт.

0D

TH104406

Stop

1шт.

0E

T104251

Bushing

1шт.

1

AP34274

Excavator Boom

(CONVENIENCE ASSEMBLY) (SUB FOR AT126951)

1шт.

2

TH102446

Seal

(I.D. 80 MM - O.D. 95 MM)

2шт.

4

AT128316

Pin Fastener

1шт.

6

AT185312

Pin

(SUB FOR AT126128 OR TH104455)

1шт.

9

4098716

Ring

(SUB FOR TH103631)

3шт.

10

TH104406

Stop

2шт.

11

4106307

Pin

20 X 92 mm (SUB FOR TH104411)

3шт.

14

T144753

Pin

70.924 X 228 mm (SUB F OR T104324, FFSB108069)

1шт.

15

4098717

Pin

16 X 93 mm (SUB FOR TH103630)

1шт.

16

4098716

Ring

(SUB FOR TH103631)

1шт.

19

4366692R

Thrust Washer

(SUB FOR TH105593, 4366692 OR AT214030)

1шт.

20

4367410R

Thrust Washer

(SUB FOR TH105592, 4367410 OR AT214040)

1шт.

21

4224631

Angle

(SUB FOR TH111685)

1шт.

22

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

23

12H317

Lock Washer

9/16"

1шт.
