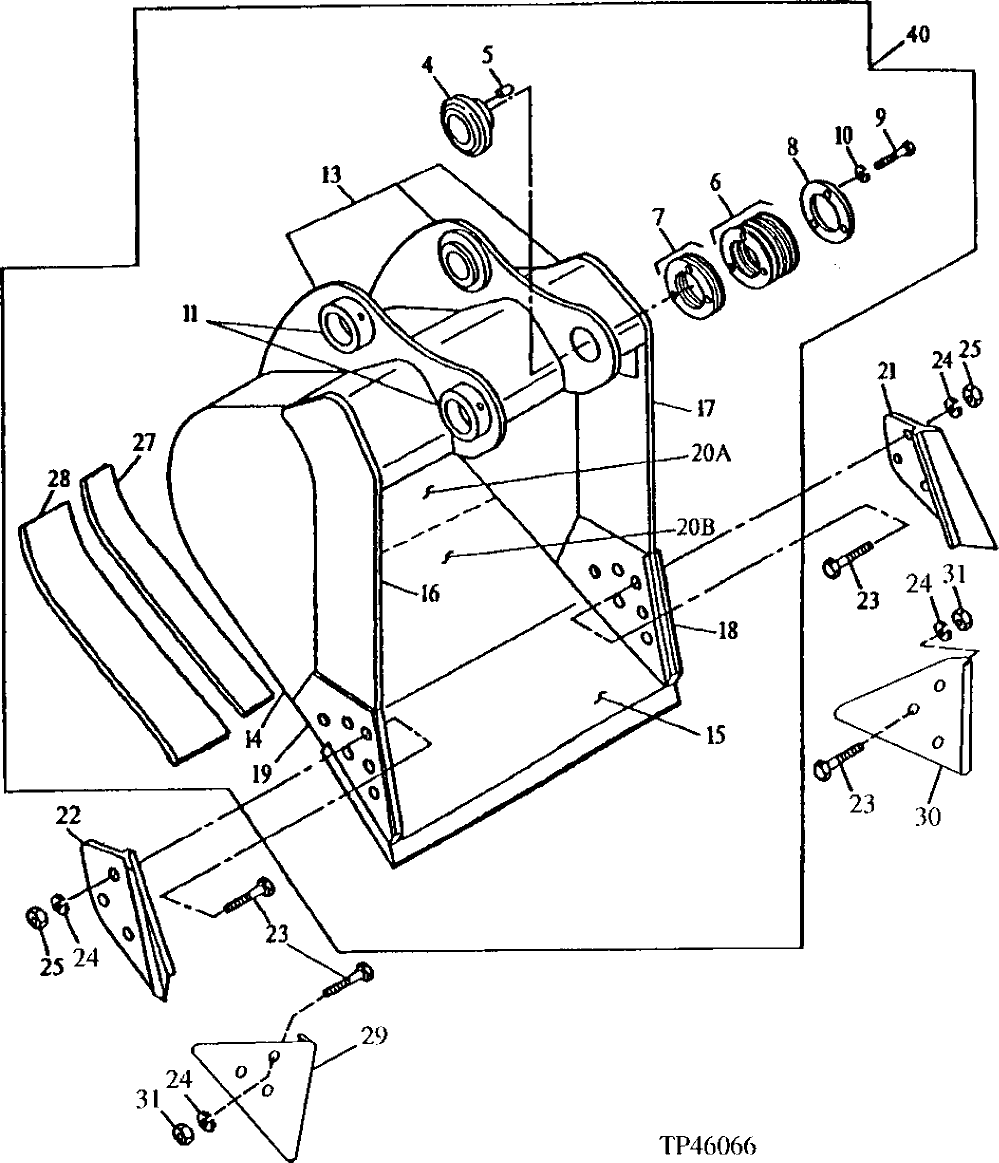

Запчасти John Deere 90D 156 - HEAVY DUTY BUCKET (ORDER TEETH SEPARATELY) 3302 Bucket With Teeth

4

Self-Aligning Bushing

( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

(1 MM)

9шт.

7

TH104513

Shim

(.5 MM)

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

2шт.

13

C607429

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300167

Plate

(A) (RIGHT AND LEFT SIDE)

2шт.

15

AT131082

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300159

Vertical Cutter

(A) (UPPER RIGHT SIDE CUTTER)

1шт.

17

300160

Vertical Cutter

(A) (UPPER LEFT SIDE CUTTER)

1шт.

18

300158

Vertical Cutter

(A) (LEFT SIDE CUTTER INSERT)

1шт.

19

300157

Vertical Cutter

(A) (RIGHT SIDE CUTTER INSERT)

1шт.

20A

600113

Moldboard

(A) (UPPER MOLDBOARD - 24 INCH BUCKET)

1шт.

600114

Moldboard

(A) (UPPER MOLDBOARD - 30 INCH BUCKET)

1шт.

600115

Moldboard

(A) (UPPER MOLDBOARD - 36 INCH BUCKET)

1шт.

20B

600118

Moldboard

(A) (UPPER MOLDBOARD - 24 INCH BUCKET)

1шт.

600119

Moldboard

(A) (UPPER MOLDBOARD - 30 INCH BUCKET)

1шт.

600120

Moldboard

(UPPER MOLDBOARD - 36 INCH BUCKET)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300156

Bar

(A) (INNER WEAR)

1шт.

28

306452

Bar

(A) (OUTER WEAR)

2шт.

29

Shroud

(WEAR SHROUD) (SUB AT167874)

1шт.

30

Shroud

(WEAR SHROUD) (SUB AT167874)

1шт.

31

14H1044

Nut

7/8" (K2)

6шт.

40

Excavator Bucket

(SUB FOR AT131027, AT131147 ) (SUB AT332679)WHOLEGOODS (24 INCH - .59 C UBIC YARD) (AVAILABLE TOOTH ASSEMBLI ES ON SEPARATE PAGE) ( AT163589 NLA)

1шт.

Excavator Bucket

(SUB FOR AT131028, AT131148 ) (SUB AT332680)WHOLEGOODS (30 INCH - .77 C UBIC YARD) (AVAILABLE TOOTH ASSEMBLI ES ON SEPARATE PAGE) ( AT163590 NLA)

1шт.

Excavator Bucket

(SUB FOR AT131029, AT131149 ) (SUB AT332681)WHOLEGOODS (36 INCH - .95 C UBIC YARD) (AVAILABLE TOOTH ASSEMBLI ES ON SEPARATE PAGE) ( AT163591 NLA)

1шт.

Excavator Bucket

(SUB FOR AT160741, AT160742 ) (SUB AT332682)WHOLEGOODS (42 INCH - 1.12 CUBIC YARD) (AVAILABLE TOOTH ASSEMBL IES ON SEPARATE PAGE) ( AT163592 NLA )

1шт.

90

Kit

( AT131080 NLA) (SIDE CUTTER KIT) WHOLEGO ODS (WOODS-CENTRAL FABRICATORS NO. C20338)

1шт.

91

Kit

(AT167874 NLA) (EDGE PROTECTOR KIT) WHOLEG OODS (WOODS-CENTRAL FABRICATORS NO. C28357)

1шт.
