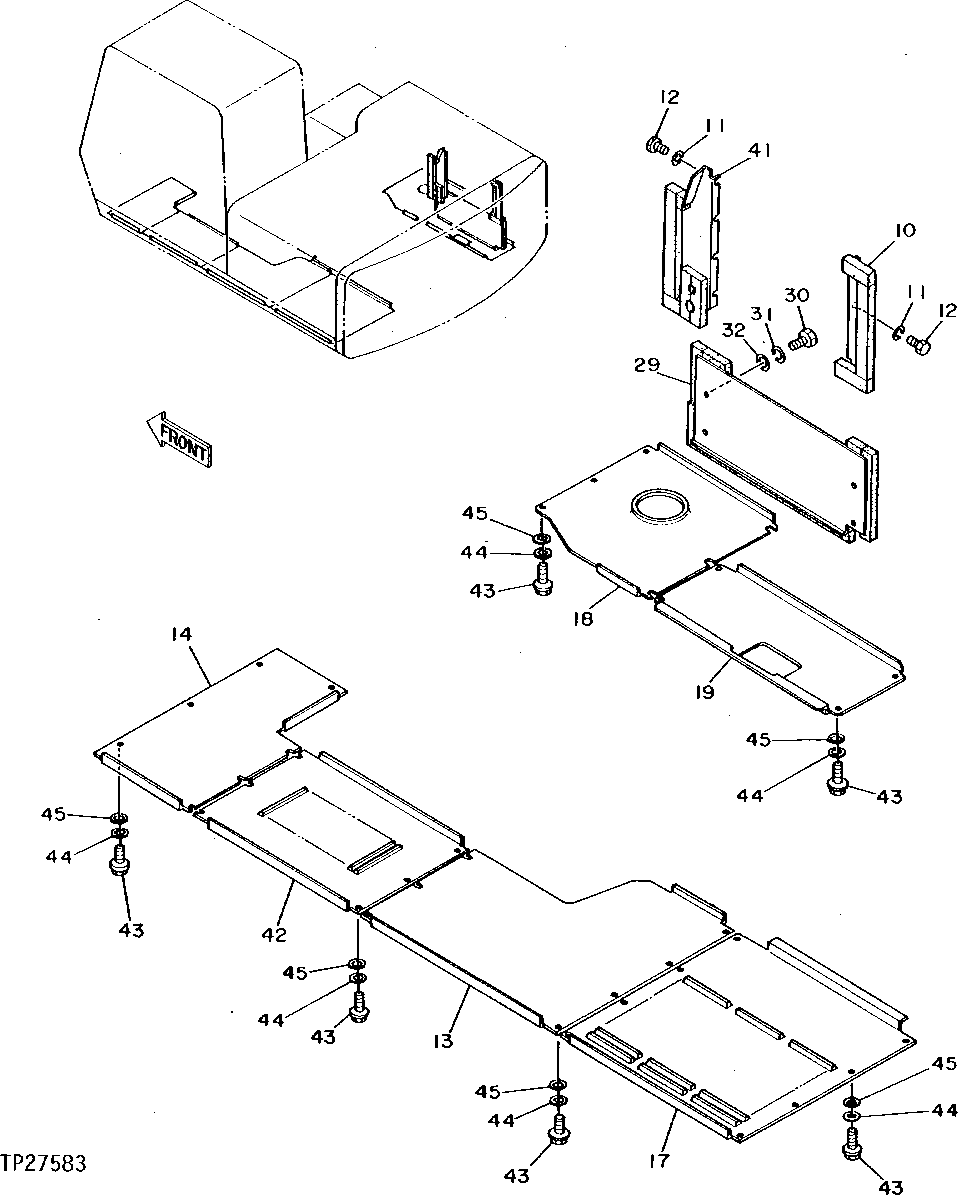

Запчасти John Deere 90D 129 - BOTTOM COVERS AND SERVICE DOOR 1910 Hood Or Engine Enclosure

10

8044223

Cover

(SUB FOR AT127126)

1шт.

11

12M7066

Lock Washer

10 mm

7шт.

12

19M8324

Cap Screw

M10 X 16

7шт.

13

3038101

Cover

(SUB FOR AT126139)

1шт.

14

3036911

Cover

(SUB FOR AT126119)

1шт.

17

3038709

Cover

(SUB FOR TH108783)

1шт.

18

3036912

Cover

(SUB FOR AT126120)

1шт.

19

3045455

Cover

(SUB FOR AT126179)

1шт.

29

8044222

Cover

(SUB FOR AT127125)

1шт.

30

19M8017

Cap Screw

M12 X 20

4шт.

31

12H301

Lock Washer

1/2"

4шт.

32

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

41

8044224

Cover

(SUB FOR AT127127)

1шт.

42

3074111

Cover

(SUB FOR AT126150)

1шт.

43

19M8011

Cap Screw

M12 X 30

38шт.

44

24H1748

Washer

1/2" X 1-1/4" X 0.105"

38шт.

45

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

38шт.
