Запчасти John Deere 90D 127 - ENGINE COMPARTMENT DOORS AND HOOD 1910 Hood Or Engine Enclosure

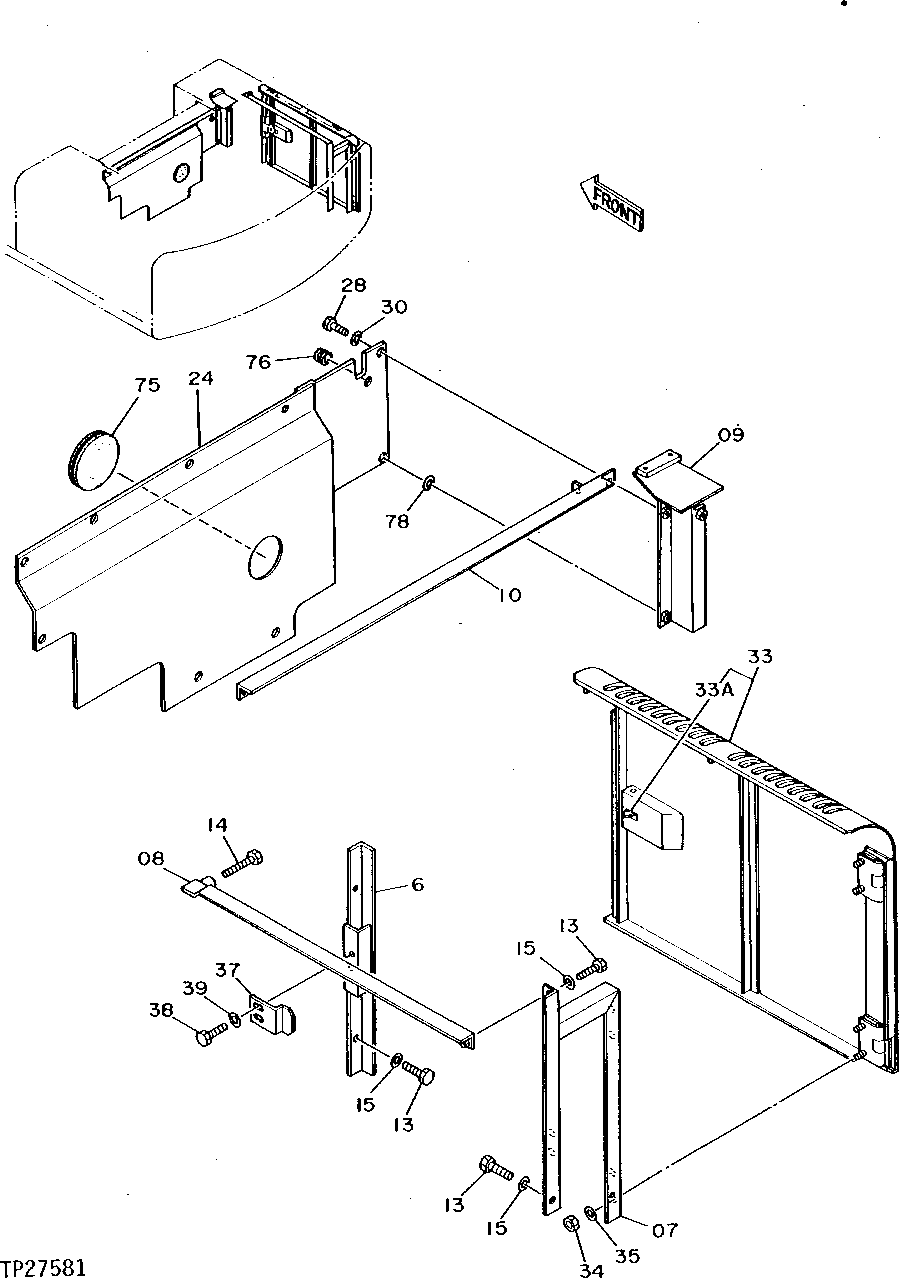

Схема запчастей John Deere 90D - 127 - ENGINE COMPARTMENT DOORS AND HOOD 1910 Hood Or Engine Enclosure

Артикул

Название

Примечание

Количество

6

9728012

Support

(SUB FOR TH108752)

1шт.

7

9732719

Support

(SUB FOR AT128178)

1шт.

8

9727250

Support

(SUB FOR AT127212)

1шт.

9

9732273

Support

(SUB FOR AT127243)

1шт.

10

9732272

Support

(SUB FOR AT127242)

1шт.

13

19M7872

Cap Screw

M12 X 25

7шт.

14

19M7361

Cap Screw

M12 X 50

1шт.

15

24M7047

Washer

13 X 24 X 2.500 mm

7шт.

24

7020711

Cover

(SUB FOR AT126981)

1шт.

28

19M7872

Cap Screw

M12 X 25

9шт.

30

24H1748

Washer

1/2" X 1-1/4" X 0.105"

9шт.

33

7018389

Door

(SUB FOR TH108760)

1шт.

33A

4361763

Lock

(SUB FOR AT115741 ) (SUB FOR AT214010)

1шт.

34

14M7275

Nut

M12

4шт.

35

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

37

4204764

Stop

(SUB FOR TH108761)

1шт.

38

19M7872

Cap Screw

M12 X 25

2шт.

39

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

75

4093813

Plug

(SUB FOR TH110125)

1шт.

76

94-2805

Grommet

(SUB FOR TH110221)

1шт.

78

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

Выбрано товаров: 21
