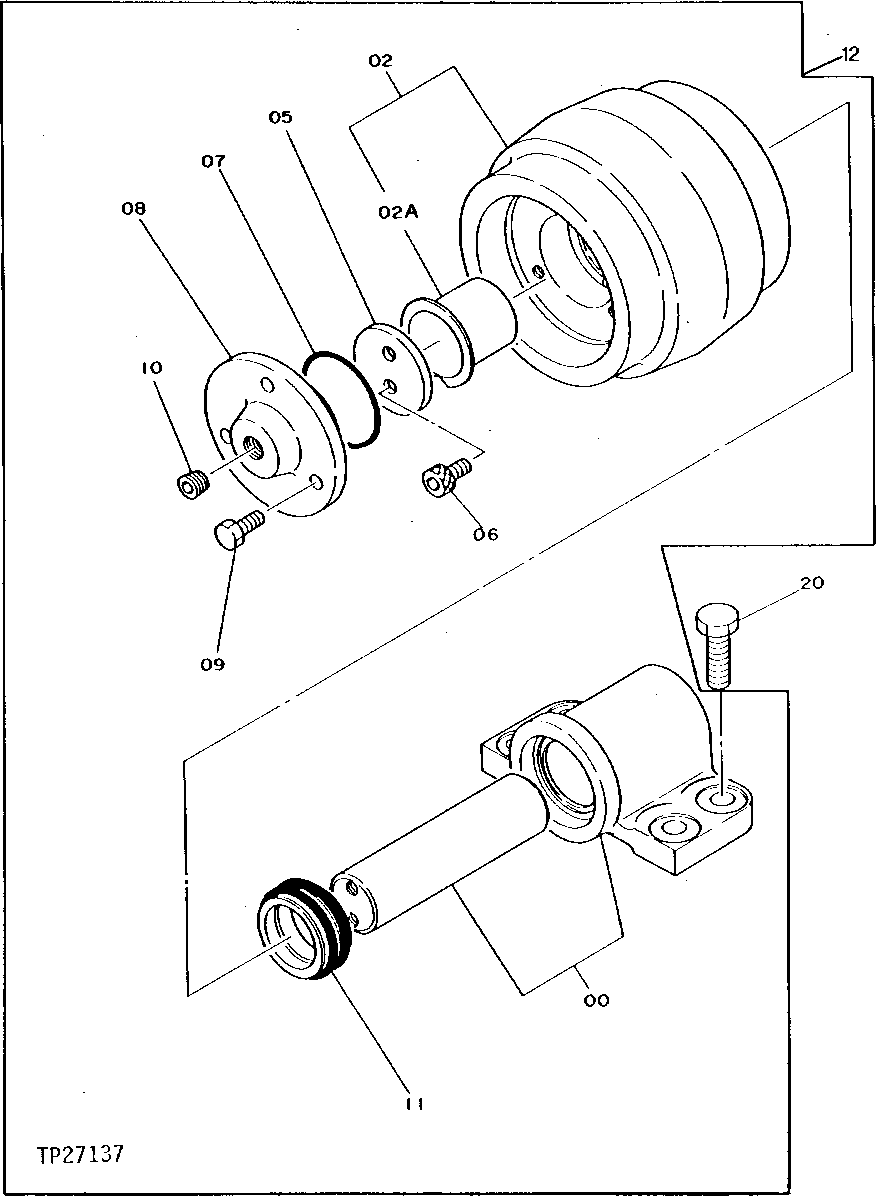

Запчасти John Deere 90D 4 - Upper Roller ( - 002294) 0130 Track Systems

0

Bracket

( AT127175 NO LONGER AVAILABLE)

1шт.

Bracket

(NOT AVAILABLE FOR SERVICE)

1шт.

2

Roller

( AT127172 NO LONGER AVAILABLE)

1шт.

2A

4176382

Bushing

(SUB FOR AT126234)

1шт.

5

Washer

( TH108090 NO LONGER AVAILABLE)

1шт.

T210827

Thrust Washer

(SUB FOR AT131375 OR 4282842)

1шт.

6

TH100454

Screw

M8 X 14 (USE WITH AT127157 ROLLER)

2шт.

M351018

Bolt

M10 X 18 (SUB FOR AT131372 )(USE WITH AT131373 ROLLER)

2шт.

7

CH17154

Packing

1шт.

8

Cover

(USE TH108091 IF AVAILABLE)

1шт.

9

19M8761

Screw

M10 X 22 (SUB FOR AT127980 OR TH100456)

3шт.

10

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

1шт.

11

4317584

Seal

(SUB FOR TH111221 OR TH10 2345 ) (SUB FOR AT213828)

1шт.

12

4S00519

Roller

(SUB FOR AT127157 ) (SUB FOR AT131373 OR 9105749)

4шт.

20

19M7488

Cap Screw

M16 X 40

16шт.
