122 - CAB HEATER PIPINGS (002559 - )

Запчасти John Deere 90D 122 - CAB HEATER PIPINGS (002559 - ) 1830 HEATING AND AIR CONDITIONING

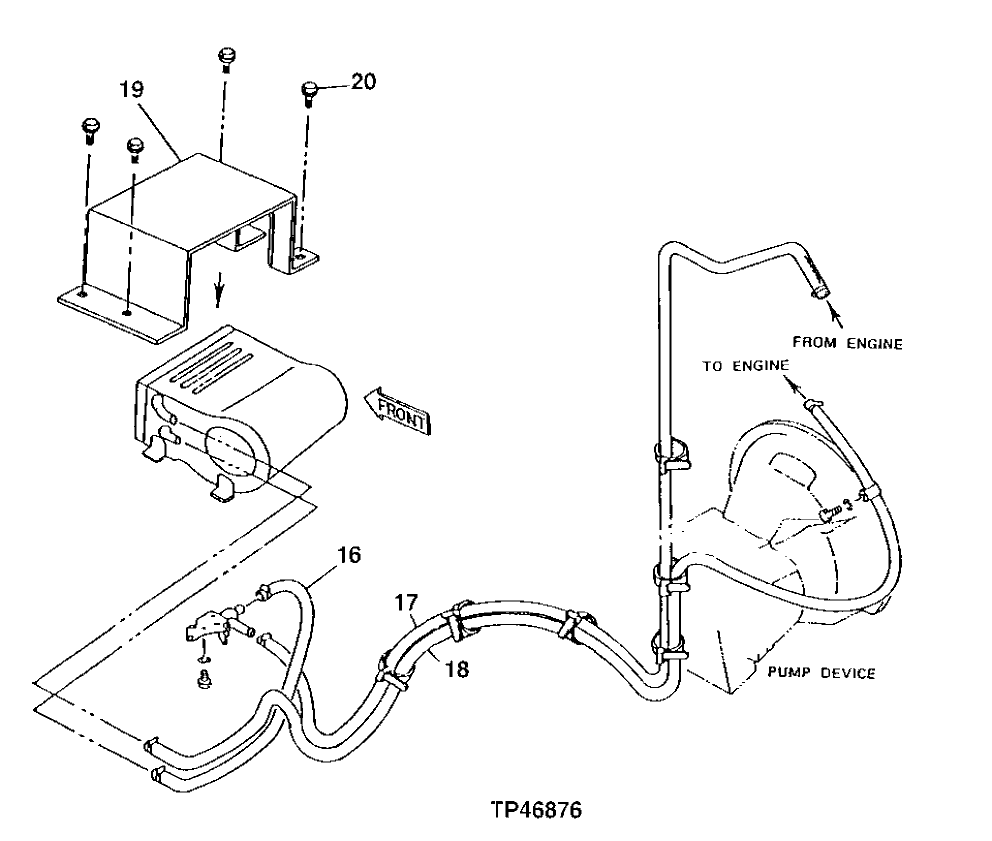

Схема запчастей John Deere 90D - 122 - CAB HEATER PIPINGS (002559 - ) 1830 HEATING AND AIR CONDITIONING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

16

Hose

( AT128082 NOT AVAILABLE) (CUT TO LENGTH FROM TY22326 BULK MATERIAL)

1шт.

17

Hose

( AT173473 NOT AVAILABLE) (CUT TO LENGTH FROM TY22326 BULK MATERIAL)

1шт.

18

Hose

( AT173474 NOT AVAILABLE) (CUT TO LENGTH FROM TY22326 BULK MATERIAL)

1шт.

19

8064004

Cover

(SUB FOR AT173475)

1шт.

20

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.
