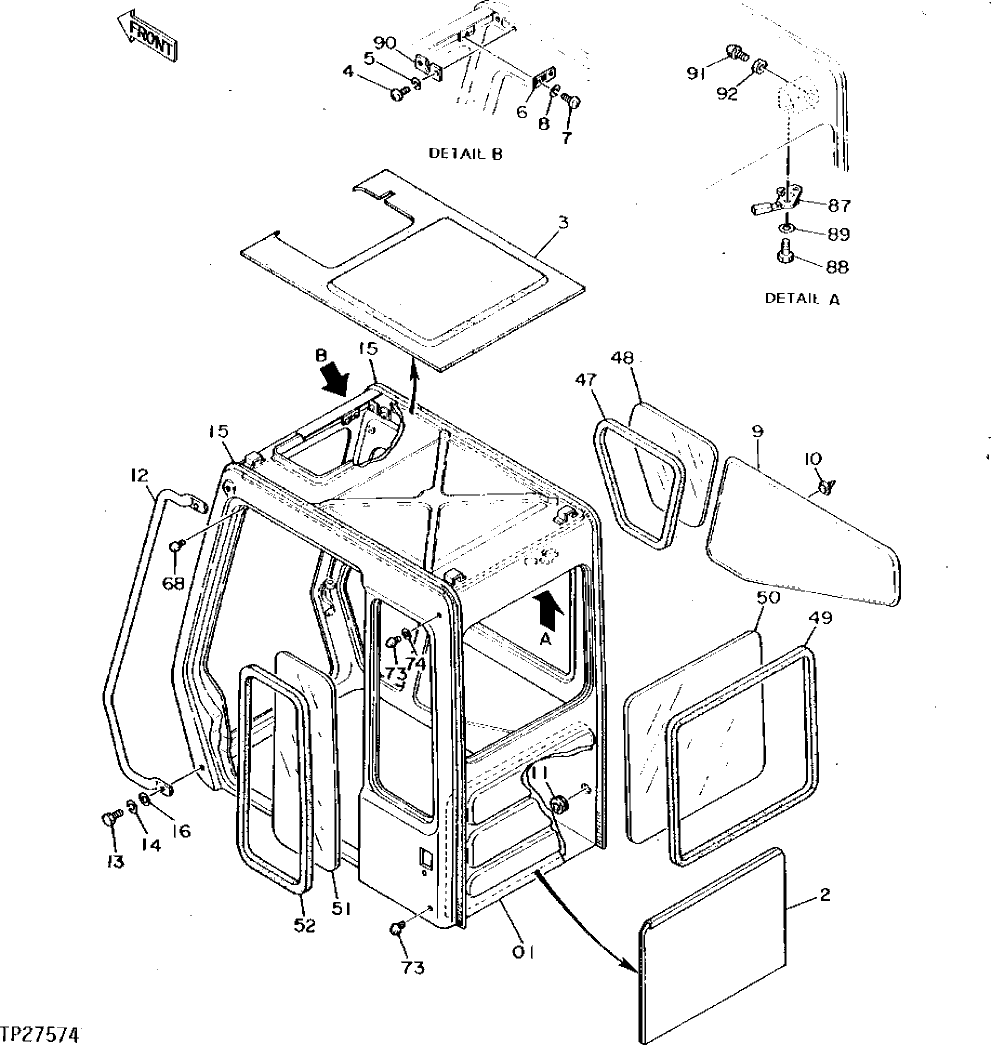

Запчасти John Deere 90D 111 - Cab 1810 Operator Enclosure

1

Cab

(CAB SHELL NOT AVAILABLE FOR SERVI CE) (SUB AT114976 ) (ALSO ORDER AT1 76754, (2) 14M7273 AND (2) 12M7065)

1шт.

2

4251704

Sealing Trim

(SUB FOR AT128327)(USE WI TH TH108621 ORIGINAL CAB)

1шт.

4251706

Sealing Trim

(SUB FOR AT128331)(USE WIT H AT114976 REPLACEMENT CAB)

1шт.

3

4251702

Isolator

(SUB FOR AT128328 OR 4251703)

1шт.

4

21M7396

Screw

M4 X 10

2шт.

5

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

2шт.

6

4204600

Bracket

(SUB FOR TH108683)

1шт.

7

21M7394

Screw

M3 X 10

2шт.

8

12H233

Lock Washer

1/8" (SUB FOR 12M7048)

2шт.

9

4204606

Pad

(SUB FOR TH108689)

1шт.

10

4204607

Clip

(SUB FOR TH108690)

10шт.

11

4473966

Bushing

(SUB FOR TH108691 OR 4204608)

1шт.

12

Handrail

( TH108692 NO LONGER AVAILABLE) (SUB AT128352, ALONG WITH (2) 24M 7239, (2) 19M7662 AND (2) 12M7066 )

1шт.

4248589J

Handrail

(SUB FOR AT128352 OR 4248589)

1шт.

13

19M7402

Cap Screw

M10 X 25 (USE WITH TH108692)

2шт.

19M7662

Cap Screw

M10 X 30 (USE WITH AT128352)

2шт.

14

12M7066

Lock Washer

10 mm

2шт.

15

4204611

Isolator

(SUB FOR TH108694)

2шт.

16

24M7239

Washer

10.700 X 21 X 2.500 mm

2шт.

47

4204571

Isolator

(SUB FOR TH108653)

1шт.

48

TH108654

Windowpane

1шт.

49

4204573

Isolator

(SUB FOR TH108655)

1шт.

50

TH108656

Windowpane

1шт.

51

TH108657

Windowpane

1шт.

52

4204576

Isolator

(SUB FOR TH108658)

1шт.

68

4172321

Bumper

(SUB FOR TH108666)

1шт.

73

4204586

Bumper

(SUB FOR TH108668)

2шт.

74

4204587

Washer

(SUB FOR TH108669)

1шт.

87

4204594

Lock

(SUB FOR TH108677)

1шт.

88

19M7932

Cap Screw

M8 X 16

2шт.

89

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

90

4204599

Shim

(SUB FOR TH108682)

1шт.

91

4204586

Bumper

(SUB FOR TH108668)

1шт.

92

14M7152

Nut

M10 (SUB FOR TH108643)

1шт.

95

Cab

(4196647J NLA)

1шт.
