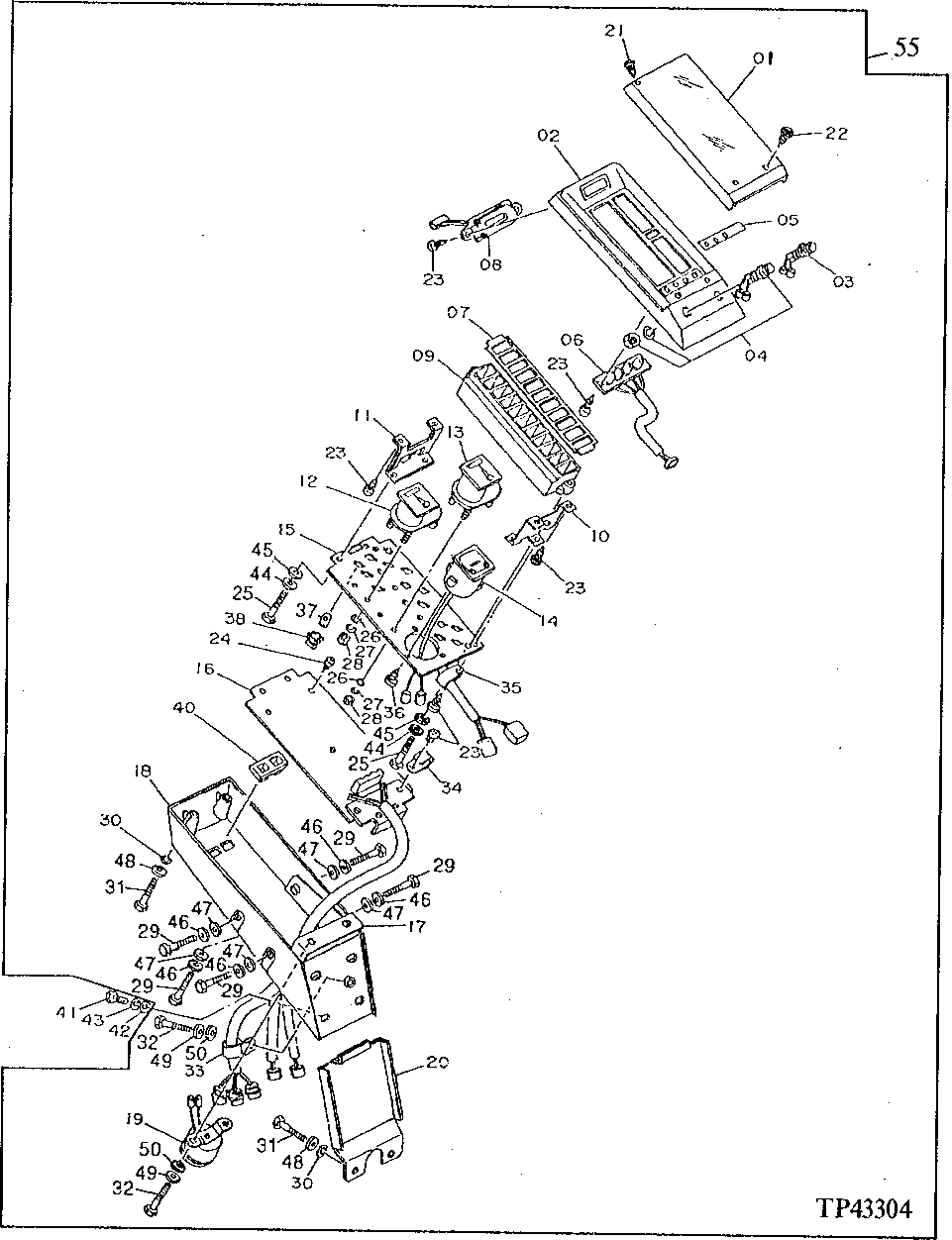

Запчасти John Deere 90D 103 - GAUGE PANEL 1676 Instruments And Indicators

1

Cover

4208843 NLA, SUB FOR TH108514

1шт.

2

4208844

Housing

SUB FOR TH108515

1шт.

3

4208845

Switch

SUB FOR TH108516, BUZZER CANCEL

1шт.

4

4208846

Switch

SUB FOR TH108517, LEVEL CHECK

1шт.

5

4208847

Mask

SUB FOR TH108518, LENS

1шт.

6

4208848

Board

SUB FOR TH108519

1шт.

7

4209958

Lens

SUB FOR TH108520, WARNING

1шт.

8

4208850

Clock

SUB FOR TH108521

1шт.

9

4208851

Housing

SUB FOR TH108522, LAMP

1шт.

10

4208852

Bracket

SUB FOR TH108523

1шт.

11

Bracket

SUB FOR TH108524, 4208853 NSEP

1шт.

12

Temperature Gauge

4208854 NLA, SUB FOR TH108525

1шт.

13

Gauge

4208855 NLA, SUB FOR TH108526, FUEL

1шт.

14

4208856

Hour Meter

SUB FOR TH108527

1шт.

15

4208857

Board

SUB FOR TH108528, DISPLAY

1шт.

16

4208858

Board

SUB FOR TH108529, MONIT OR CONTROL PANEL - LOGIC

1шт.

17

4208859

Bracket

SUB FOR TH108530

1шт.

18

4208860

Housing

SUB FOR TH108531

1шт.

19

4208861

Audible Warning Alarm

SUB FOR TH108532, LOW ENGINE OIL PRESSURE, COOLANT OVERHEAT

1шт.

20

4208862

Cover

SUB FOR TH108533

1шт.

21

4208864

Screw

SUB FOR TH108534, SUB FOR TH108535

2шт.

22

4208864

Screw

SUB FOR TH108535

2шт.

23

37H95

Screw

SUB FOR TH108536

12шт.

24

37M7067

Screw

SUB FOR TH108537

2шт.

25

21M7395

Screw

M4 X 8 SUB FOR 4208867, AL SO ORDER 24M7117 AND 12H315

5шт.

26

4208868

Shim

SUB FOR TH108539

8шт.

27

12H233

Lock Washer

1/8" SUB FOR 12M7048

8шт.

28

14M7030

Nut

M3

8шт.

29

21M7305

Screw

M6 X 12 SUB FOR 4208870, AL SO ORDER 24M7054 AND 12M7006

6шт.

30

24M7117

Washer

4.300 X 9 X 0.800 mm

6шт.

31

21M7396

Screw

M4 X 10 SUB FOR 4208872, ALSO ORDER 12H315

6шт.

32

21M7347

Screw

M5 X 14 SUB FOR 4208873, AL SO ORDER 24M7027 AND 12M7064

3шт.

33

4208874

Clip

SUB FOR TH108544

1шт.

34

4208875

Clip

SUB FOR TH108545

2шт.

35

4208876

Clip

SUB FOR TH108546

1шт.

36

37M7181

Screw

SUB FOR TH108547

3шт.

37

4208878

Bulb

SUB FOR TH108548 OR (15) T67008, SUB FOR TH108548

15шт.

38

4208879

Socket

SUB FOR TH108549

15шт.

40

4252141

Cover

SUB FOR AT128332

1шт.

41

19M7881

Screw

M8 X 20

4шт.

42

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

43

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

44

24M7117

Washer

4.300 X 9 X 0.800 mm

5шт.

45

12H315

Lock Washer

0.164" SUB FOR 12M7063

5шт.

46

24M7054

Washer

6.400 X 12 X 1.600 mm

6шт.

47

12M7006

Lock Washer

6 mm SUB FOR 12M7099

6шт.

48

12H315

Lock Washer

0.164" SUB FOR 12M7063

6шт.

49

24M7027

Washer

5.300 X 10 X 1 mm

3шт.

50

12M7064

Lock Washer

5 mm

3шт.

55

4205438

Gauge

SUB FOR TH108513

1шт.
