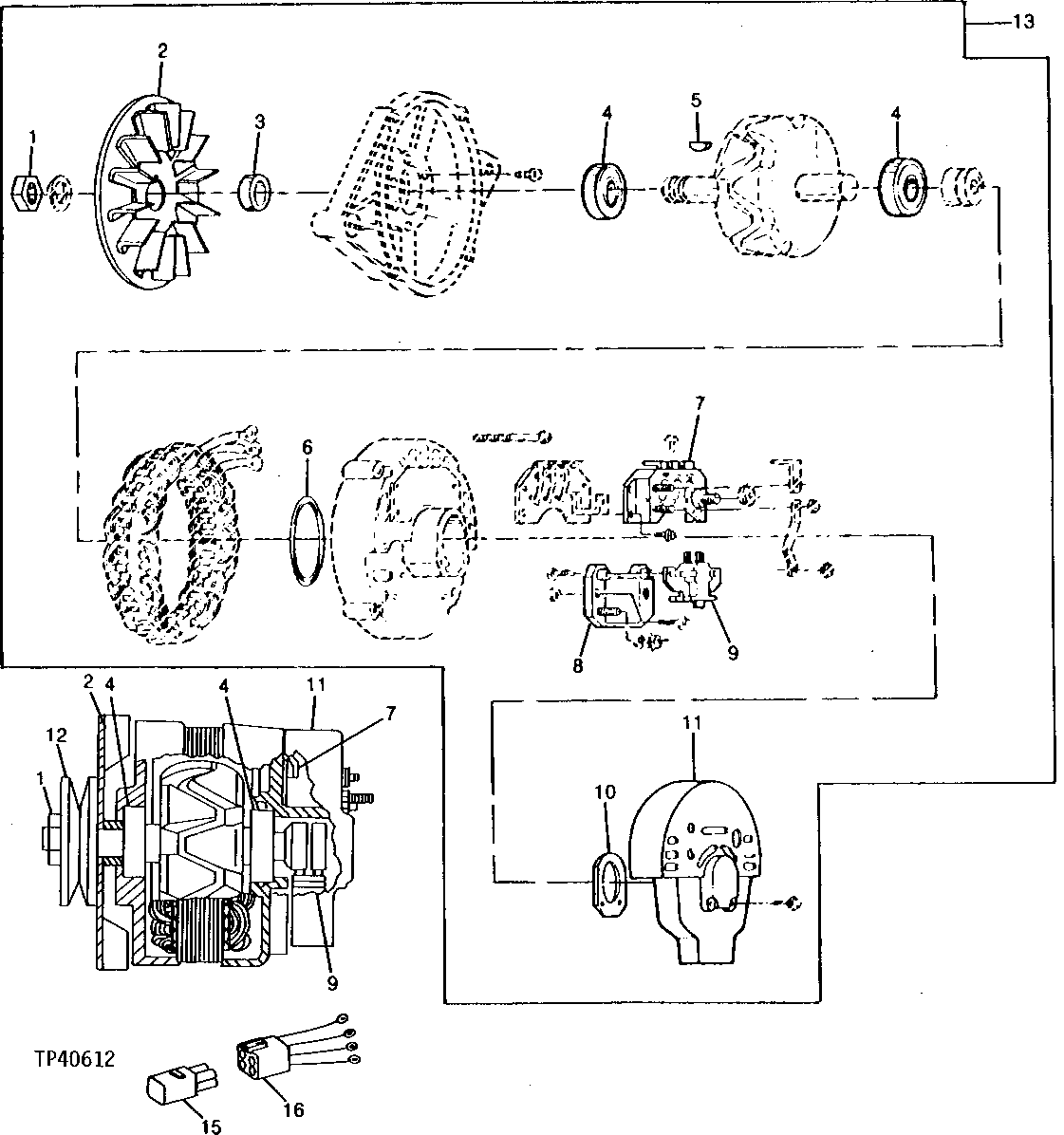

Запчасти John Deere 90D 92 - Alternator And Pulley ( - 319999) 1672 ALTERNATOR, REGULATOR AND CHARGING SYSTEM WIRING

1

Nut

( W36250 NO LONGER AVAILABLE)

1шт.

2

R60492

Fan

1шт.

3

Bushing

( T25343 USE IF AVAILABLE)

1шт.

4

JD9449

Ball Bearing

2шт.

5

26H9

Shaft Key

1/8" X 5/8"

1шт.

6

Ring

( T50860 NO LONGER AVAILABLE)

1шт.

7

AT104092

Rectifier

1шт.

8

AT120668

Regulator

1шт.

9

AT104090

Holder

1шт.

10

Gasket

( T103117 NO LONGER AVAILABLE)

1шт.

11

T103118

Cover

1шт.

12

T24474

Pulley

1шт.

13

TY6680

Alternator

(24 VOLT - 42 AMPHERE) (REMANUFACTUR ED) NLA (ORDER SE501369) (SUB FOR AT11 5049 MOTOROLA) (SUB FOR AT125430 PREST OLITE, ALONG WITH AT142345 AND T138822 )

1шт.

SE501369

Alternator

(REMAN FOR TY6680 OR AT115049 OR AT125430)

1шт.

15

T138822

Electrical Connector Assy

(USE WITH PRESTOLITE ALTERNATOR)

1шт.

16

AT142345

Wiring Harness

(USE WITH PRESTOLITE ALTERNATOR)

1шт.
