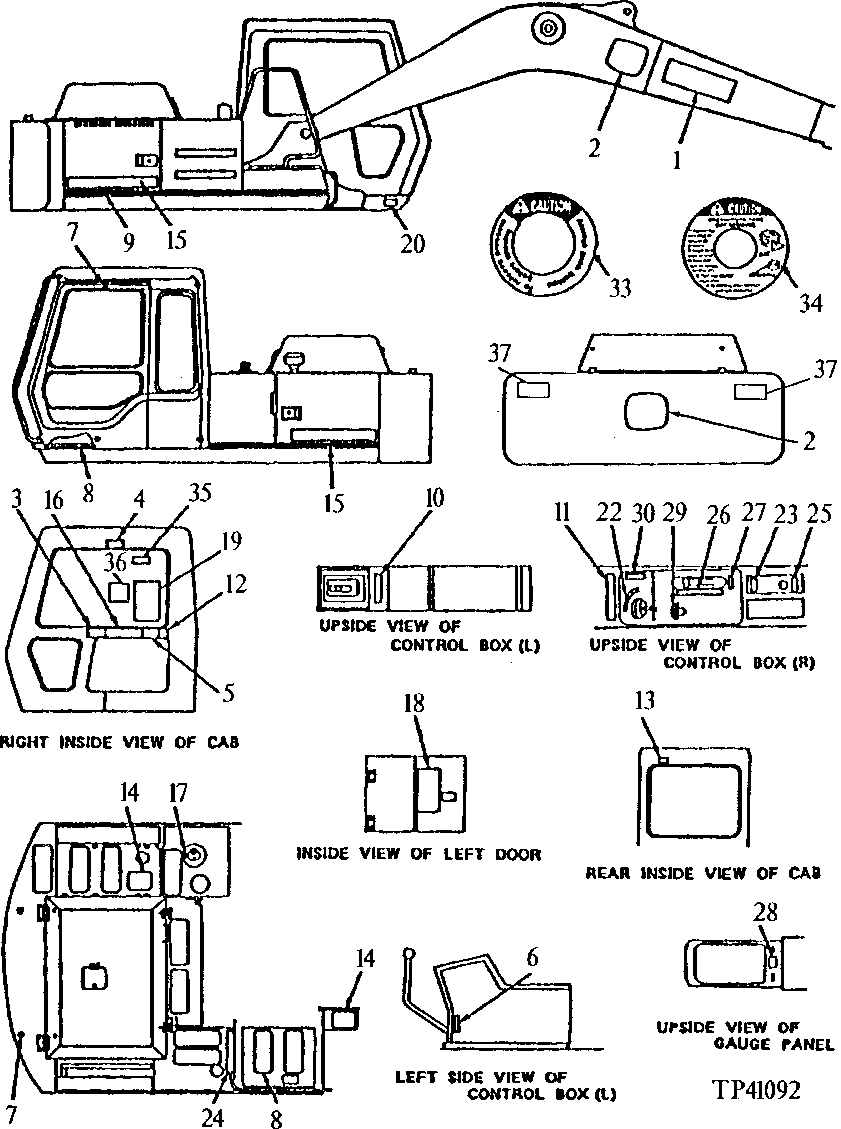

Запчасти John Deere 90D 83 - Labels and Decals ( - 001955) 1320 LABELS AND DECALS

17

P63448

Label

(K) (SUB FOR T108113 O R AT155733)(BLEED PUMP)

1шт.

T114803

Label

(K2) (BLEED PUMP - FRENCH)

1шт.

T153403

Label

(K3) (BLEED PUMP - SPANISH)

1шт.

18

2028255

Label

(K) (SUB FOR T121720)(LUBRIC ATION - PERIODIC MAINTENANCE)

1шт.

T153598

Label

(K2) (LUBRICATION - PERIO DIC MAINTENANCE - FRENCH)

1шт.

T153601

Label

(K3) (LUBRICATION - PERIO DIC MAINTENANCE - SPANISH)

1шт.

19

2028142

Label

(SUB FOR T121721)(LIFTING CAPACITY)

1шт.

T153599

Label

(K2) (LIFTING CAPACITY - FRENCH)

1шт.

T153602

Label

(K3) (LIFTING CAPACITY - SPANISH)

1шт.

20

37H131

Screw

0.140" X 3/8"

2шт.

21

2025748

Label

(SUB FOR AT115040)(VANDAL COVERS) ( NOT ILLUSTRATED ON THIS PAGE) (SEE S EPARATE PAGE FOR SPECIFIC LOCATIONS)

1шт.

T153481

Label

(K2) (VANDAL COVERS - F RENCH) (NOT ILLUSTRATED)

1шт.

T153505

Label

(K3) (VANDAL COVERS - SP ANISH) (NOT ILLUSTRATED)

1шт.

22

4210026

Label

(SUB FOR T120640)(IGNITION)

1шт.

23

Label

( 4210039 NLA) (SUB FOR TH111033)(ENGINE STOP)

1шт.

T153475

Label

(K2) (ENGINE STOP - FRENCH)

1шт.

T153499

Label

(K3) (ENGINE STOP - SPANISH)

1шт.

24

H21259

Mat

(SUB FOR TH110224)

1шт.

25

4210040

Label

(SUB FOR T114455)(STARTING AID)

1шт.

T153474

Label

(K2) (STARTING AID - FRENCH)

1шт.

T153497

Label

(K3) (STARTING AID - SPANISH)

1шт.

26

4146722

Label

(SUB FOR TH100596)(THROTTLE)

1шт.

27

4172040

Label

(SUB FOR T114454)(THROTTLE)

1шт.

T153473

Label

(K2) (THROTTLE - FRENCH)

1шт.

T153496

Label

(K3) (THROTTLE - SPANISH)

1шт.

28

4211092

Label

(SUB FOR TH110230)(CHECK-BUZZER)

1шт.

T153479

Label

(K2) (CHECK-BUZZER - FRENCH)

1шт.

T153503

Label

(K3) (CHECK-BUZZER - SPANISH)

1шт.

29

T108168

Label

(MODE SWITCH)

1шт.

30

T108112

Label

(PROPEL SPEED)

1шт.

T153597

Label

(K2) (PROPEL SPEED - FRENCH)

1шт.

T153600

Label

(K3) (PROPEL SPEED - SPANISH)

1шт.

33

T147009

Label

(K) (SUB FOR T108183)(RESERVOIR COVER)

1шт.

T153467

Label

(K2) (RESERVOIR COVER - FRENCH)

1шт.

T153490

Label

(K3) (RESERVOIR COVER - SPANISH)

1шт.

34

T146671

Safety Sign

(K) (SUB FOR T114488)(RADIATOR CAP)

1шт.

T153424

Label

(K2) (RADIATOR CAP - FRENCH)

1шт.

T153396

Safety Sign

(K3) (RADIATOR CAP - SPANISH)

1шт.

35

AT131150

Label

(WARNING - REDUCED LIFT CAPACITIES)

1шт.

Safety Sign

(WARNING - REDUCED LIFT CAPACITIES - FRENCH) ( T153540 NO LONGER AVAILABLE)

1шт.

Safety Sign

(WARNING - REDUCED LIFT CAPACITIES - S PANISH) ( T153542 NO LONGER AVAILABLE)

1шт.

36

AT131226

Label

(THUMB CONTROL, FOOT - FOR ROAD BUILDER UNIT)

1шт.

AT131227

Label

(THUMB CONTROL, HAND - FOR ROAD BUILDER UNIT)

1шт.

37

T145893

Safety Sign

(SUB FOR T114398)(STAY CLEAR)

2шт.

T153426

Label

(K2) (STAY CLEAR - FRENCH)

1шт.

T153399

Label

(K3) (STAY CLEAR - SPANISH)

1шт.

38

T79632

Label

(DIESEL ONLY)

1шт.

T114681

Label

(K2) (DIESEL ONLY - FRENCH)

1шт.

T127575

Label

(K3) (DIESEL ONLY - SPANISH)

1шт.

Kit

( AT130850 NLA) (REPAINT KI T INCLUDES PARTS MARKED (K))

1шт.
