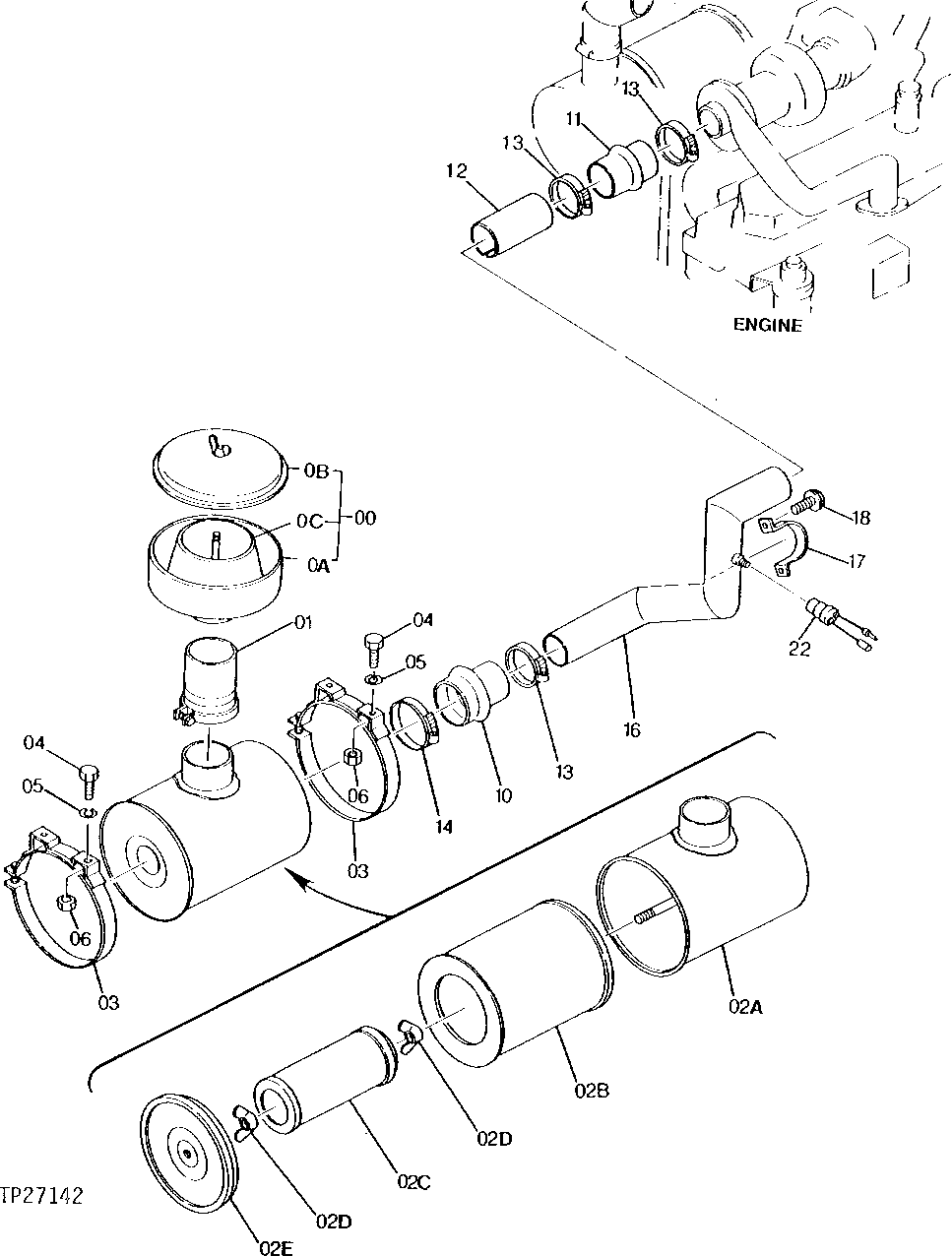

Запчасти John Deere 90D 80 - Air Intake System 0520 Intake System

0

AT27822

Precleaner

1шт.

0A

R28795

Dust Bowl

1шт.

0B

AR1729R

Cover

1шт.

0C

Base

( AH61828 - USE IF AVAILABLE)

1шт.

1

AH81443

Air Intake Stack

1шт.

2A

Base

( 4158654 NLA) (SUB FOR TH100917)

1шт.

2B

AT39124

Filter Element

1шт.

2C

AT31227

Filter Element

1шт.

2D

AH20849

Wing Nut

2шт.

2E

AT71475

Cover

1шт.

3

AR35435

Clamp

2шт.

4

19M7938

Cap Screw

M10 X 20

4шт.

5

12M7066

Lock Washer

10 mm

4шт.

6

14M7274

Nut

M10

4шт.

10

4155756

Suction Hose

(SUB FOR TH100926)

1шт.

11

TY25155

Hose

(SUB FOR TH100927 AND 4014035)(CUT TO LENGTH)

1шт.

12

4162337

Insulator

(SUB FOR TH101607)

1шт.

13

AT37476

Hose Clamp

3шт.

14

AT37477

Hose Clamp

1шт.

16

8044107

Line

(SUB FOR AT127122)

1шт.

17

4000909

Clamp

(SUB FOR TH101935)

1шт.

18

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

22

4224238

Indicator

(SUB FOR TH108915 ) (SUB FOR AT131922)

1шт.
