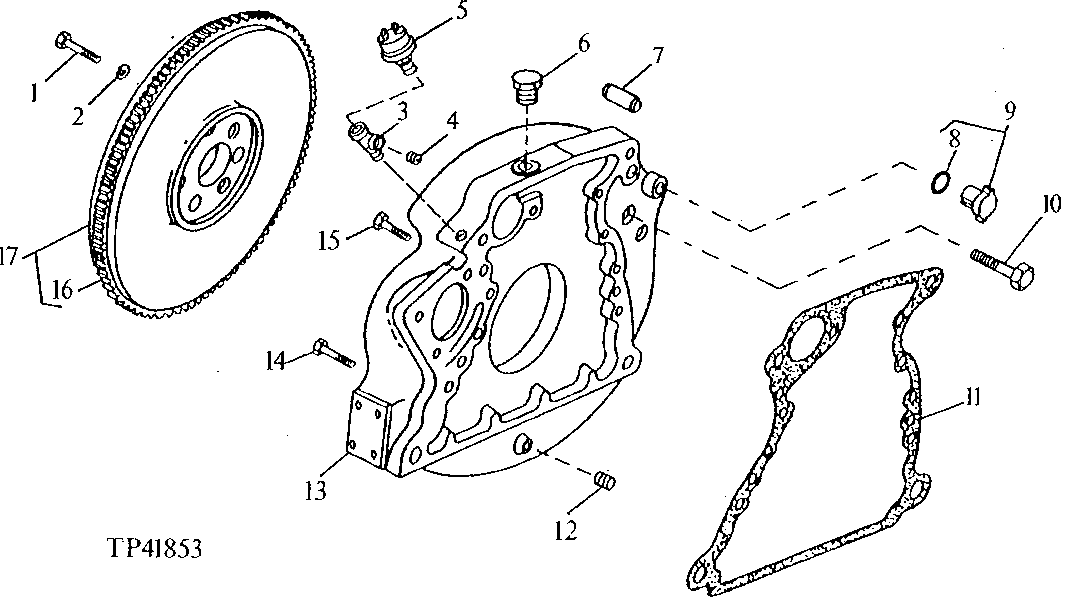

Запчасти John Deere 90D 70 - FLYWHEEL AND FLYWHEEL HOUSING 0433 FLYWHEEL, HOUSING AND FASTENINGS 4045TT008, 4276TT021 4045TT008, 4276TT021

1

19H2993

Cap Screw

1/2" X 1-1/2"

4шт.

2

T23891

Washer

13.487 X 20.625 X 1.524 mm

4шт.

3

R70752

Tee Fitting

3.175 mm (ENGINE HOUR METER)

1шт.

4

R104592

Pipe Plug

1шт.

5

AT157548

Switch

(SUB FOR AT157548)(ENGINE HOUR METER)

1шт.

37H90

Screw

0.164" X 5/16" (NOT SHOWN)

2шт.

6

T22867

Drain Plug

(SUB FOR R39112)

1шт.

7

R48685

Dowel Pin

2шт.

8

R27149

O-Ring

23.393 X 3.531 mm

1шт.

9

AR61533

Plug

1шт.

10

19H2351

Cap Screw

1/2" X 1/2"

1шт.

11

R515021

Gasket

(SUB FOR R70483 AND R97351)

1шт.

12

RE57836

Pipe Plug

12.700 mm (SUB FOR 15H561)

1шт.

13

R120586

Housing

(SUB FOR R79635, R110188 OR R101113 ) (ALSO ORDER R39112)

1шт.

14

19H1847

Cap Screw

5/8" X 2-1/2"

4шт.

15

19H3219

Cap Screw

3/8" X 1-3/8"

8шт.

16

R28811

Ring Gear

(129 TEETH)

1шт.

17

RE500511

Flywheel

(MARKED R122406)(SUB FOR RE24281, MARK ED R84485) (SUB FOR RE46293, MARKED R10 9008) (SUB FOR RE58571, MARKED R122406)

1шт.
