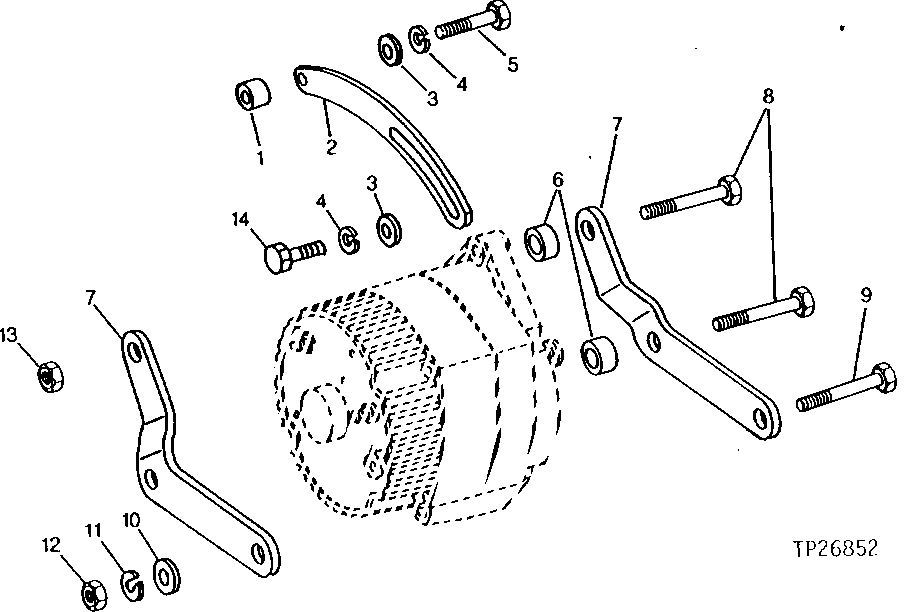

Запчасти John Deere 90D 68 - ALTERNATOR MOUNTING BRACKETS 0423 ALTERNATOR AND GENERATOR MOUNTING 4045TT008, 4276TT021 4045TT008, 4276TT021

1

28H1518

Washer

0.493" X 0.675" X 5/16" PIPE

1шт.

2

R108404

Strap

(SUB FOR T20204 OR R107734)

1шт.

3

24H1621

Washer

11/32" X 1" X 0.220"

2шт.

4

12H304

Lock Washer

3/8"

2шт.

5

19H3751

Screw

3/8" X 1-3/8"

1шт.

6

28H862

Spacer

0.423" X 0.675" X 7/16" PIPE

2шт.

7

R57260

Bracket

2шт.

8

19H3743

Screw

3/8" X 2-7/8"

2шт.

24M7106

Washer

10 X 18 X 2.500 mm (NOT ILLUSTRATED)

ARшт.

9

19M8197

Cap Screw

M10 X 85

1шт.

10

24H1822

Washer

11/32" X 7/8" X 1/16"

ARшт.

11

12M7066

Lock Washer

10 mm

1шт.

12

14M7274

Nut

M10

1шт.

13

N10215

Lock Nut

9.525 mm (SUB FOR 14H1 076, THIS APPLICATION)

2шт.

14

19M7513

Cap Screw

M8 X 30 (SUB FOR 19M7288)

1шт.
