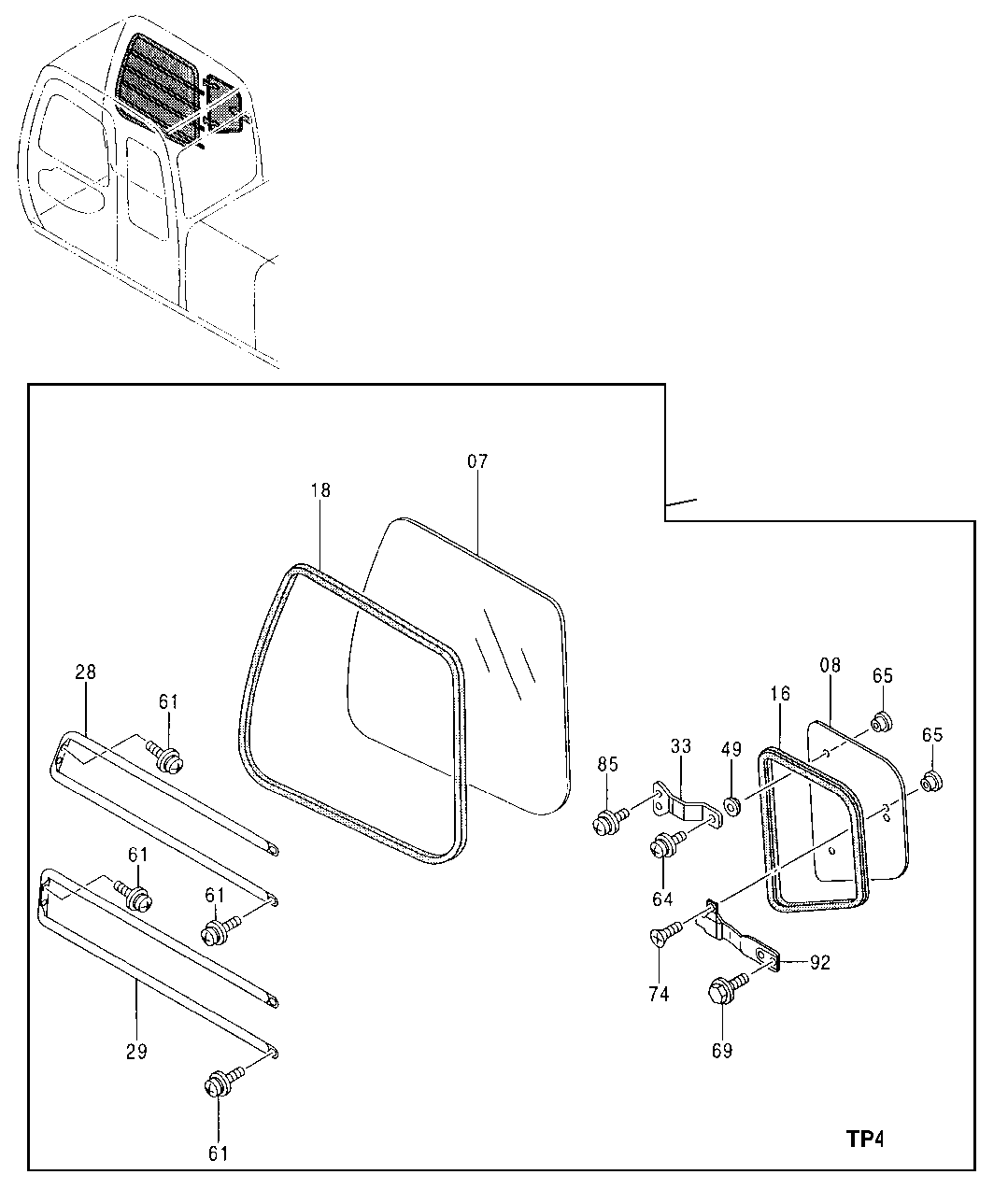

Запчасти John Deere 50LC 68 - Top Window 1810 Operator Enclosure

0

9193328

Cab

(SUB FOR TH9193328) Contains All Ite ms On This Page Additional Components Listed On Previous and Following Pages

1шт.

7

AT214163

Windowpane

1шт.

8

AT214167

Windowpane

1шт.

16

4369669

Weatherstrip

(SUB FOR AT214168)

1шт.

18

4369665

Weatherstrip

(SUB FOR AT214164)

1шт.

28

4369666

Guard

(SUB FOR AT214165)

1шт.

29

4369667

Guard

(SUB FOR AT214166)

1шт.

33

4369670

Bracket

(SUB FOR AT214169)

2шт.

49

4369671

Bushing

(SUB FOR AT214170)

2шт.

61

4372212

Screw With Washer

(SUB FOR AT214299)

8шт.

64

21M7271

Screw

M5 X 16 (SUB FOR 21M6070)

2шт.

24M7348

Washer

5.500 X 10 X 1 mm

2шт.

12M7064

Lock Washer

5 mm

2шт.

65

4369674

Bushing

(SUB FOR AT214172)

4шт.

69

4372223

Screw With Washer

(SUB FOR AT214309)

2шт.

74

4372213

Screw

(SUB FOR AT214300)

2шт.

85

21M7246

Screw

M6 X 16

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

92

4369672

Lock

(SUB FOR AT214171)

1шт.
