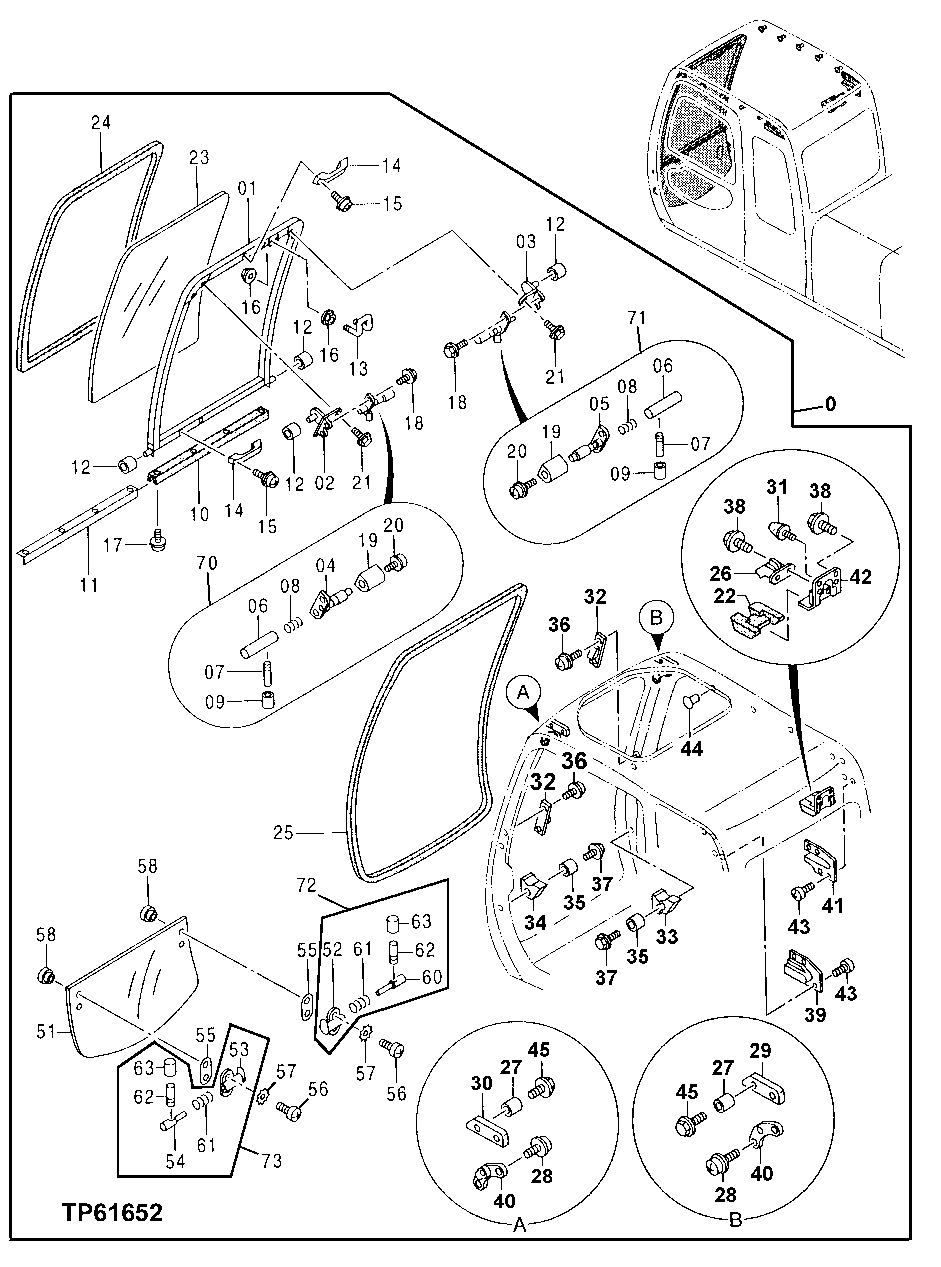

Запчасти John Deere 50LC 66 - Cab Components 1810 Operator Enclosure

0

9193328

Cab

SUB FOR TH9193328 Contains All Items On This Page Additional Components L isted On Previous and Following Pages

1шт.

1

4369596

Frame

SUB FOR AT214102

1шт.

2

4369604

Bracket

SUB FOR AT214108

1шт.

3

4369603

Bracket

SUB FOR AT214107

1шт.

4

FYA00045084

Retainer

SUB FOR 4369602 AND AT214106

1шт.

5

4369598

Retainer

SUB FOR AT214103

1шт.

6

4403327

Universal Driveshaft

SUB FOR AT214104, 4369599

2шт.

7

4295480

Lever

SUB FOR AT156993

2шт.

8

494918

Spring

SUB FOR TH106783

2шт.

9

4295876

Cover

SUB FOR AT156994

2шт.

10

4369607

Isolator

SUB FOR AT214111

1шт.

11

4369608

Channel

SUB FOR AT214112

1шт.

12

4369606

Bushing

SUB FOR AT214110

4шт.

13

4369605

Striker

SUB FOR AT214109

1шт.

14

4204579

Handle

SUB FOR TH108661

2шт.

15

19M8425

Cap Screw

M6 X 16

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

16

4414857

Nut

SUB FOR AT157068

4шт.

17

4372214

Screw

SUB FOR AT214301

4шт.

18

4372225

Screw With Washer

SUB FOR AT214311

4шт.

19

4456227

Cover

SUB FOR 4369600 AND AT214105

2шт.

20

J680514

Screw With Washer

SUB FOR AT213610

2шт.

21

Screw With Washer

SUB FOR AT214312, 4377824 NLA

4шт.

19M8011

Cap Screw

M12 X 30

4шт.

24M7128

Washer

12.500 X 24 X 2.500 mm

4шт.

12H301

Lock Washer

1/2"

4шт.

22

4369563

Cover

SUB FOR AT214073

1шт.

23

AT214113

Windowpane

1шт.

24

4369610

Weatherstrip

SUB FOR AT214114

1шт.

25

4369586

Weatherstrip

SUB FOR AT214096

1шт.

26

4369562

Latch

FOR AT214072

1шт.

27

4369582

Bushing

SUB FOR AT214092

4шт.

28

4372210

Screw With Washer

SUB FOR AT214297

4шт.

29

4369580

Stop

SUB FOR AT214090

1шт.

30

4369581

Stop

SUB FOR AT214091

1шт.
