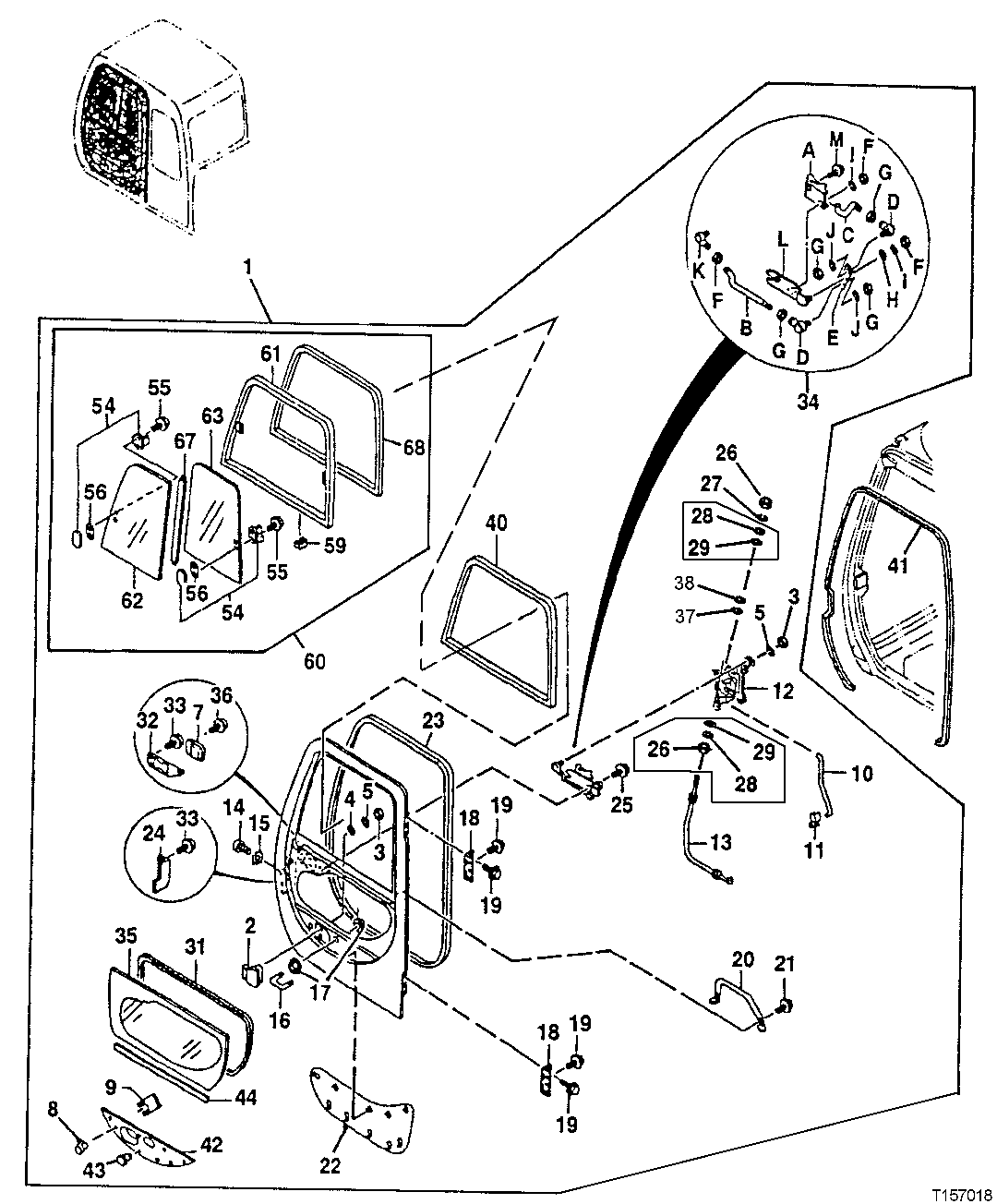

Запчасти John Deere 50LC 64 - Cab Components (Door) 1810 Operator Enclosure

0

9193328

Cab

(SUB FOR TH9193328) Not Illustrated Conta ins All Items On This Page Additional Compo nents Listed On Previous and Following Page s

1шт.

1

Door

( 4385735 NLA) (SUB FOR TH4414332 OR 4385735J)

1шт.

2

4369645

Handle

(SUB FOR AT214145)

1шт.

3

14M7272

Nut

M6

3шт.

4

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

5

12M7006

Lock Washer

6 mm

3шт.

7

4369633

Cover

(SUB FOR AT214133)

1шт.

8

4362135

Lock

(SUB FOR AT176789)

1шт.

AT194969

Key

(SUB FOR AT147803) (H800) Not Illustrated

1шт.

9

4372091

Clip

(SUB FOR AT214290)

1шт.

10

4369643

Rod

(SUB FOR AT214143)

1шт.

11

4372092

Retainer

(SUB FOR AT214291)

1шт.

12

4369631

Lock

(SUB FOR AT214131)

1шт.

13

Cable

( 4369642 NLA) FURNISH 4458077 AL ONG WITH 4458079, 4455981, (3) 438 2885, 4458080) (SUB FOR AT214142)

1шт.

4458077

Cable

1шт.

14

4382885

Bolt

(SUB FOR AT213624, M470625)

3шт.

15

12M7081

Lock Washer

6.400 mm (SUB FOR AT214314 OR 4372560)

3шт.

16

4369661

U-Bolt

(SUB FOR AT214160)

1шт.

17

4414857

Nut

(SUB FOR AT157068)

4шт.

18

4369648

Hinge

(SUB FOR AT214148)

2шт.

19

R168831

Cap Screw

(SUB FOR AT214313, 4372261 OR 4356695)

12шт.

24M7271

Washer

10.500 X 20 X 2 mm

12шт.

20

4369646

Handrail

(SUB FOR AT214146)

1шт.

21

4372225

Screw With Washer

(SUB FOR AT214311)

2шт.

22

4369647

Cover

(SUB FOR AT214147)

1шт.

23

4369662

Weatherstrip

(SUB FOR AT214161)

1шт.

24

4369632

Cover

(SUB FOR AT214132)

1шт.

25

21M7246

Screw

M6 X 16

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

26

14M7297

Nut

M5

2шт.

14M7297

Nut

M5

1шт.

27

12M7064

Lock Washer

5 mm

1шт.

28

24M7027

Washer

5.300 X 10 X 1 mm

2шт.

29

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

30

4458080

Seal

Not Illustrated

1шт.

31

4400087

Seal

(SUB FOR AT218141)

1шт.

32

4369644

Cover

(SUB FOR AT214144)

1шт.

33

J680510

Screw With Washer

(SUB FOR AT213609)

5шт.
