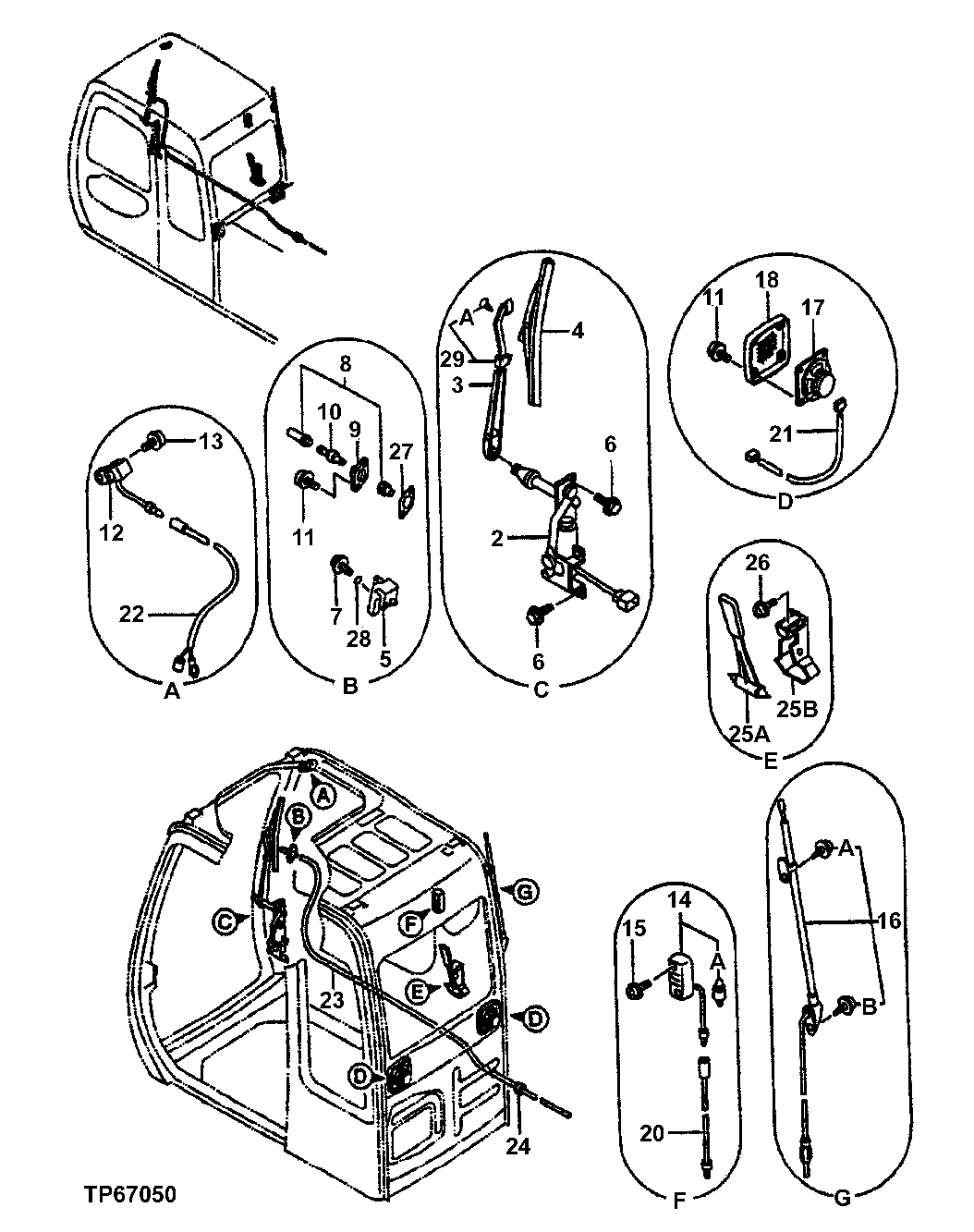

Запчасти John Deere 50LC 62 - Cab Components 1810 Operator Enclosure

0

9193328

Cab

SUB FOR TH9193328 Not Illustrated Conta ins All Parts Listed On This Page Additi onal Components Listed On Following Page s

1шт.

2

4369540

Wiper Motor

SUB FOR AT214054

1шт.

3

4370071

Wiper Arm

SUB FOR TH4370071 Lower Portion

1шт.

4

4369542

Wiper Blade

SUB FOR AT214056

1шт.

5

4369543

Retainer

SUB FOR AT214057

1шт.

6

Washer

12M7065 NLA

5шт.

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

5шт.

7

4372218

Screw With Washer

SUB FOR AT214304

1шт.

8

4367485

Nozzle

SUB FOR AT214042

1шт.

9

4367486

Adapter Fitting

SUB FOR AT214043

1шт.

10

4367481

Flow Control Hyd. Valve

SUB FOR AT214041

1шт.

11

4372608

Screw

SUB FOR AT214316

10шт.

12

4387837

Switch

SUB FOR 4369545; ALSO ORDER 4402476; SUB F OR AT182625 Windshield Washer Safety Switch

1шт.

13

19M7700

Cap Screw

M5 X 10

1шт.

24M7348

Washer

5.500 X 10 X 1 mm

1шт.

12M7064

Lock Washer

5 mm

1шт.

14

4187082

Lamp

SUB FOR TH108567

1шт.

14A

4698994

Bulb

SUB FOR TH108568, 4187083

1шт.

15

21M7265

Screw

M5 X 12

2шт.

16

4280527

Antenna

SUB FOR AT154352

1шт.

16A

4210412

Screw

SUB FOR AT131864

1шт.

16B

4210413

Screw

SUB FOR AT131865

1шт.

17

4361302

Speaker

SUB FOR AT214007

2шт.

18

4364504

Grille

SUB FOR AT214017

2шт.

20

4260369

Wiring Harness

SUB FOR AT214060; SUB FOR AT154278

1шт.

21

4369547

Wiring Harness

SUB FOR AT214061

2шт.

22

4402476

Wiring Harness

SUB FOR AT214062; SUB FOR A T182626; ALSO ORDER 4387837

1шт.

23

Bulk Hose

SUB FOR AT214063; 4369549 N LA; MF TY25139, CTL 1530 mm

1шт.

24

4287903

Grommet

SUB FOR AT154413

2шт.

25A

4362700

Hammer

SUB FOR T158020

1шт.

25B

2038764

Bracket

SUB FOR T158021

1шт.

26

19M7372

Cap Screw

M5 X 16

2шт.

24M7348

Washer

5.500 X 10 X 1 mm

2шт.

12M7064

Lock Washer

5 mm

2шт.

27

4369544

Gasket

SUB FOR AT214058

1шт.

28

4092111

O-Ring

5.800 X 1.900 mm (0.228" X 0.075") SUB FOR AT154150

1шт.

29

4370903

Bracket

SUB FOR AT214277 Upper Portion

1шт.

29A

4382863

Bolt

SUB FOR AT218189

1шт.
