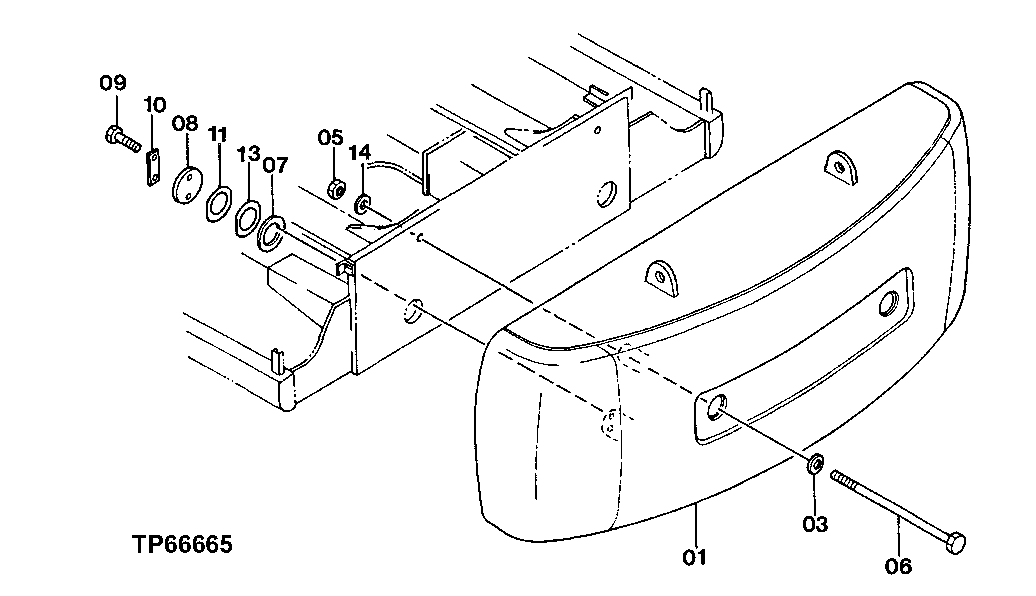

Запчасти John Deere 50LC 52 - Counterweight 1740 Frame Installation

1

5005235

Counterweight

(SUB FOR TH5005235) (CONVENIENCE ASSY)

1шт.

3

4103743

Bushing

46 X 70 X 10 mm (1.811" X 2.75 6" X 0.394") (SUB FOR AT131690)

2шт.

5

M660045

Nut

M45 (SUB FOR AT131560)

2шт.

6

4334933

Bolt

(SUB FOR TH4334933)

2шт.

7

4270268

Washer

123 X 160 X 6 mm (4.843" X 6.29 9" X 0.236") (SUB FOR AT202395)

2шт.

8

4270269

Spacer

(SUB FOR AT201731)

2шт.

9

J912455

Bolt

M24 X 55 (SUB FOR AT131548)

4шт.

10

4070952

Strap

(SUB FOR AT131678)

2шт.

11

4207762

Washer

123 X 160 X 1 mm (4.843" X 6.299 " X 0.039") , (SUB FOR AT131842)

4шт.

13

4207763

Shim

0.5 , (SUB FOR AT131843)

2шт.

14

4103743

Bushing

46 X 70 X 10 mm (1.811" X 2.75 6" X 0.394") (SUB FOR AT131690)

2шт.
