Запчасти John Deere 50LC 47 - DIFFERENTIAL PRESSURE SENSOR 1674 Wiring Harness And Switches

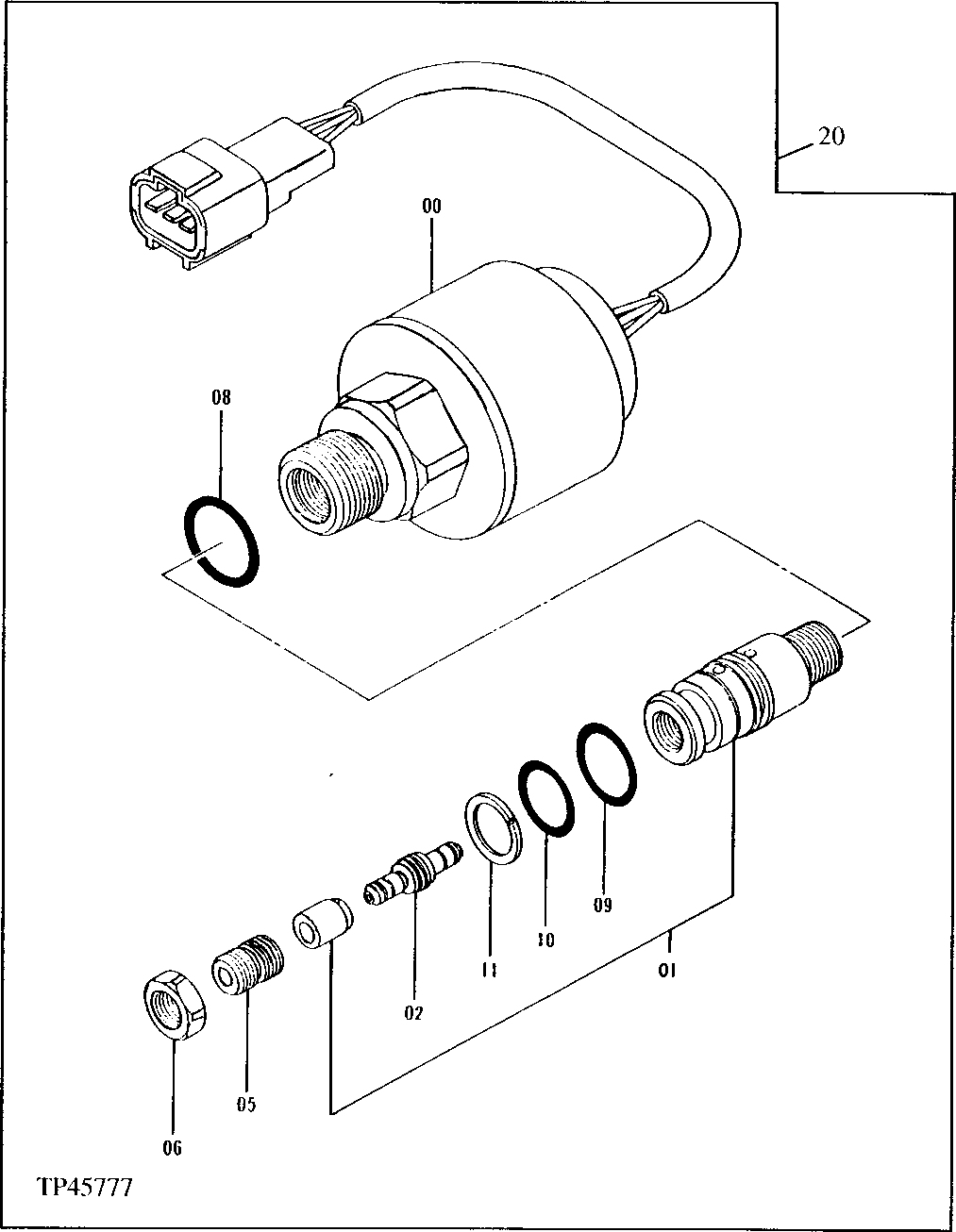

Схема запчастей John Deere 50LC - 47 - DIFFERENTIAL PRESSURE SENSOR 1674 Wiring Harness And Switches

Артикул

Название

Примечание

Количество

0

Sensor

9102068 NLA, SUB FOR AT154532

1шт.

1

9738163

Sensor

SUB FOR AT158069

1шт.

2

4262767

Piston

SUB FOR AT154286

1шт.

5

4263639

Bolt

SUB FOR AT154288

1шт.

6

4258399

Nut

SUB FOR AT154254

1шт.

8

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

9

4247582

O-Ring

13.995 X 1.778 mm (0.551" X 0.070") SUB FOR AT154183

1шт.

10

4185504

O-Ring

12.300 X 1.900 mm (31/64" X 0.075") SUB FOR TH109131

1шт.

11

4185505

Back-Up Ring

SUB FOR TH109132 OR 4S01082

1шт.

20

4339559

Sensor

SUB FOR AT154530 Differential Pressure

1шт.

Выбрано товаров: 10
