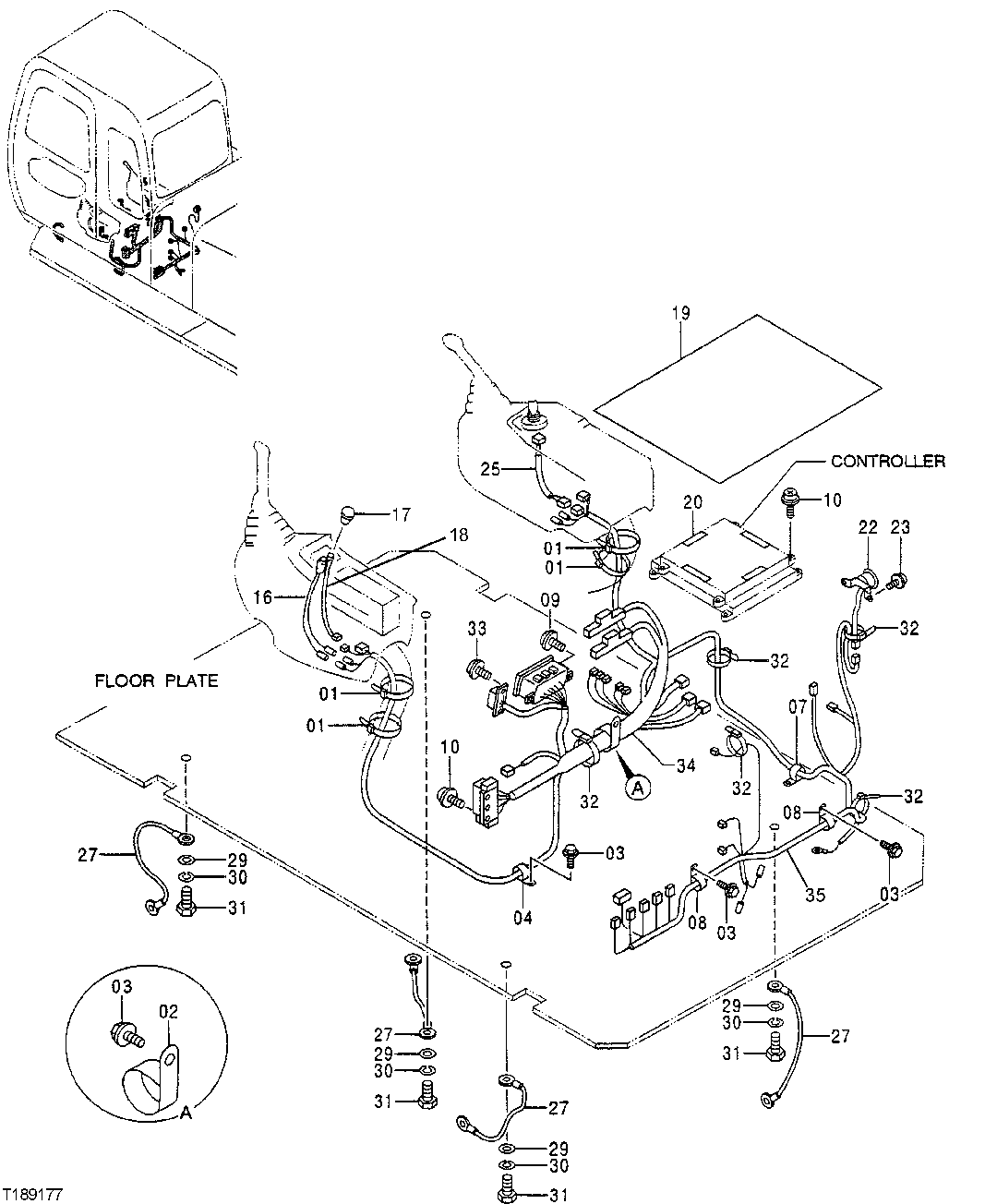

Запчасти John Deere 50LC 43 - Cab Wiring Harness 1674 Wiring Harness And Switches

1

H77698

Tie Band

4шт.

2

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

3

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

4

4190275

Clamp

(SUB FOR TH108598)

1шт.

7

XCL-19

Hose Clamp

(SUB FOR TH108459 OR 4192035)

1шт.

8

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

2шт.

9

19M7077

Cap Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

10

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

10шт.

21M7267

Screw

M6 X 20

10шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

10шт.

12M7006

Lock Washer

6 mm

10шт.

16

4384759

Switch

Start Aid

1шт.

17

4294437

Cap

(SUB FOR AT215503)

1шт.

18

4384758

Switch

Travel Alarm Switch (SUB FOR AT215573)

1шт.

19

3075379

Cover

(SUB FOR AT213792)

1шт.

20

4365396

Tape

(SUB FOR AT214022)

4шт.

22

4258403

Audible Warning Alarm

(SUB FOR AT154934)

1шт.

23

19M7372

Cap Screw

M5 X 16

2шт.

12M7064

Lock Washer

5 mm

2шт.

24M7348

Washer

5.500 X 10 X 1 mm

2шт.

25

4277927

Wiring Harness

(SUB FOR AT154955) Starter Switch

1шт.

27

Wiring Harness

Ground Strap

4шт.

29

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

30

12M7066

Lock Washer

10 mm

4шт.

31

19M8324

Cap Screw

M10 X 16

4шт.

32

H77698

Tie Band

5шт.

33

Screw

(SUB FOR AT156974) ( J460310 NLA)

2шт.

21M7394

Screw

M3 X 10

2шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

2шт.

12H233

Lock Washer

1/8"

2шт.

34

0003399

Wiring Harness

Electrical (SUB FOR TH0002895 OR 0002895 , ALONG WITH 2038806 WIRE HARNESS, R50454 AND T28949 CLIPS, 4423749 BRACKET 19M74 02 SCREW 12M7066 WASHER AND 24M7028 WASHE R)

1шт.

35

2038806

Wiring Harness

1шт.
