Запчасти John Deere 50LC 42 - Ignition Switch 1674 Wiring Harness And Switches

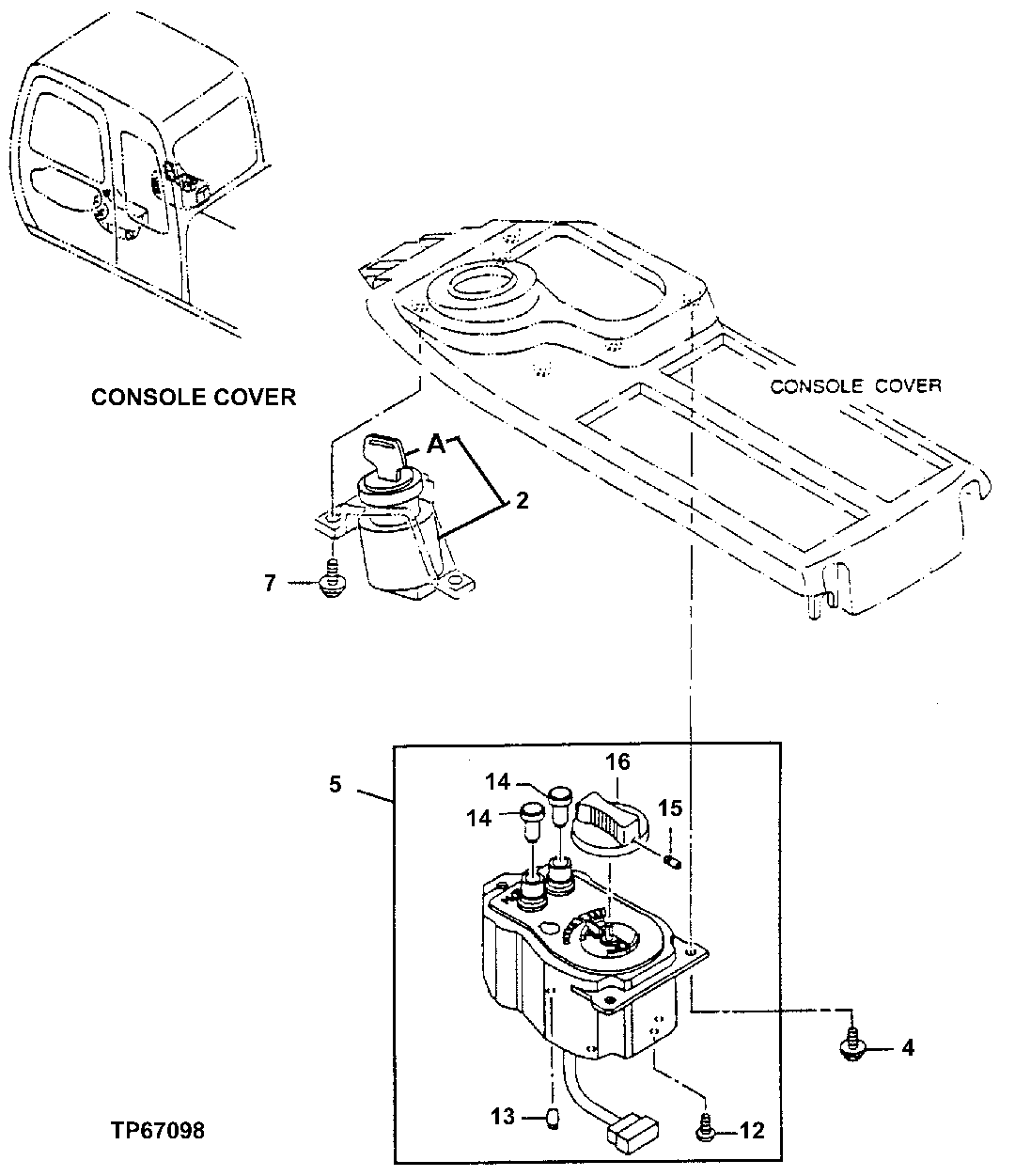

Схема запчастей John Deere 50LC - 42 - Ignition Switch 1674 Wiring Harness And Switches

Артикул

Название

Примечание

Количество

2

4477373

Switch

(SUB FOR AT215939 OR AT154992)

1шт.

2A

AT194969

Key

(SUB FOR AT147803)

1шт.

4

21M7265

Screw

M5 X 12

3шт.

24M7027

Washer

5.300 X 10 X 1 mm

3шт.

12M7064

Lock Washer

5 mm

3шт.

5

4366985

Basic Control Unit

(SUB FOR TH4366985)

1шт.

7

21M7265

Screw

M5 X 12

3шт.

24M7027

Washer

5.300 X 10 X 1 mm

3шт.

12M7064

Lock Washer

5 mm

3шт.

12

4370153

Screw With Washer

(SUB FOR AT214200)

3шт.

13

4370152

Lamp

(SUB FOR AT214199)

1шт.

14

4370151

Switch

(SUB FOR AT214198)

2шт.

15

4370150

Set Screw

(SUB FOR AT214197)

1шт.

16

4370143

Knob

(SUB FOR AT214190)

1шт.

Выбрано товаров: 14
