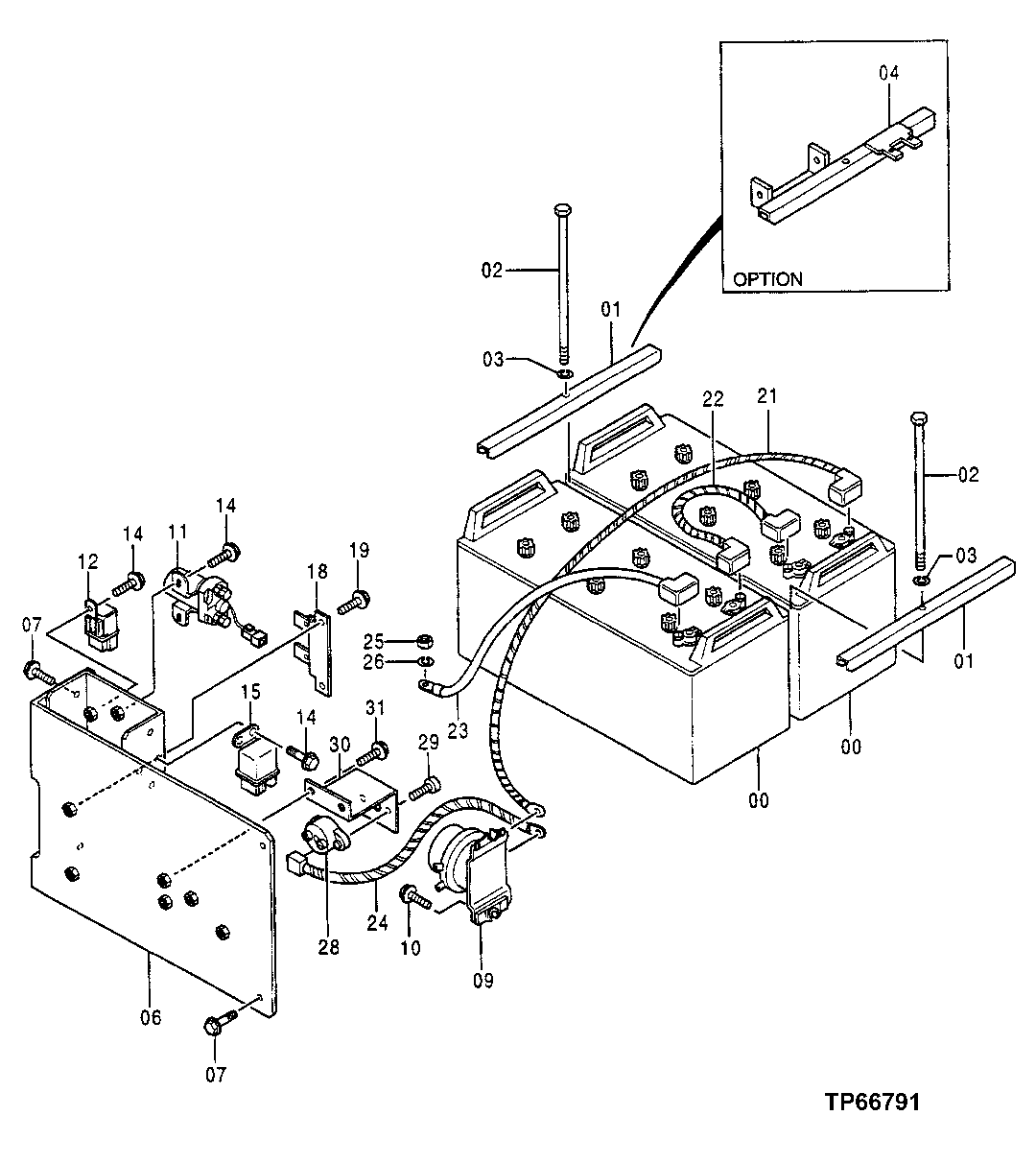

Запчасти John Deere 50LC 35 - Battery and Cables 1674 Wiring Harness And Switches

0

TY23020

Dry Charged Battery

4D Cold Cranking Amps at 0°F ( -18°C), 1400-Minute Reserve Cap acity at 25 Amps SUB FOR TY2170 9

2шт.

1

4145156

Holder

SUB FOR TH102147

2шт.

2

4206101

Bolt

M12 X 280 SUB FOR AT131796

2шт.

3

12H301

Lock Washer

1/2"

2шт.

4

8053763

Support

SUB FOR TH8053763

1шт.

6

7029947

Bracket

SUB FOR TH7029947

1шт.

7

19M8011

Cap Screw

M12 X 30

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

9

4031771

Relay

SUB FOR TH104069 Battery

1шт.

10

19M7139

Cap Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

11

4287277

Starter Relay

SUB FOR TH4287277

1шт.

12

4607115

Relay

SUB FOR TH4275750 AND 4275750 AL SO ORDER 4055311 AND FYA00036071

1шт.

4055311

Clip

1шт.

FYA00036071

Wiring Harness

1шт.

14

19M7923

Cap Screw

M6 X 12

5шт.

12M7006

Lock Washer

6 mm

5шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

5шт.

15

4251587

Relay

SUB FOR AT213807

1шт.

18

4297280

Bracket

SUB FOR AT201752

1шт.

19

19M7923

Cap Screw

M6 X 12

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

21

4299270

Cable

SUB FOR TH4299270

1шт.

22

4294694

Wiring Harness

SUB FOR TH4294694

1шт.

23

4299267

Cable

SUB FOR TH4299267

1шт.

24

4353746

Cable

SUB FOR TH4353746

1шт.

25

14M7274

Nut

M10

1шт.

26

12M7066

Lock Washer

10 mm

1шт.

28

4221047

Switch

SUB FOR TH4221047; BREAKER

1шт.

29

4221280

Cap Screw

SUB FOR TH4221280

2шт.

30

4275239

Bracket

SUB FOR TH4275239

1шт.

31

19M7932

Cap Screw

M8 X 16

2шт.

Washer

12M7065 NLA

2шт.
