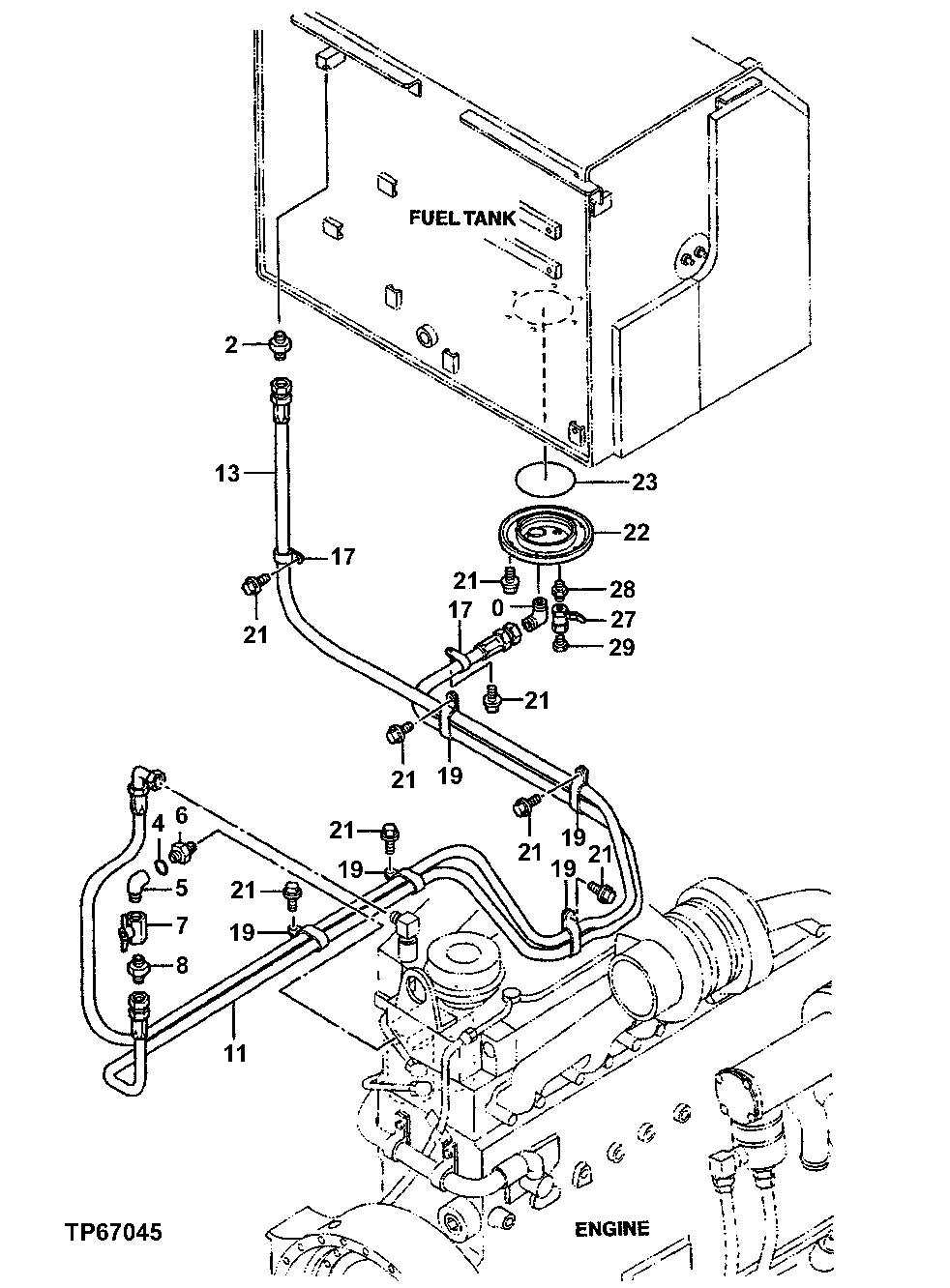

Запчасти John Deere 50LC 28 - Fuel Tank and Hoses 0560 External Fuel Supply Systems

0

4187486

Elbow Fitting

(SUB FOR TH4187486)

1шт.

2

4187487

Fitting

(SUB FOR TH4187487)

1шт.

4

R26906

O-Ring

19.177 X 2.464 mm (0.755" X 0.097")

1шт.

5

94-0633

Elbow Fitting

(SUB FOR TH101968)

1шт.

6

4366569

Fitting

(SUB FOR TH4366569)

1шт.

7

4203434

Hand Operated Valve

(SUB FOR TH4203434)

1шт.

8

4320866

Fitting

(SUB FOR TH4320866)

1шт.

11

4357533

Hose

(SUB FOR TH4357533)

1шт.

13

4357532

Hose

(SUB FOR TH4357532)

1шт.

17

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

2шт.

19

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

5шт.

21

19M7938

Cap Screw

M10 X 20

13шт.

12M7066

Lock Washer

10 mm

13шт.

22

8062320

Cover

(SUB FOR TH8062320)

1шт.

23

TH100679

O-Ring

159.300 X 5.700 mm (6.272" X 0.224")

1шт.

27

4209782

Hand Operated Valve

(SUB FOR AT128432)

1шт.

28

94-1702

Adapter Fitting

(SUB FOR TH102949)

1шт.

29

R30298

Pipe Plug

9.525 mm (3/8")

1шт.
