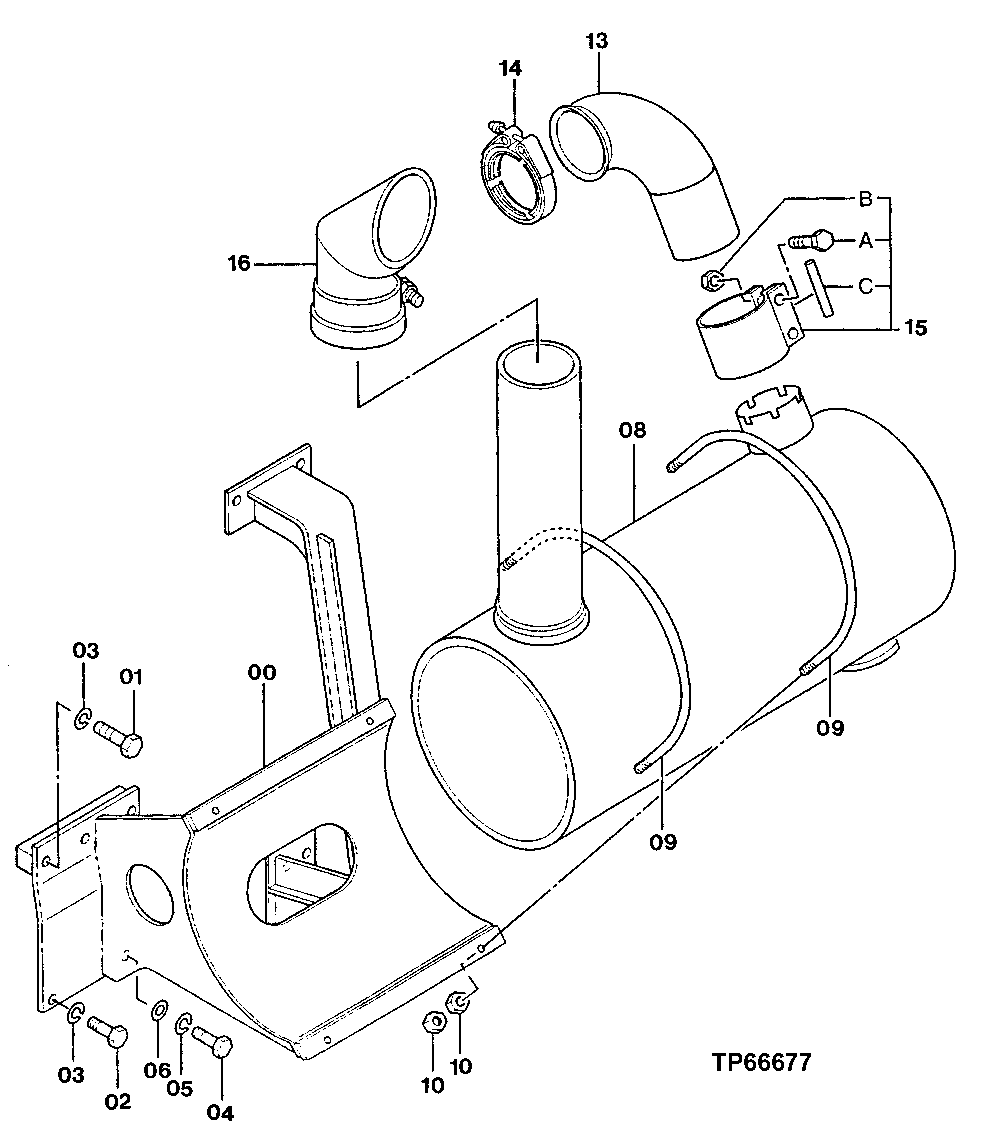

Запчасти John Deere 50LC 26 - Muffler 0530 External Exhaust Systems

0

6015720

Bracket

(SUB FOR TH6015720)

1шт.

1

19H2644

Cap Screw

1/2" X 2-1/2"

3шт.

2

4070418

Bolt

(SUB FOR TH4070418)

1шт.

3

12H301

Lock Washer

1/2"

4шт.

4

19H2284

Cap Screw

3/8" X 7/8"

6шт.

5

12H304

Lock Washer

3/8" (SUB FOR THJ219083 OR 12H304)

6шт.

6

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

8

4655360

Muffler

(SUB FOR TH4343338 OR 4343338)

1шт.

9

4292042

U-Bolt

(SUB FOR TH4292042)

2шт.

10

14M7274

Nut

M10

8шт.

13

8056849

Exhaust Pipe

(SUB FOR TH8056849)

1шт.

14

4S00286

Hose Clamp

(SUB FOR TH4223909)

1шт.

15

4255002

Clamp

(SUB FOR TH4255002)

1шт.

15A

4162836

Bolt

(SUB FOR AT154914)

2шт.

15B

H80440

Lock Nut

11.125 mm (7/16")

2шт.

15C

T130341

Gasket

1шт.

16

7042949

Exhaust Pipe

(SUB FOR TH4381909)

1шт.
