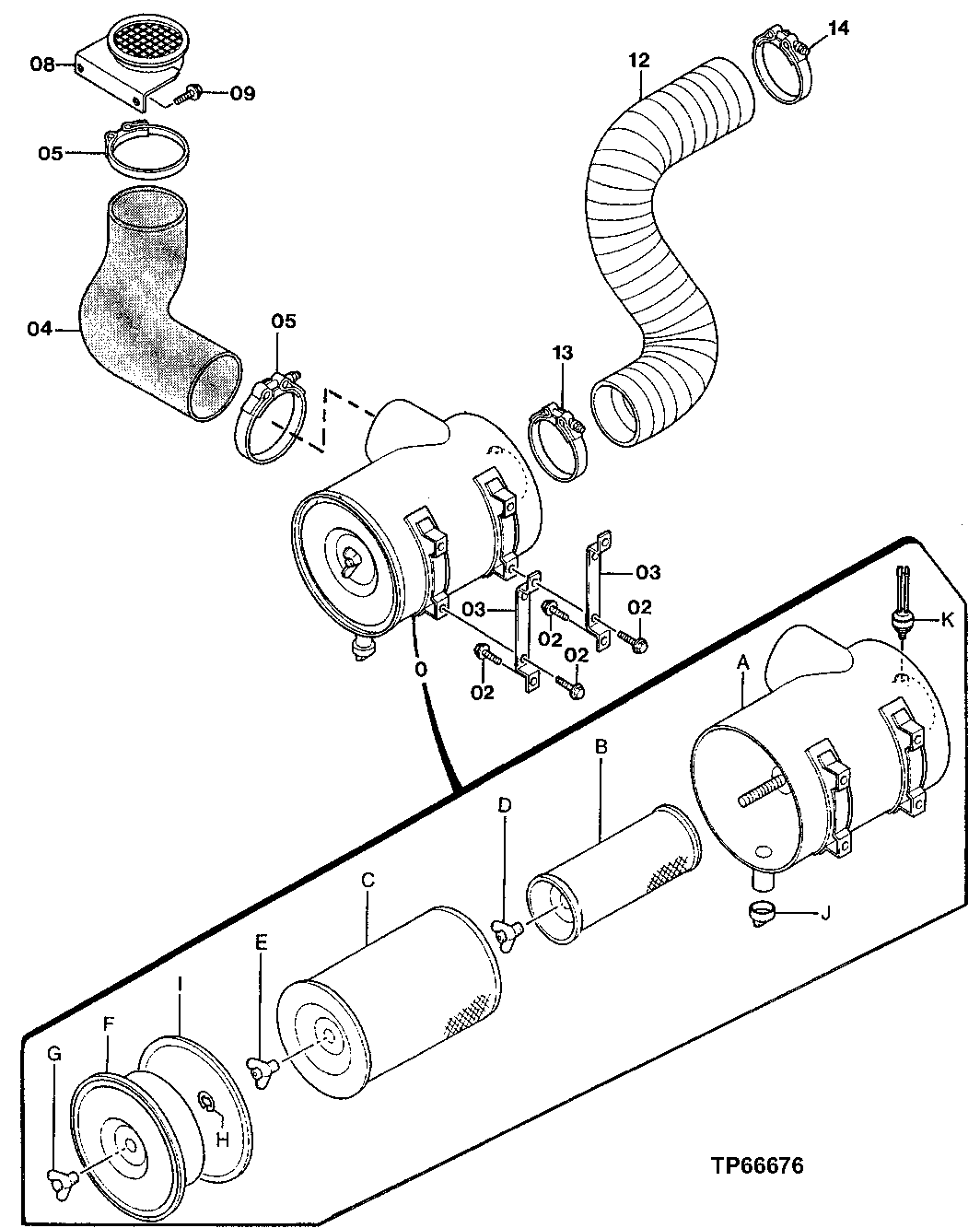

Запчасти John Deere 50LC 25 - Air Cleaner 0520 Intake System

0

4309143

Air Cleaner

(SUB FOR TH4309143)

1шт.

0A

Housing

1шт.

0B

AT201036

Filter Element

Inner

1шт.

0C

AR95758

Filter Element

Outer

1шт.

0D

AH20849

Wing Nut

11.125 mm (7/16")

1шт.

0E

4257360

Nut

(SUB FOR AT200998)

1шт.

0F

4297292

Cover

(SUB FOR AT201034)

1шт.

0G

T251578

Wing Nut

(SUB FOR AR73234) This Application

1шт.

0H

P46402

Snap Ring

1шт.

0I

4257362

Gasket

(SUB FOR AT200999)

1шт.

0J

4152863

Flow Control Hyd. Valve

(SUB FOR TH111700)

1шт.

0K

4224238

Indicator

(SUB FOR AT131922)

1шт.

2

19M7402

Cap Screw

M10 X 25

8шт.

12M7066

Lock Washer

10 mm

8шт.

3

4304361

Bracket

(SUB FOR TH4304361)

2шт.

4

3060015

Suction Hose

(SUB FOR TH3060015)

1шт.

5

4287489

Hose Clamp

(SUB FOR TH4287489)

2шт.

8

8061344

Bracket

(SUB FOR TH8061344)

1шт.

9

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

12

3075021

Suction Hose

(SUB FOR TH3075021)

1шт.

13

4287488

Hose Clamp

(SUB FOR TH4287488)

1шт.

14

4287485

Hose Clamp

(SUB FOR TH4287485)

1шт.
