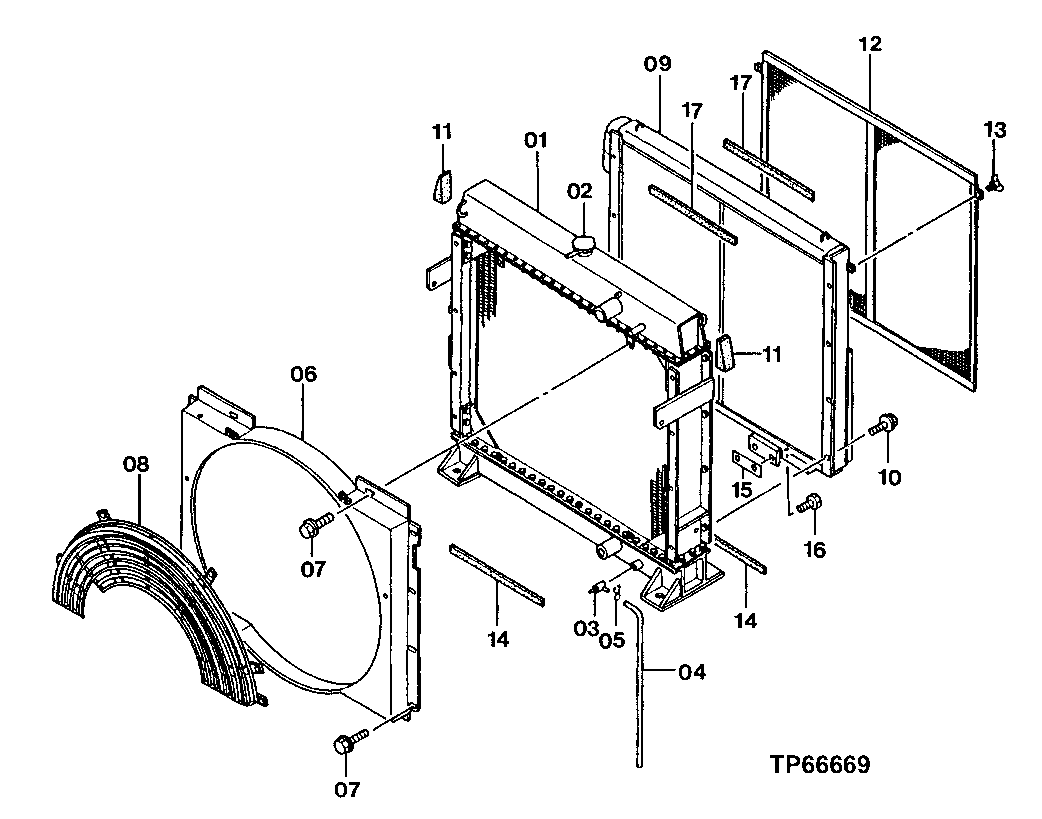

Запчасти John Deere 50LC 20 - Radiator 0510 Engine Cooling Systems

1

4410245

Core

SUB FOR 4377448 OR TH4377448

1шт.

2

4231888

Filler Cap

SUB FOR AT122559

1шт.

3

4248510

Drain Plug

SUB FOR TH4248510

1шт.

4

4206316

Radiator Hose

SUB FOR TH4206316

1шт.

5

4143888

Hose Clamp

SUB FOR TH4143888

1шт.

6

4379474

Shroud

SUB FOR TH4379474

1шт.

7

19M7662

Cap Screw

M10 X 30

12шт.

12M7066

Lock Washer

10 mm

12шт.

24M7028

Washer

10.500 X 20 X 2 mm

12шт.

8

4379472

Guard

SUB FOR TH4379472

1шт.

9

4296257

Oil Cooler

SUB FOR TH4296257

1шт.

10

19M7662

Cap Screw

M10 X 30

8шт.

12M7066

Lock Washer

10 mm

8шт.

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

11

4252612

Isolator

SUB FOR TH4252612

2шт.

12

4325442

Screen

SUB FOR TH4325442

1шт.

13

21M1690

Wing Screw

M6 X 16

2шт.

14

4252614

Isolator

SUB FOR TH4252614

4шт.

15

4257370

Shim

SUB FOR TH4257370

1шт.

16

T116304

Bolt

SUB FOR TH4297797 OR 4297797

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

12M7067

Lock Washer

12 mm

4шт.

17

4252615

Isolator

SUB FOR TH4252615

8шт.

18

4259787

Switch

Level Switch Not Illustrated

1шт.
