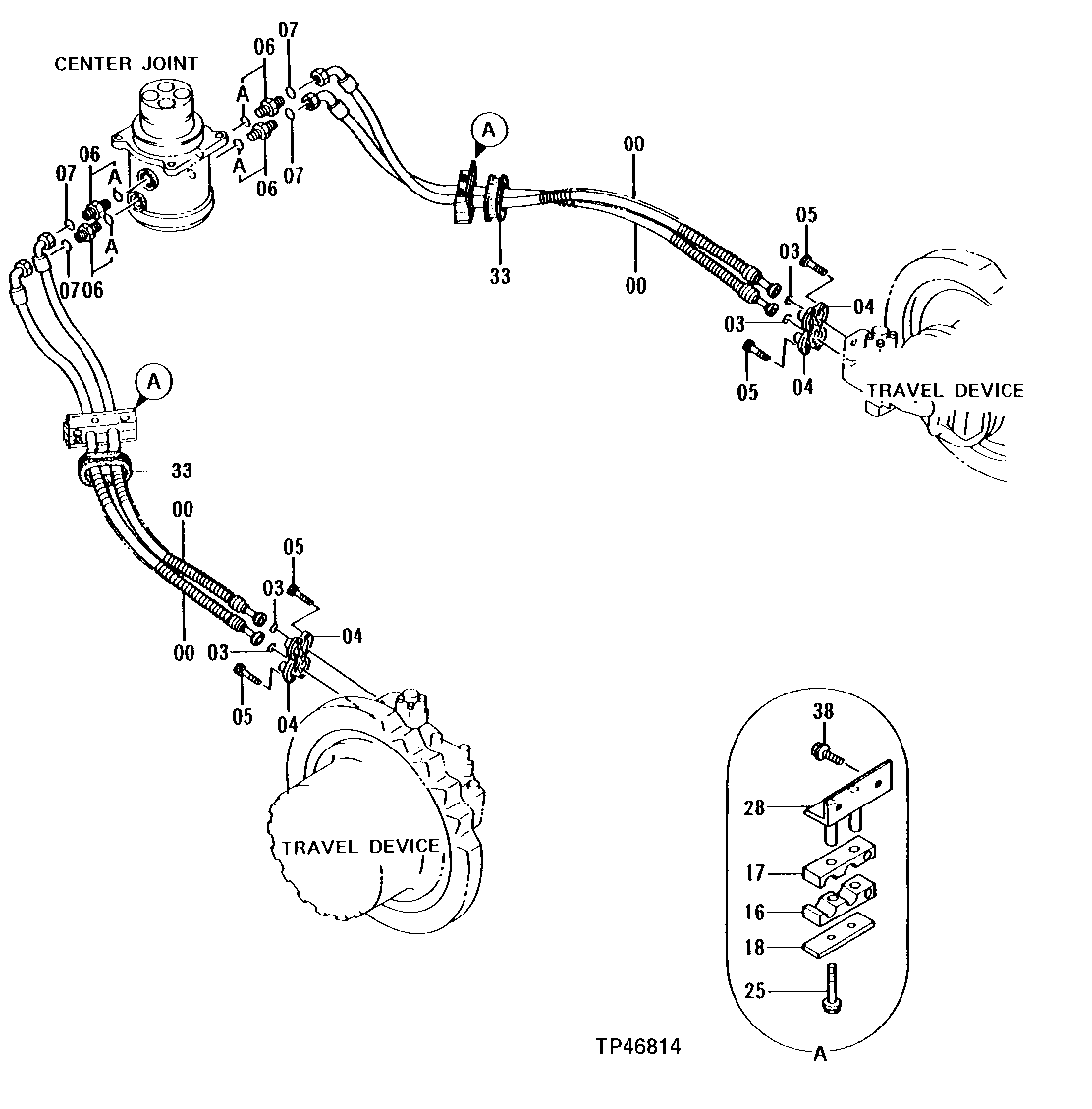

Запчасти John Deere 50LC 16 - Travel Motor Lines and Fittings 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

4358770

Hydraulic Hose

(SUB FOR TH4358770)

4шт.

3

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

4

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

5

19M8395

Screw

M12 X 40

16шт.

6

4189535

Adapter Fitting

(SUB FOR AT114853)

4шт.

6A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

7

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

16

4339413

Hose Clamp

(SUB FOR AT201818)

2шт.

17

4267673

Hose Clamp

(SUB FOR AT201725)

2шт.

18

4268908

Strap

(SUB FOR AT201727)

2шт.

25

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

28

8061456

Bracket

(SUB FOR AT202373)

2шт.

33

4343768

Grommet

(SUB FOR AT202351) (NOT U SED ON 550LC APPLICATIONS)

2шт.

38

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

19M8011

Cap Screw

M12 X 30

4шт.
