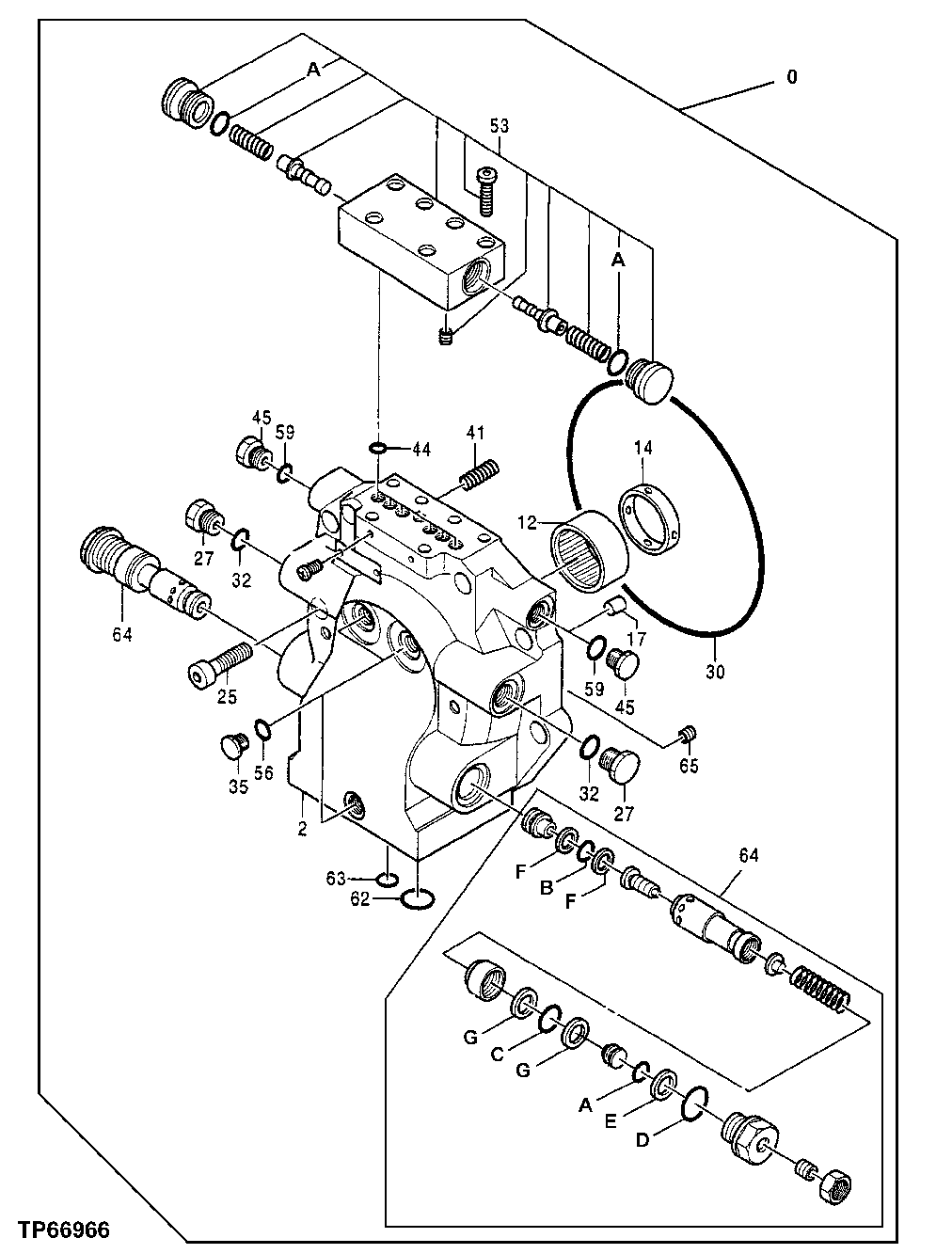

Запчасти John Deere 50LC 13 - Travel Motor 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

4289283

Hydraulic Motor

NLA, ORDER 4289283EX

1шт.

4289283EX

Hydraulic Motor Reman

REMAN FOR 4289283, SUB FOR TH4289283 Contains All Items On This Page Additi onal Components Listed on Previous Pag e

1шт.

2

Cover

0419901 NLA, SUB FOR AT20 1562 Furnish Next Assembly

1шт.

AT349461

Cover

REMAN

1шт.

12

CE15060

Needle Bearing

1шт.

14

0352211

Bushing

SUB FOR AT132248

1шт.

17

0352213

Pin Fastener

SUB FOR AT132250

1шт.

25

0288618

Bolt

SUB FOR AT127285

8шт.

27

0251321

Plug

SUB FOR AT201969

2шт.

30

0419806

O-Ring

SUB FOR AT201977

1шт.

32

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

2шт.

35

0419902

Fitting Plug

SUB FOR AT201563

3шт.

41

0376908

Spring

SUB FOR AT201971

12шт.

44

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

7шт.

45

0218608

Drain Plug

SUB FOR TH110243

2шт.

53

0446402

Flow Control Hyd. Valve

SUB FOR AT201564

1шт.

53A

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

2шт.

56

M800650

Packing

3шт.

59

CH11570

O-Ring

2шт.

62

AT264348

O-Ring

SUB FOR TH102788

2шт.

63

CH12329

Packing

2шт.

64

0419904

Pressure Relief Valve

SUB FOR AT201565

2шт.

64A

CH10568

Packing

1шт.

64B

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

64C

985099

O-Ring

20.800 X 2.400 mm (0.819" X 3/32") SUB FOR TH101479

1шт.

64D

R29936

O-Ring

29.743 X 2.946 mm (1.171" X 0.116")

1шт.

64E

4S01078

Back-Up Ring

SUB FOR 4027963

1шт.

64F

4033725

Back-Up Ring

SUB FOR TH103576 OR 4S01080

2шт.

64G

0310023

Back-Up Ring

SUB FOR AT128031 OR 4S01079

2шт.

65

0419905

Orifice

SUB FOR AT201566

1шт.
