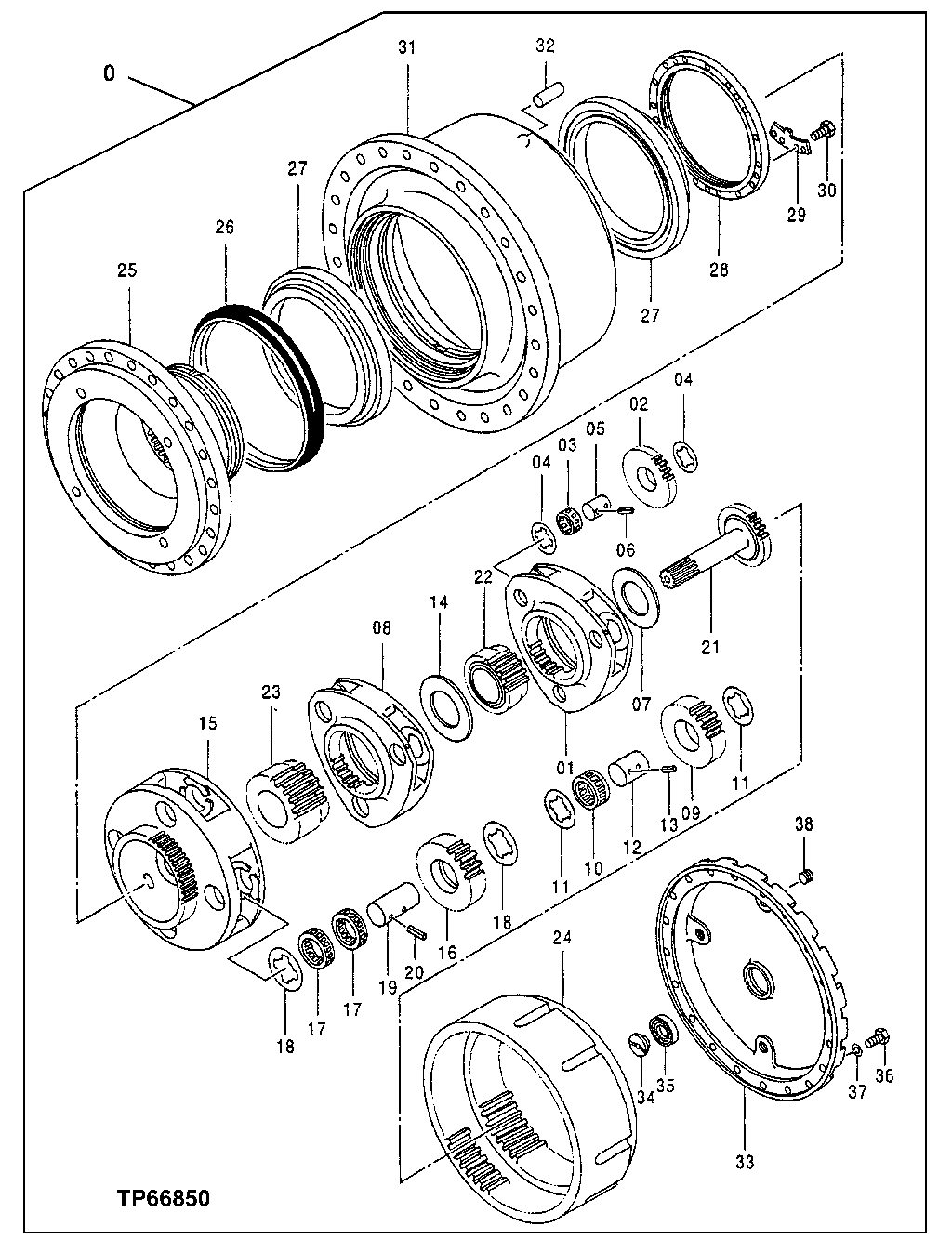

Запчасти John Deere 50LC 11 - Gear Case 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

9136624

Gear Case

2шт.

1

4353496

Planet Pinion Carrier

1шт.

2

4353497

Gear

3шт.

3

4246786

Needle Bearing

SUB FOR AT202104

3шт.

4

4353498

Thrust Washer

6шт.

5

4353499

Pin Fastener

3шт.

6

34M7102

Spring Pin

5 X 26 mm

3шт.

7

4353500

Washer

1шт.

8

4353501

Planet Pinion Carrier

1шт.

9

4353502

Gear

3шт.

10

4289648

Needle Bearing

3шт.

11

4353503

Thrust Washer

6шт.

12

4353504

Pin Fastener

3шт.

13

4144018

Spring Pin

SUB FOR AT217743

3шт.

14

4353505

Washer

1шт.

15

4353506

Planet Pinion Carrier

1шт.

16

4353507

Gear

4шт.

17

4204106

Needle Bearing

SUB FOR AT201714

8шт.

18

4353508

Thrust Washer

8шт.

19

4353509

Pin Fastener

4шт.

20

4144028

Spring Pin

4шт.

21

4353510

Pinion Shaft

1шт.

22

4353511

Sun Gear

1шт.

23

4353512

Sun Gear

1шт.

24

4476045

Ring Gear

SUB FOR 4353513

1шт.

4476045

Ring Gear

1шт.

25

4353514

Housing

1шт.

26

4350347

Seal

1шт.

27

FYB00001746

Bearing

SUB FOR 4200411 AND AT131735

2шт.

28

4353515

Nut

1шт.

29

0985625

Lock Plate

SUB FOR 4353516

1шт.

30

19M7872

Cap Screw

M12 X 25 SUB FOR 4353517

2шт.

31

4661030

Housing

SUB FOR 4353518

1шт.

4661030

Housing

1шт.

32

4353519

Pin Fastener

8шт.

4353519

Pin Fastener

4шт.

33

4672724

Cover

SUB FOR 4353520 OR 0985629

1шт.

34

0985630

Plug

SUB FOR 4353521

1шт.

35

4274541

Ball Bearing

SUB FOR AT160248

1шт.

36

19M7404

Cap Screw

M14 X 40 SUB FOR J921440

20шт.

37

12H317

Lock Washer

9/16"

20шт.

38

4241426

Fitting Plug

SUB FOR TH111907

3шт.
