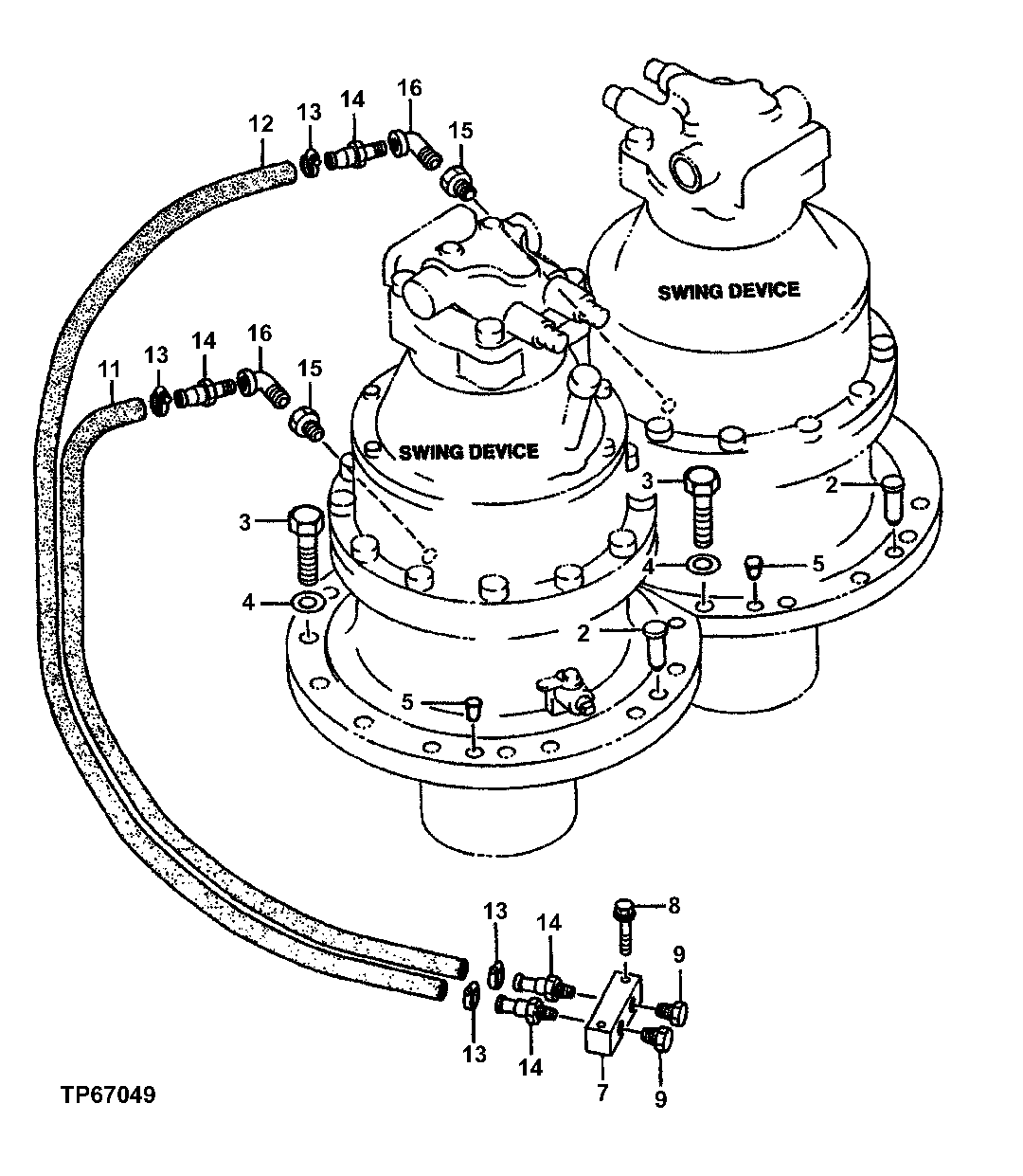

Запчасти John Deere 50LC 216 - Swing Device 4360 Hydraulics

2

4343336

Dowel Pin

SUB FOR AT128441 OR 4253709

4шт.

3

T214405

Bolt

SUB FOR TH101870 OR J932270

26шт.

4

T56006

Washer

23.825 X 44.450 X 6.350 m m (15/16" X 1-3/4" X 1/4")

26шт.

5

99M7010

Plug

4шт.

7

4297191

Junction Block

SUB FOR AT202124

1шт.

8

19M7572

Cap Screw

M10 X 45

2шт.

12M7066

Lock Washer

10 mm

2шт.

9

U40979

Pipe Plug

12.700 mm (1/2")

2шт.

11

4343186

Hydraulic Hose

SUB FOR TH4343186

1шт.

12

4343187

Hydraulic Hose

SUB FOR TH4343187

1шт.

13

AR21839

Clamp

4шт.

14

4004589

Adapter Fitting

SUB FOR AT202075

4шт.

15

4297606

Adapter Fitting

SUB FOR THJ70184

2шт.

16

15H602

Elbow Fitting

1/2"

2шт.
