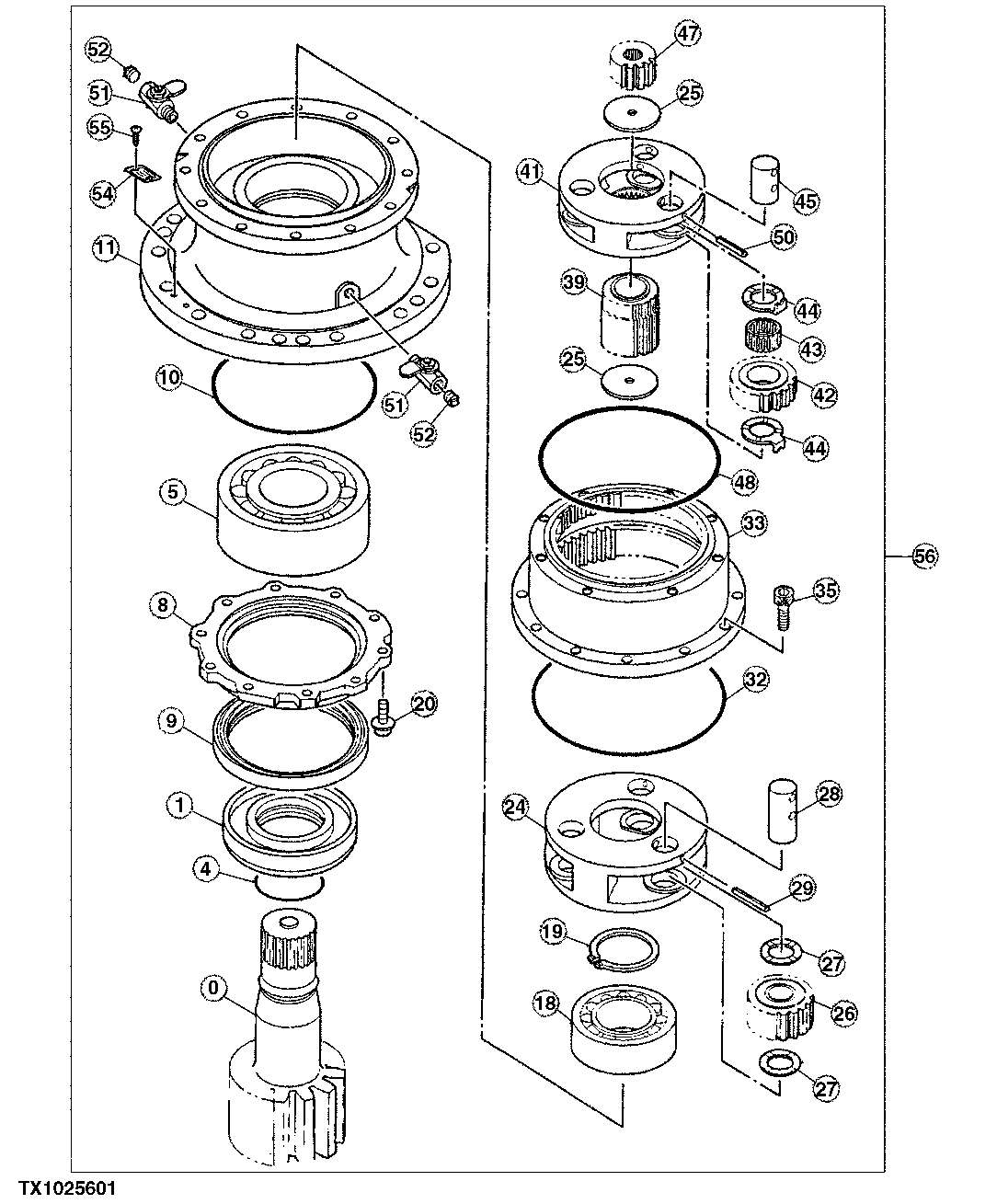

Запчасти John Deere 50LC 215 - Swing Device 4360 Hydraulics

0

2033346

Pinion Shaft

SUB FOR TH2033346

1шт.

1

3084389

Sleeve

SUB FOR TH4291791 OR 4291791

1шт.

4

A810120

O-Ring

119.400 X 3.100 mm (4.701" X 0.122") SUB FOR TH100031

1шт.

5

4291950

Ball Bearing

SUB FOR TH4291950

1шт.

8

3060037

Cover

SUB FOR TH3060037

1шт.

9

4424981

Seal

SUB FOR TH4343568

1шт.

4405533

Seal

Extreme Cold Weather Applications

1шт.

10

AT154714

O-Ring

275 X 3 mm (10.827" X 0.118")

1шт.

11

1017625

Housing

SUB FOR TH1017625

1шт.

18

4291951

Ball Bearing

SUB FOR TH4291951

1шт.

19

40M7193

Snap Ring

1шт.

20

19M7403

Cap Screw

M12 X 35

10шт.

12H301

Lock Washer

1/2"

10шт.

24

1020797

Planet Pinion Carrier

SUB FOR TH1020797

1шт.

25

4642361

Plate

SUB FOR TH109479 OR 4187590

2шт.

26

9743461

Gear

SUB FOR TH9743461

3шт.

27

4266934

Plate

SUB FOR AT154772

6шт.

28

4253311

Pin

SUB FOR AT154730

3шт.

29

34M5564

Spring Pin

6 X 70 mm

3шт.

32

4271596

O-Ring

325 X 3.530 mm (12.795" X 0.139") SUB FOR AT131752

1шт.

33

1014483

Ring Gear

SUB FOR AT154630

1шт.

35

M341850

Bolt

M18 X 50 SUB FOR AT131557

12шт.

39

3070303

Sun Gear

SUB FOR TH3070303

1шт.

41

1017626

Planet Pinion Carrier

SUB FOR TH1017626

1шт.

42

3059736

Gear

SUB FOR TH3059736

3шт.

43

4291952

Needle Bearing

SUB FOR TH4291952

3шт.

44

4338181

Thrust Washer

SUB FOR TH4338181

6шт.

45

4289285

Pin Fastener

SUB FOR TH4289285

3шт.

47

3050046

Sun Gear

SUB FOR AT154671

1шт.

48

4252835

O-Ring

299.400 X 3.100 mm (11.787" X 0.122") SUB FOR AT154726

1шт.

50

34M7045

Spring Pin

6 X 60 mm

3шт.

51

4194712

Drain Valve

SUB FOR TH108278

2шт.

52

94-2024

Fitting Plug

SUB FOR TH101292

2шт.

54

Identification Plate

1шт.

55

37H99

Screw

0.100" X 1/4"

2шт.

56

Hydraulic Motor

9185366 NLA

1шт.
