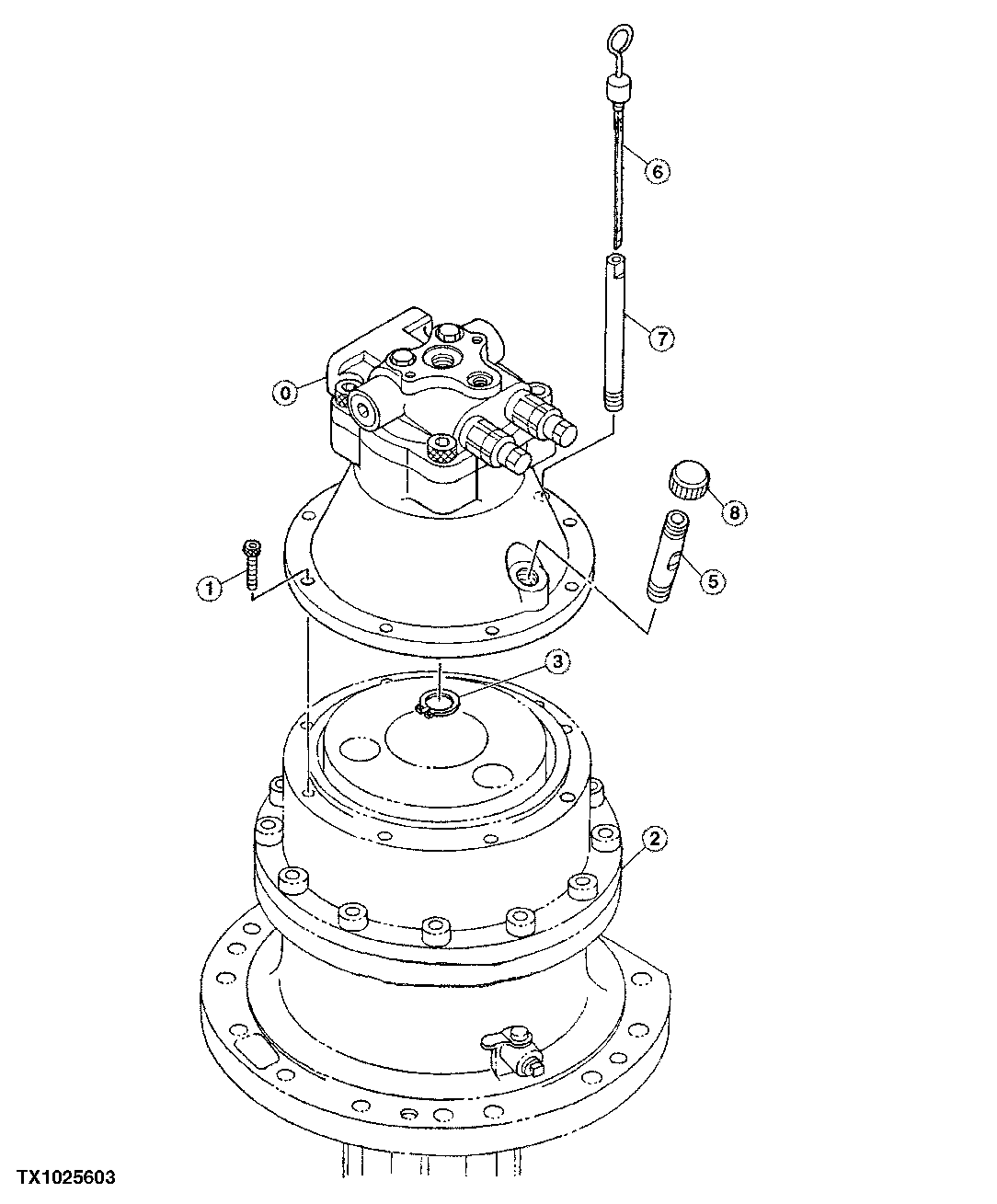

Запчасти John Deere 50LC 213 - Swing Motor 4360 Hydraulics

0

4289284

Hydraulic Motor

NLA (ORDER 4289284EX)

1шт.

4289284EX

Hydraulic Motor Reman

(REMAN FOR 4289284) (SUB FOR TH4289284)

1шт.

1

19M8168

Screw

M12 X 25

8шт.

2

9185366

Hydraulic Motor

1шт.

3

40M7046

Snap Ring

1шт.

5

Tube

( 4388529 NLA) (FURNISH 4298488, 8087727, 4 187328, 4417570, 8075819) (SUB FOR AT250079)

1шт.

6

3074223

Dipstick

(SUB FOR AT213790)

1шт.

7

4264452

Tube

(SUB FOR AT154293)

1шт.

8

4343365

Cap

(SUB FOR AT204965)

1шт.

9

4298488

Breather

Not Illustrated

1шт.

10

8092124

Line

(SUB FOR 8087727) Not Illustrated

1шт.

11

4187328

O-Ring

Not Illustrated

1шт.

12

4417570

Socket

Not Illustrated

1шт.

13

8075819

Line

Not Illustrated

1шт.
