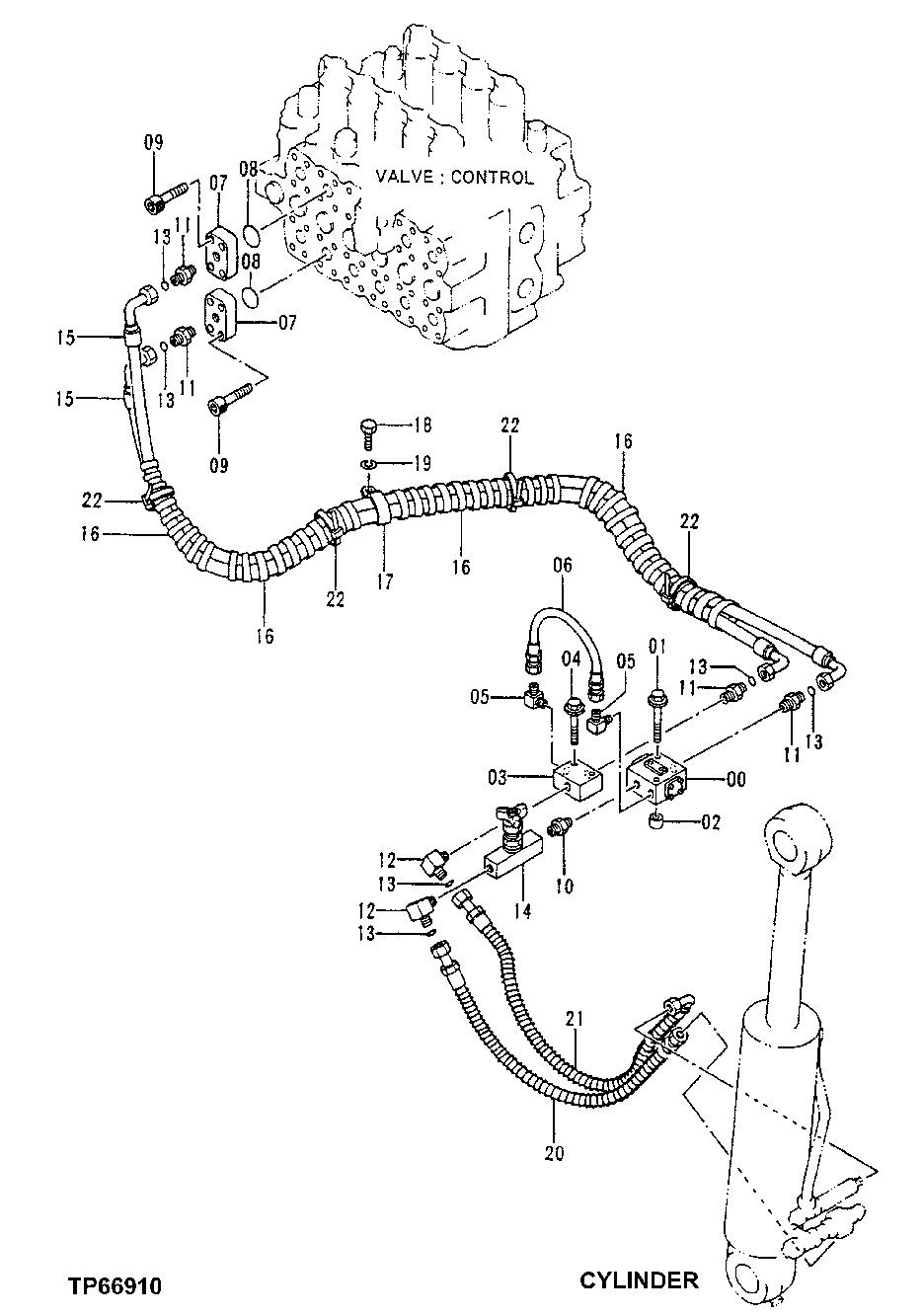

Запчасти John Deere 50LC 210 - High Pressure 3360 Hydraulic System

0

4240863

Flow Control Hyd. Valve

(SUB FOR AT132548)

1шт.

1

19M7875

Cap Screw

M10 X 70

2шт.

12M7066

Lock Washer

10 mm

2шт.

2

4131346

Spacer

10.900 X 17.300 X 16 mm (0.429" X 0.681" X 0.630") (SUB FOR AT132491)

2шт.

3

4240862

Manifold

(SUB FOR AT132547)

1шт.

4

19M8655

Cap Screw

M10 X 55

2шт.

12M7066

Lock Washer

10 mm

2шт.

5

4154656

Elbow Fitting

(SUB FOR TH101588)

2шт.

6

AT126482

Hydraulic Hose

11.1252" X 500 mm (19-3/4") X 11.1252"

1шт.

7

4240861

Flange

(SUB FOR AT132546)

2шт.

8

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

2шт.

9

19M8734

Screw

M14 X 45

8шт.

10

94-1703

Adapter Fitting

(SUB FOR TH101976)

1шт.

11

4210942

Adapter Fitting

(SUB FOR AT131868)

4шт.

12

4274178

Elbow Fitting

(SUB FOR AT170146)

2шт.

13

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

6шт.

14

4220806

Flow Control Hyd. Valve

(SUB FOR AT128495)

1шт.

15

4357741

Hydraulic Hose

(SUB FOR TH4357741)

2шт.

16

TH100996

Hose Guard

4шт.

17

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

1шт.

18

19M8324

Cap Screw

M10 X 16

1шт.

19

12M7066

Lock Washer

10 mm

1шт.

20

4357742

Hydraulic Hose

(SUB FOR TH4357742)

1шт.

21

4357727

Hydraulic Hose

(SUB FOR TH4357727)

1шт.

22

H77698

Tie Band

4шт.
