208 - Cylinder Removal Device

Запчасти John Deere 50LC 208 - Cylinder Removal Device 3360 Hydraulic System

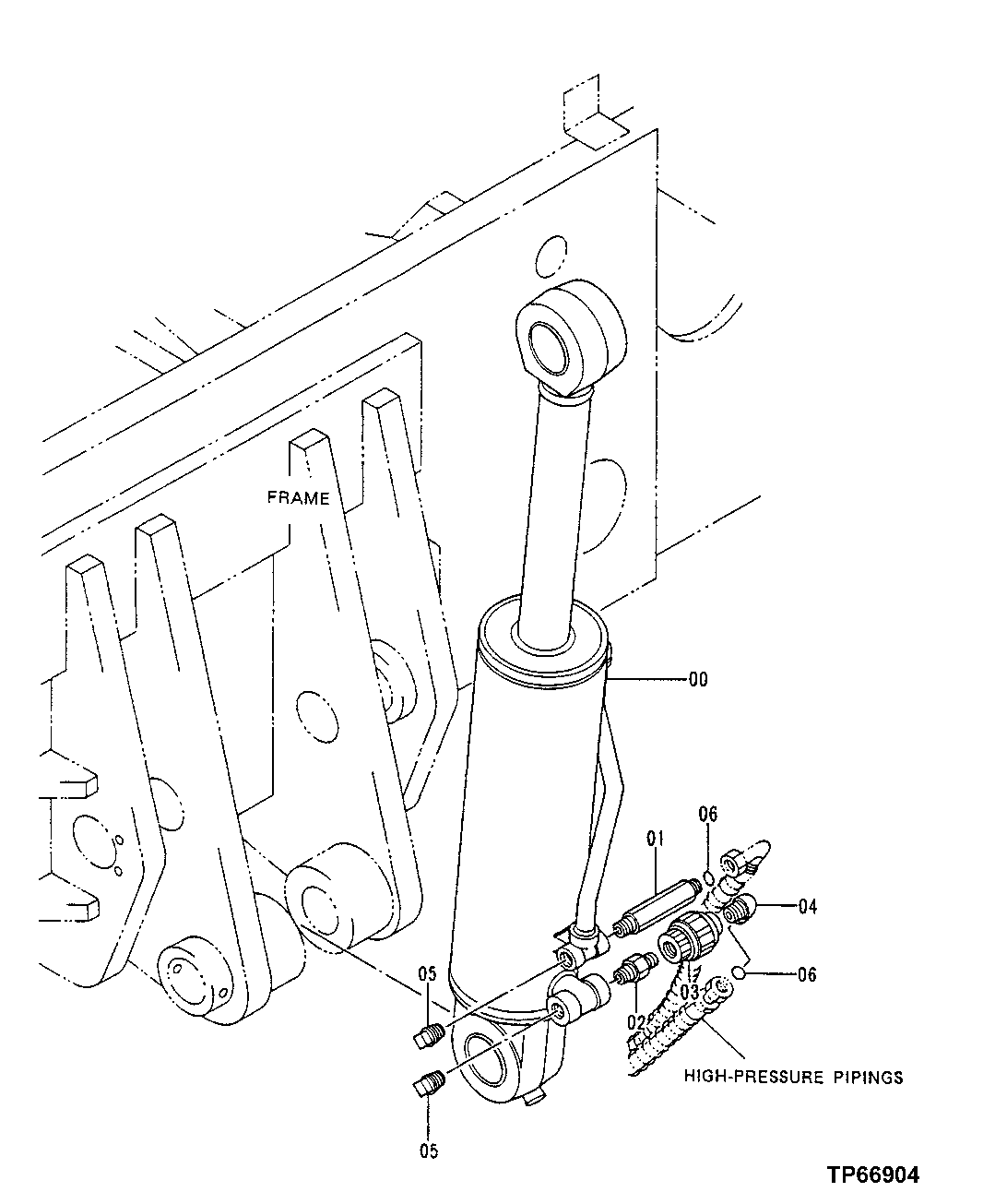

Схема запчастей John Deere 50LC - 208 - Cylinder Removal Device 3360 Hydraulic System
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4356853

Hydraulic Cylinder

(SUB FOR TH4356853)

1шт.

1

3071216

Adapter Fitting

(SUB FOR AT170143)

1шт.

2

4339469

Adapter Fitting

(SUB FOR AT170144)

1шт.

3

4221984

Valve

(SUB FOR AT132492)

1шт.

4

4274178

Elbow Fitting

(SUB FOR AT170146)

1шт.

5

94-2024

Fitting Plug

(SUB FOR TH101292)

2шт.

6

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.
