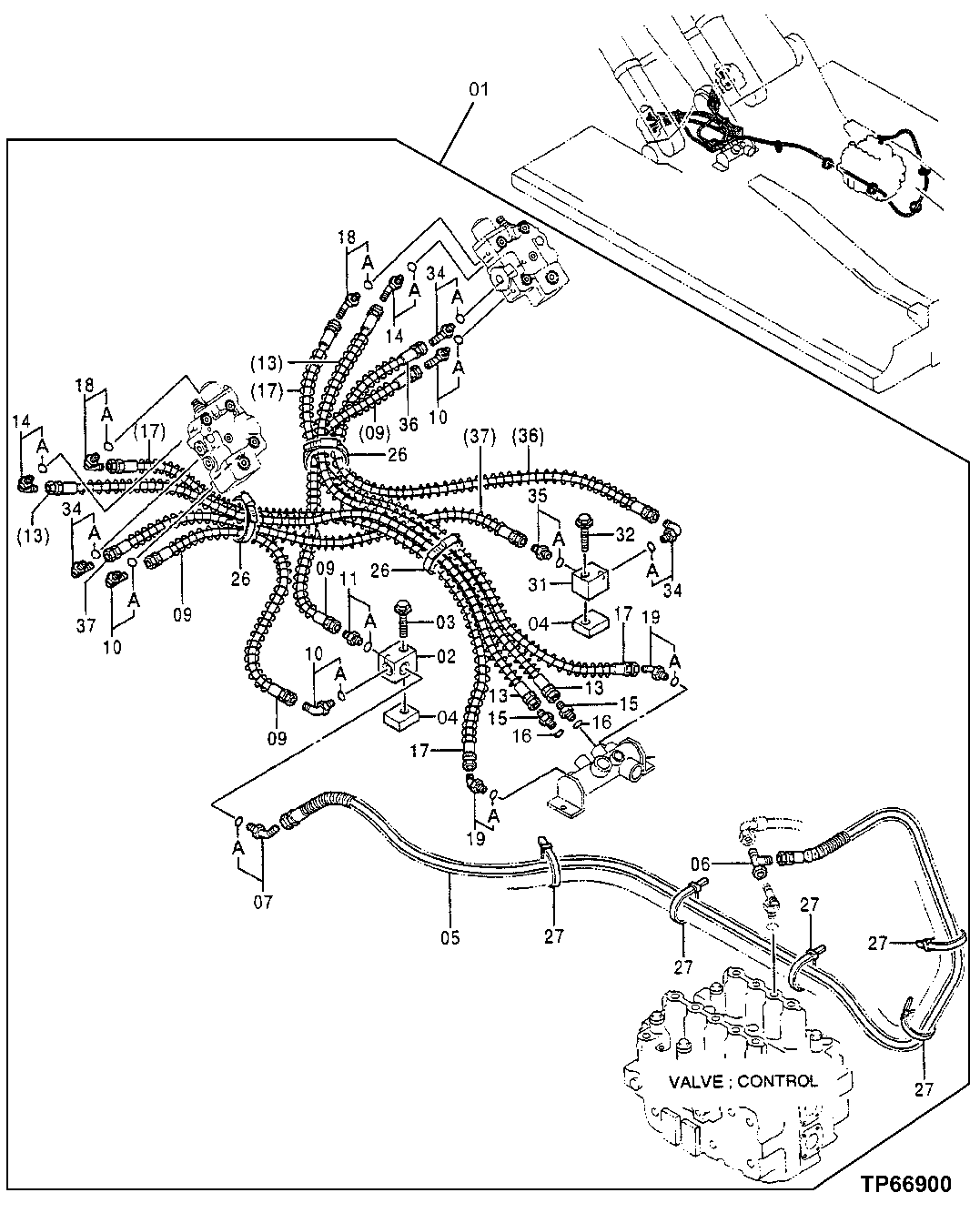

Запчасти John Deere 50LC 206 - Controlled Load Lowering Device, Boom Cylinder Kit 3360 Hydraulic System

1

Kit

( AT188669 NLA) (WHOLEGOODS) (BOOM CYLINDER LOAD LOWERING VALVE) Conta ins All Items On This Page Additiona l Components Listed On Previous Page s

1шт.

2

4335408

Junction Block

(SUB FOR TH4335408)

1шт.

3

19M8348

Cap Screw

M12 X 65

1шт.

12H301

Lock Washer

1/2"

1шт.

4

Screw

2шт.

5

4360659

Hydraulic Hose

(SUB FOR TH4360659)

1шт.

6

4246672

Tee Fitting

(SUB FOR AT200991)

1шт.

7

4190244

Elbow Fitting

(SUB FOR TH106152)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

9

4322512

Hydraulic Hose

(SUB FOR AT175161)

2шт.

10

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

3шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

13

4322513

Hydraulic Hose

(SUB FOR AT175163)

2шт.

14

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

14A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

15

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

2шт.

16

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

2шт.

17

4322514

Hydraulic Hose

(SUB FOR AT175162)

2шт.

18

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

2шт.

18A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

19

4190244

Elbow Fitting

(SUB FOR TH106152)

2шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

26

TY22485

Hose Clamp

(SUB FOR AT175267 OR 4351923)

3шт.

27

H77698

Tie Band

5шт.

31

4335378

Junction Block

(SUB FOR AT175157)

1шт.

32

19M7753

Cap Screw

M12 X 70

1шт.

12H301

Lock Washer

1/2"

1шт.

34

4154670

Elbow Fitting

(SUB FOR TH100951)

3шт.

34A

M800650

Packing

1шт.

35

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

35A

M800650

Packing

1шт.

36

4322515

Hydraulic Hose

(SUB FOR AT175158)

1шт.

37

4322516

Hydraulic Hose

(SUB FOR AT175159)

1шт.
