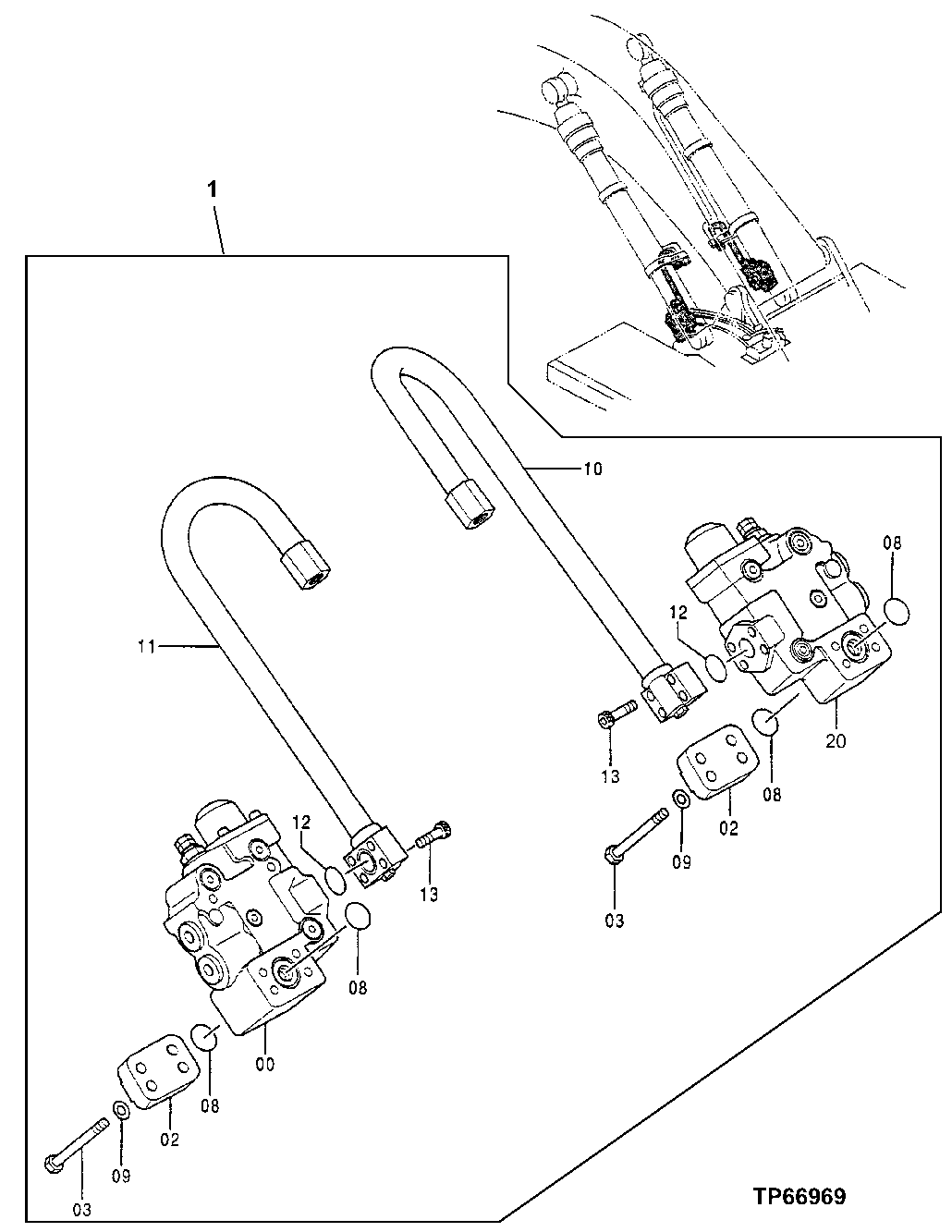

Запчасти John Deere 50LC 205 - Controlled Load Lowering Device, Boom Cylinder Kit 3360 Hydraulic System

1

Kit

( AT188669 NLA) (WHOLEGOODS) (BOOM CYLI NDER LOAD LOWERING VALVE) Contains All Items On This Page Additional Components Listed On Previous and Following Pages

1шт.

2

3048563

Cover

(SUB FOR AT175127)

2шт.

3

M341202

Bolt

(SUB FOR AT175128)

8шт.

8

AT264324

O-Ring

(SUB FOR TH100044)

4шт.

9

4086891

Washer

13 X 26 X 3.200 mm (0.512" X 1.0 24" X 0.126") (SUB FOR TH104166)

8шт.

10

Oil Line

( 4359511 NLA) (FURNISH 4645275 ALO NG WITH 19M8395) (SUB FOR TH4359511)

1шт.

4645275

Line

1шт.

11

Oil Line

( 4359512 NLA) (FURNISH 4645276 ALO NG WITH 19M8395) (SUB FOR TH4359512)

1шт.

4645276

Pipe Bushing

1шт.

12

AT264348

O-Ring

(SUB FOR TH102788)

2шт.

13

19M8444

Screw

M12 X 60 (USE WITH 4359511 AND 4359512)

8шт.

19M8395

Screw

M12 X 40 (USE WITH 4645275 AND 4645276)

8шт.

20

4473857

Flow Control Hyd. Valve

(SUB FOR 4358534)

2шт.
