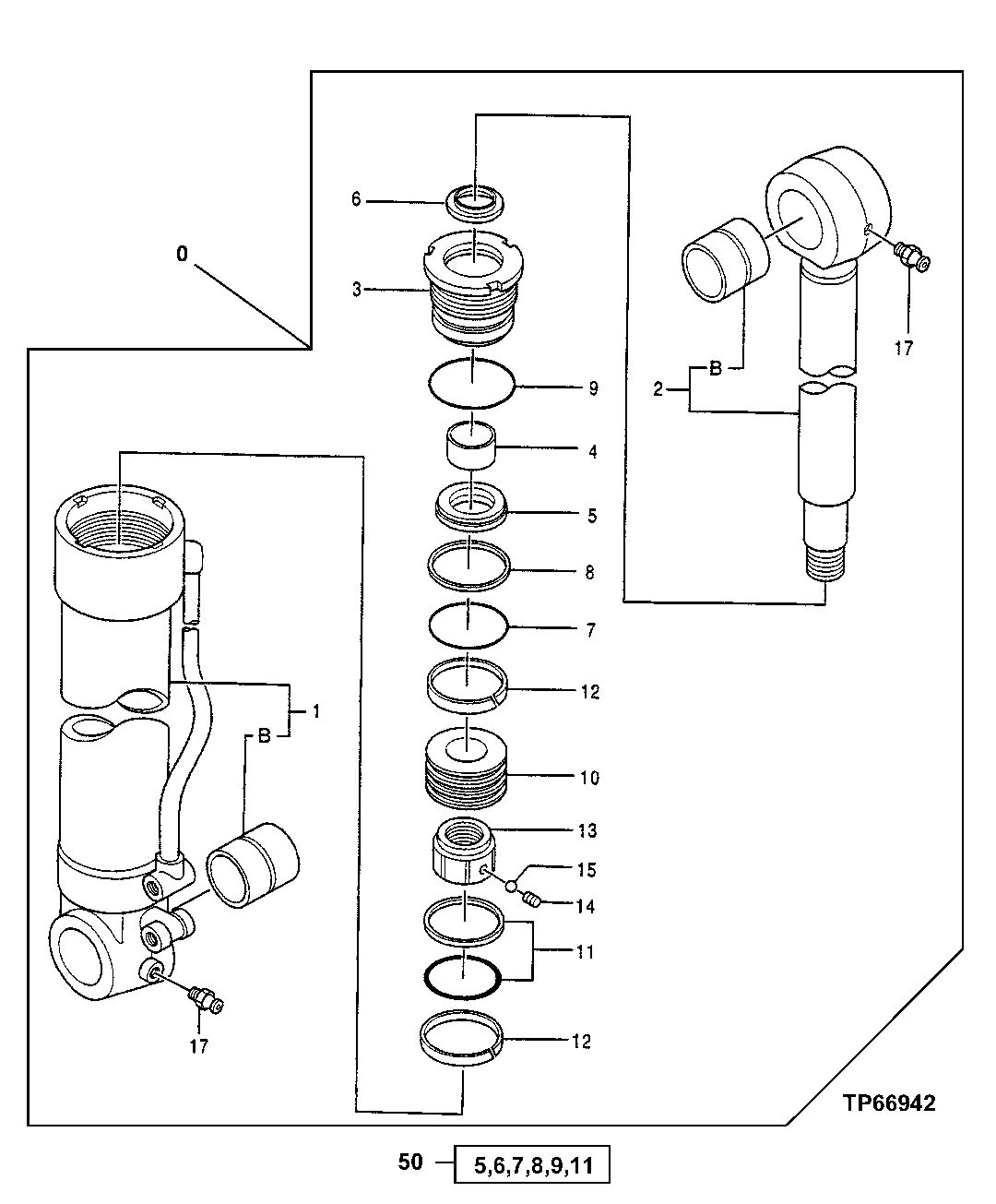

Запчасти John Deere 50LC 203 - Cylinder 3360 Hydraulic System

0

4356853

Hydraulic Cylinder

(SUB FOR TH4356853)

1шт.

1

0679901

Hydraulic Cylinder Barrel

(SUB FOR TH0679901)

1шт.

1B

0188905

Bushing

(SUB FOR AT132686)

1шт.

2

0679902

Rod

(SUB FOR TH0679902)

1шт.

2B

0188905

Bushing

(SUB FOR AT132686)

1шт.

3

0679903

Hydr. Cylinder Rod Guide

(SUB FOR TH0679903)

1шт.

4

988681

Wear Ring

(SUB FOR TH106302)

1шт.

5

4085460

Seal

(SUB FOR AT132692)

1шт.

6

H158164

Scraper Ring

1шт.

7

0166005

O-Ring

(SUB FOR TH0166005)

1шт.

8

0679904

Back-Up Ring

(SUB FOR TH0679904)

1шт.

9

0128612

O-Ring

(SUB FOR TH0159811, 0159811)

1шт.

10

0679905

Piston

(SUB FOR TH0679905)

1шт.

11

TH102795

Seal

1шт.

12

0679906

Ring

(SUB FOR TH0679906)

2шт.

13

0310511

Nut

(SUB FOR TH109325)

1шт.

14

22M6684

Set Screw

M12 X 12

1шт.

15

T13624

Ball

7.145 mm (9/32")

1шт.

17

TH100074

Lubrication Fitting

2шт.

50

4384450

Seal Kit

(SUB FOR TH4384450)

1шт.
