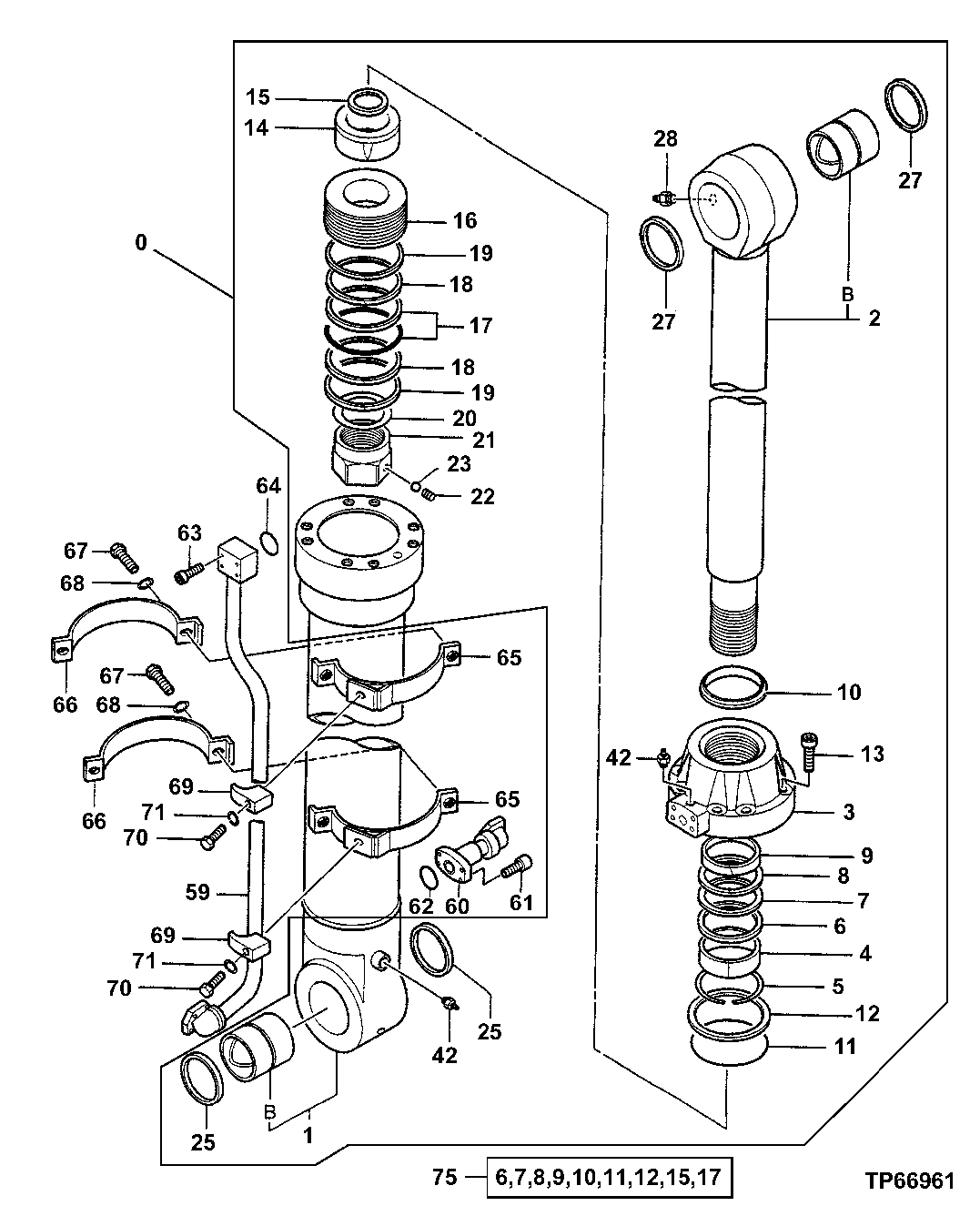

Запчасти John Deere 50LC 201 - Bucket Cylinder Components (Mass Excavating) 3360 Hydraulic System

0

4354830JEX

Hydraulic Cylinder Reman

REMAN, SUB FOR TH4354830

1шт.

1

0646401

Hydraulic Cylinder Barrel

SUB FOR TH0646401

1шт.

1B

4660856

Bushing

SUB FOR TH0645002

1шт.

2

0646402

Rod

SUB FOR TH0646402

1шт.

2B

4609092

Bushing

SUB FOR TH0645103 OR 0645103

1шт.

3

0646403

Hydr. Cylinder Rod Guide

SUB FOR TH0646403

1шт.

4

AT264250

Bushing

SUB FOR AT132313 OR 0353004

1шт.

5

0133709

Snap Ring

SUB FOR TH104999

1шт.

6

AT264251

Ring

SUB FOR 0941506, AT132 314, 0353005 OR 4S00045

1шт.

7

AT264242

Seal

SUB FOR AT132164 OR 4S00037

1шт.

8

AT264246

Back-Up Ring

SUB FOR AT132173 OR 4S00038

1шт.

9

0417605

Ring

SUB FOR AT204901, AT132 315, 0353006 OR 4S00145

1шт.

10

AT264282

Ring

SUB FOR AT132174, AT191199 OR 4437982

1шт.

11

AT264241

O-Ring

SUB FOR AT132155 OR A811180

1шт.

12

AT264243

Back-Up Ring

SUB FOR AT132168 OR 4S00079

1шт.

13

4104472

Bolt

SUB FOR AT132322

8шт.

14

0420304

Bearing

SUB FOR AT201583

1шт.

15

0420310

Seal

SUB FOR TH0420305

1шт.

16

0646404

Piston

SUB FOR TH0646404

1шт.

17

T201905

Seal

SUB FOR 4S00081 OR AT132169

1шт.

18

AT264290

Ring

SUB FOR AT201586

2шт.

19

AT264245

Wear Ring

SUB FOR AT132170

2шт.

20

0353010

Shim

SUB FOR AT132319

1шт.

21

0353009

Nut

SUB FOR AT132318

1шт.

22

0353012

Set Screw

SUB FOR AT132321

1шт.

23

0353011

Ball

SUB FOR AT132320

1шт.

25

0420111

Ring

SUB FOR AT201579 OR 4S00853

2шт.

27

4205000

Seal

SUB FOR TH4205000, 4S00225 OR 4S00817

2шт.

28

TH100074

Lubrication Fitting

1шт.

42

0643016

Bleed Valve

SUB FOR TH0643016

2шт.

59

0646405

Oil Line

SUB FOR TH0646405

1шт.

60

0645106

Oil Line

SUB FOR TH0645106

1шт.

61

19M8395

Screw

M12 X 40

4шт.

62

AT264348

O-Ring

SUB FOR TH102788

1шт.

63

0259207

Cap Screw

SUB FOR TH0259207

4шт.

64

AT264254

O-Ring

SUB FOR AT132423 OR 955612

1шт.

65

0646406

Clamp

SUB FOR TH0646406

2шт.

66

0646407

Clamp

SUB FOR TH0646407

2шт.

67

19M7550

Cap Screw

M10 X 35

4шт.

68

12M7066

Lock Washer

10 mm

4шт.

69

0309219J

Half Clamp

SUB FOR 0309219 OR T108064

2шт.

70

19M7363

Cap Screw

M12 X 60 SUB FOR 19M7273

2шт.

71

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

75

4438696

Seal Kit

ALSO ORDER 4S00145, SUB FOR TH4354824 OR 4354824

1шт.
