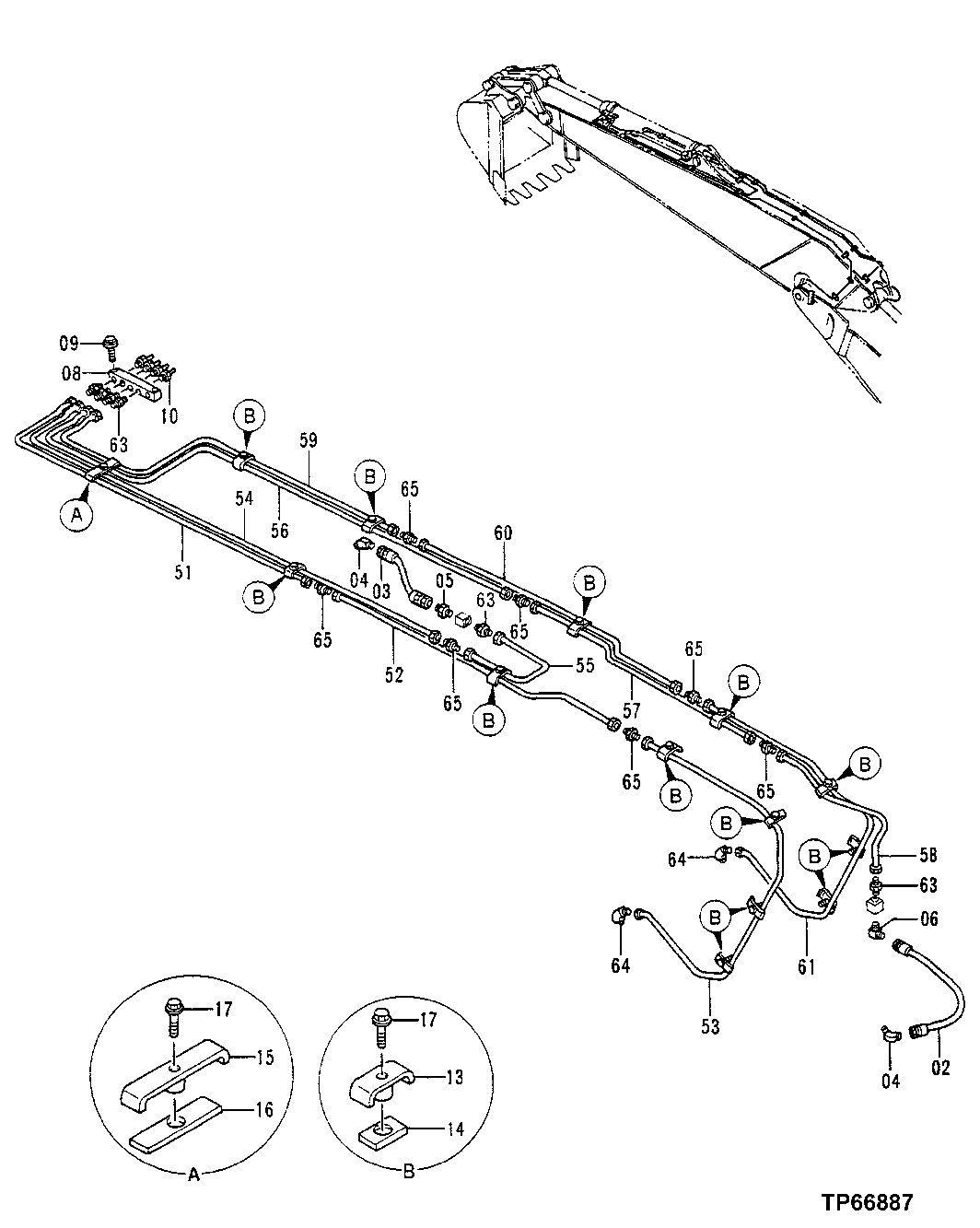

Запчасти John Deere 50LC 193 - Lubricate Lines (Long Arm) 3360 Hydraulic System

2

AT202092

Hydraulic Hose

1шт.

3

TH102493

Hydraulic Hose

1шт.

4

94-1501

Elbow Fitting

(SUB FOR AT121757)

2шт.

5

X4F3P4S

Adapter Fitting

(SUB FOR TH100362 OR 94-1301)

1шт.

6

94-1401

Elbow Fitting

(SUB FOR TH101387)

1шт.

8

4274903

Junction Block

(SUB FOR AT202119)

1шт.

9

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

10

JD7769

Lubrication Fitting

4шт.

13

9736422

Clamp

(SUB FOR AT202175)

13шт.

14

AT318012

Isolator

(SUB FOR 4269657) (SUB FOR AT130970)

13шт.

15

9736421

Clamp

(SUB FOR AT202174)

1шт.

16

AT318020

Strap

(SUB FOR 4273721, AT131668)

1шт.

17

19M7662

Cap Screw

M10 X 30

14шт.

12M7066

Lock Washer

10 mm

14шт.

51

4274888

Line

(SUB FOR AT201741)

1шт.

52

3072921

Oil Line

(SUB FOR TH3072921)

1шт.

53

3072922

Oil Line

(SUB FOR TH3072922)

1шт.

54

4276568

Line

(SUB FOR AT201743)

1шт.

55

4352745

Oil Line

(SUB FOR TH4352745)

1шт.

56

4335902

Line

(SUB FOR AT201807)

1шт.

57

3072923

Oil Line

(SUB FOR TH3072923)

1шт.

58

3072924

Oil Line

(SUB FOR TH3072924)

1шт.

59

4274890

Line

(SUB FOR AT201742)

1шт.

60

3072925

Oil Line

(SUB FOR TH3072925)

1шт.

61

3072926

Oil Line

(SUB FOR TH3072926)

1шт.

63

4130169

Fitting

(SUB FOR TH101391)

6шт.

64

4130175

Fitting

(SUB FOR TH101392)

2шт.

65

Z32962

Fitting

7шт.
