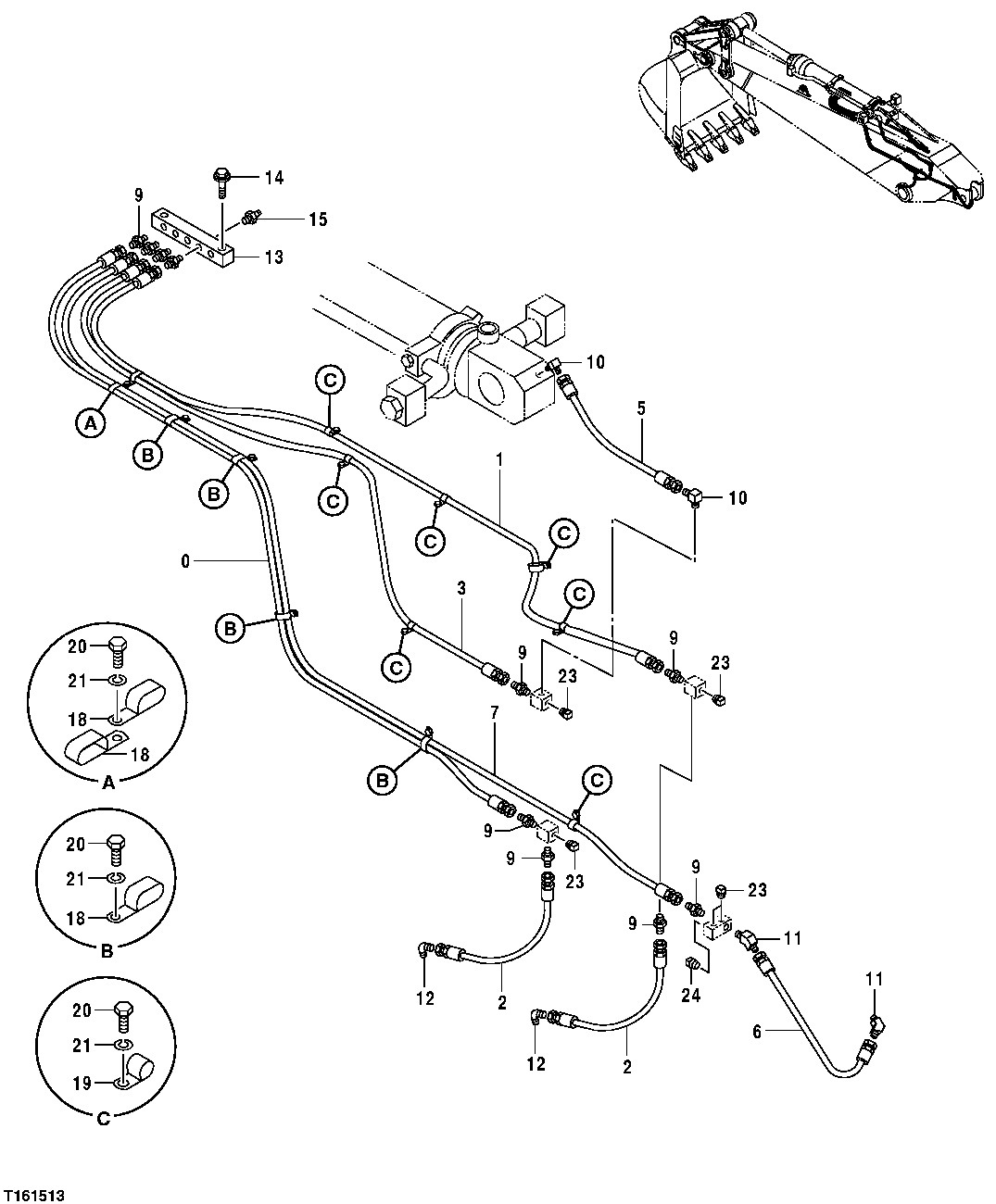

Запчасти John Deere 50LC 191 - Lubricate Lines (Semi-Long Arm) 3360 Hydraulic System

0

4258884

Hose

1шт.

1

4260314

Hydraulic Hose

(SUB FOR AT132503)

1шт.

2

4203161

Hydraulic Hose

2шт.

3

4293066

Hydraulic Hose

(SUB FOR 4223542)

1шт.

5

4437282

Hydraulic Hose

(SUB FOR 4203102 OR 4203102-S)

1шт.

6

4351853

Hydraulic Hose

1шт.

7

4344856

Hose

1шт.

9

4154651

Adapter Fitting

10шт.

10

4154656

Elbow Fitting

2шт.

11

4154655

Elbow Fitting

2шт.

12

4154656

Elbow Fitting

2шт.

13

4274903

Junction Block

1шт.

14

19M7358

Cap Screw

M10 X 40

2шт.

15

JD7769

Lubrication Fitting

(SUB FOR TH100364)

4шт.

18

4192018

Clip

5шт.

19

4190261

Clip

8шт.

20

19M8324

Cap Screw

M10 X 16

12шт.

21

12M7066

Lock Washer

10 mm

12шт.

23

94-2021

Plug

5шт.

24

94-2022

Plug

1шт.
