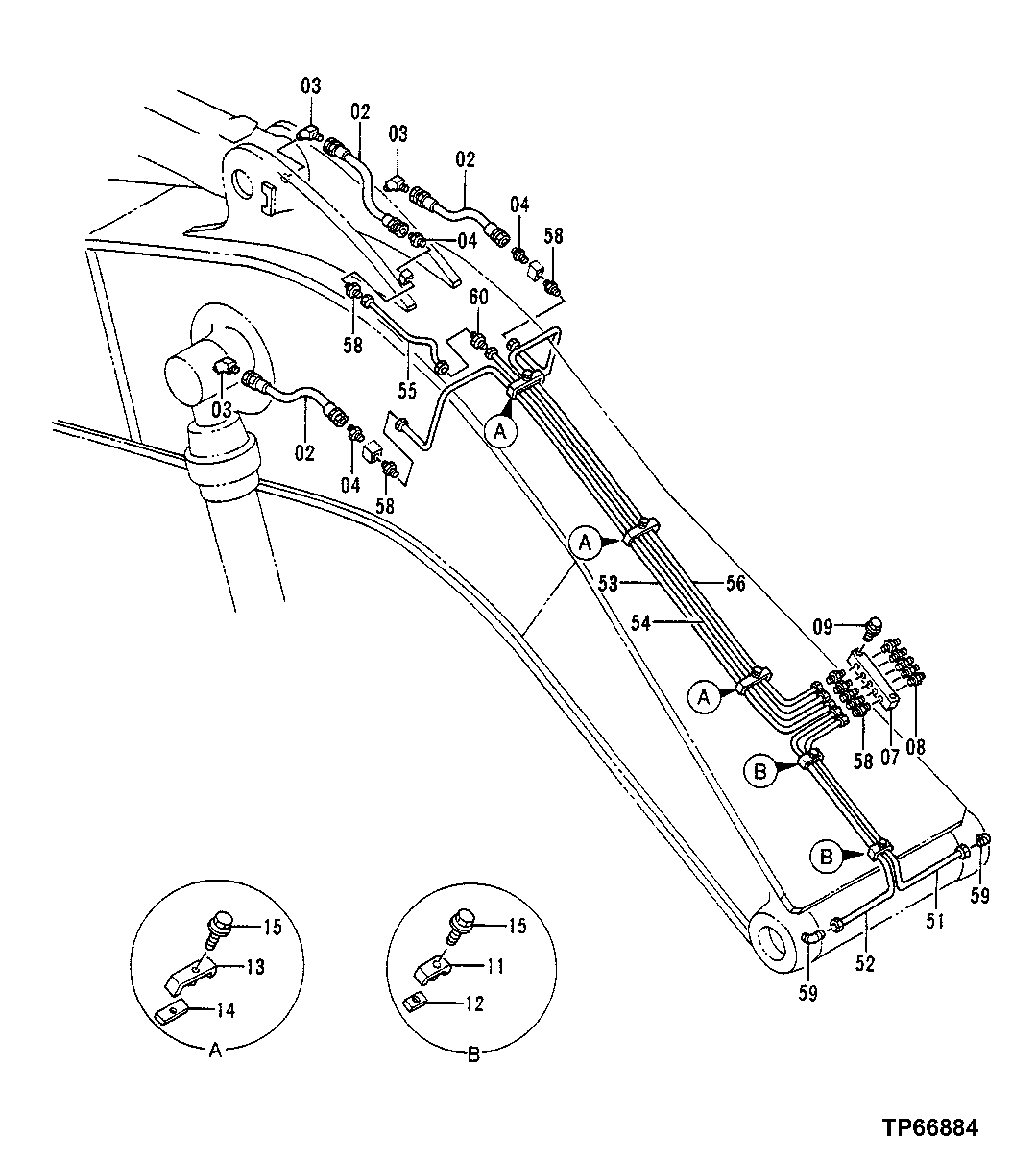

Запчасти John Deere 50LC 187 - LUBRICATE PIPINGS 3360 Hydraulic System

2

TH102493

Hydraulic Hose

3шт.

3

94-1501

Elbow Fitting

(SUB FOR AT121757)

3шт.

4

X4F3P4S

Adapter Fitting

(SUB FOR TH100362 OR 94-1301)

3шт.

7

4274903

Junction Block

(SUB FOR AT202119)

1шт.

8

JD7769

Lubrication Fitting

5шт.

9

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

11

9736422

Clamp

(SUB FOR AT202175)

2шт.

12

AT318012

Isolator

(SUB FOR 4269657) (SUB FOR AT130970)

2шт.

13

9736421

Clamp

(SUB FOR AT202174)

3шт.

14

AT318020

Strap

(SUB FOR 4273721, AT131668)

3шт.

15

19M7662

Cap Screw

M10 X 30

5шт.

12M7066

Lock Washer

10 mm

5шт.

51

3067412

Oil Line

(SUB FOR TH3067412)

1шт.

52

3067413

Oil Line

(SUB FOR TH3067413)

1шт.

53

3068010

Oil Line

(SUB FOR TH3068010)

1шт.

54

3068011

Oil Line

(SUB FOR TH3068011)

1шт.

55

4329972

Oil Line

(SUB FOR TH4329972)

1шт.

56

3068012

Oil Line

(SUB FOR TH3068012)

1шт.

58

4130169

Fitting

(SUB FOR TH101391)

8шт.

59

4130175

Fitting

(SUB FOR TH101392)

2шт.

60

Z32962

Fitting

1шт.
