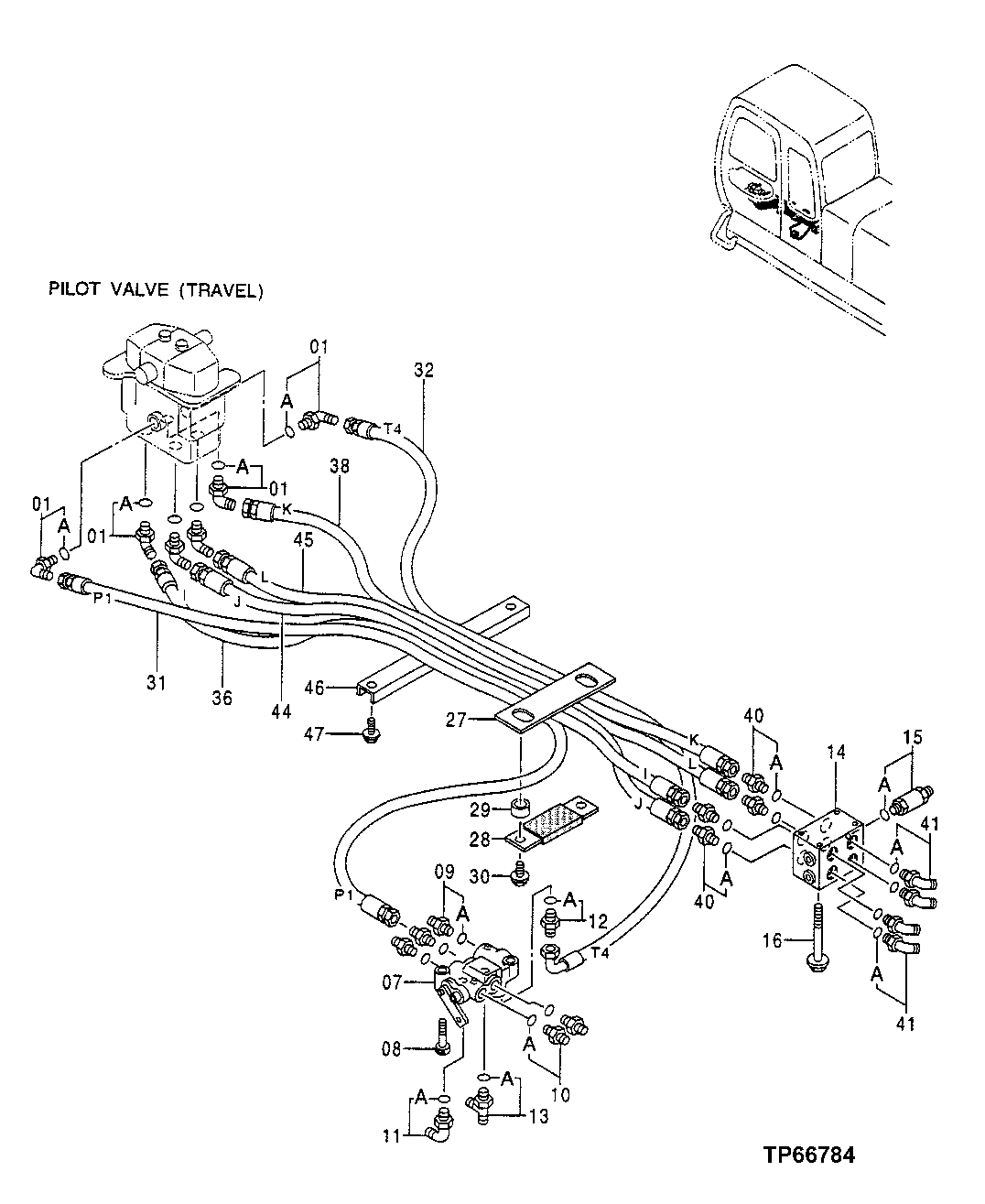

Запчасти John Deere 50LC 170 - Pilot Lines 3360 Hydraulic System
№
Артикул
Название
Примечание
Количество
1
AT318014
Elbow Fitting
SUB FOR 4156434; SUB FOR TH101930
6шт.
1A
M800650
Packing
1шт.
7
4254611
Flow Control Hyd. Valve
SUB FOR AT154216
1шт.
8
J781045
Screw
SUB FOR AT213616
2шт.
9A
CH11570
O-Ring
13.800 X 2.400 mm (0.543" X 3/32")
1шт.
10
4200466
Adapter Fitting
SUB FOR TH108320
2шт.
10A
CH11570
O-Ring
13.800 X 2.400 mm (0.543" X 3/32")
1шт.
11
A852333
Elbow Fitting
SUB FOR TH101047; SUB FOR 4154671
1шт.
11A
CH11570
O-Ring
13.800 X 2.400 mm (0.543" X 3/32")
1шт.
12
4200466
Adapter Fitting
SUB FOR TH108320
1шт.
12A
CH11570
O-Ring
13.800 X 2.400 mm (0.543" X 3/32")
1шт.
13
4225403
Tee Fitting
SUB FOR AT159557
1шт.
13A
CH11570
O-Ring
13.800 X 2.400 mm (0.543" X 3/32")
1шт.
14
4254612
Flow Control Hyd. Valve
SUB FOR AT154217
1шт.
15A
CH19111
O-Ring
7.645 X 1.778 mm (0.301" X 0.070")
1шт.
16
19M8456
Cap Screw
M8 X 100
4шт.
Washer
12M7065 NLA
4шт.
27
4270771
Plate
SUB FOR AT154311
1шт.
28
9736384
Plate
SUB FOR AT154544
1шт.
29
R54204
Half Sleeve
SUB FOR AT154312 OR 4270773
2шт.
31
4323290
Hydraulic Hose
SUB FOR AT217091
1шт.
32
AT216978
Hydraulic Hose
9/16" X 1200 mm (47-1/4") X 9/16"
1шт.
36
AT48434
Hydraulic Hose
9/16" X 1066 mm (42") X 9/16"
1шт.
38
AT48434
Hydraulic Hose
9/16" X 1066 mm (42") X 9/16"
1шт.
40
4200466
Adapter Fitting
SUB FOR TH108320
4шт.
40A
CH11570
O-Ring
13.800 X 2.400 mm (0.543" X 3/32")
1шт.
41
4190244
Elbow Fitting
SUB FOR TH106152
4шт.
41A
CH11570
O-Ring
13.800 X 2.400 mm (0.543" X 3/32")
1шт.
44
AT48434
Hydraulic Hose
9/16" X 1066 mm (42") X 9/16"
1шт.
45
AT48434
Hydraulic Hose
9/16" X 1066 mm (42") X 9/16"
1шт.
46
4323723
Channel
SUB FOR AT201277
1шт.
Выбрано товаров: 37
