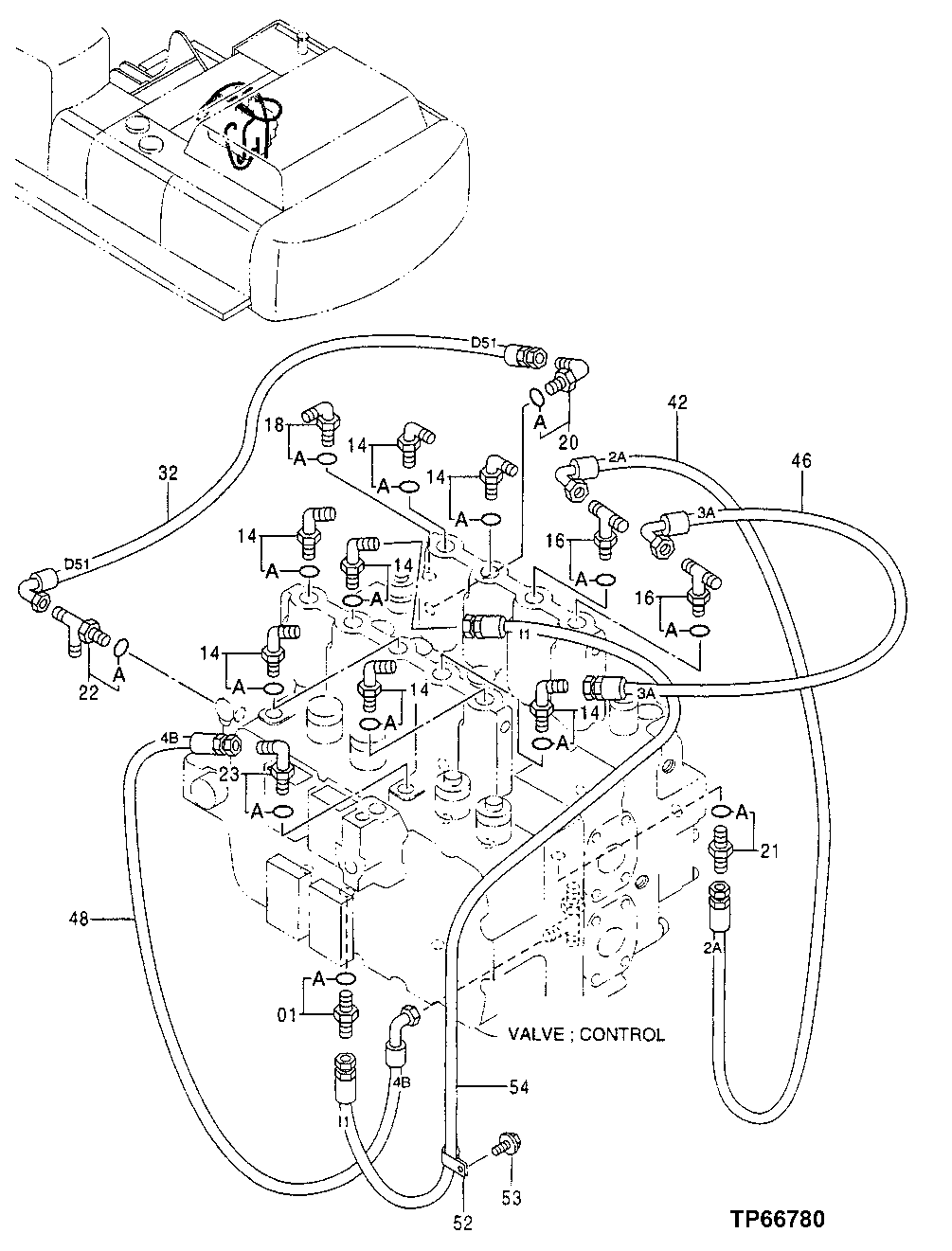

Запчасти John Deere 50LC 166 - Pilot Lines 3360 Hydraulic System

1

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

1A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

7шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

16

4208911

Tee Fitting

(SUB FOR AT126456)

2шт.

16A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

18

4278441

Elbow Fitting

(SUB FOR TH4278441)

1шт.

18A

M800650

Packing

1шт.

20

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

20A

M800650

Packing

1шт.

21

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

21A

M800650

Packing

1шт.

22

4203171

Tee Fitting

(SUB FOR TH110578)

1шт.

22A

M800650

Packing

1шт.

23

AT318014

Elbow Fitting

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

23A

M800650

Packing

1шт.

32

4367003

Hose

(SUB FOR TH4367003)

1шт.

42

4367005

Hose

(SUB FOR TH4367005)

1шт.

46

4367006

Hose

(SUB FOR TH4367006)

1шт.

48

AT111979

Hydraulic Hose

9/16" X 1270 mm (50") X 9/16"

1шт.

52

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

1шт.

53

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

54

4343388

Hose

(SUB FOR TH4343388)

1шт.
