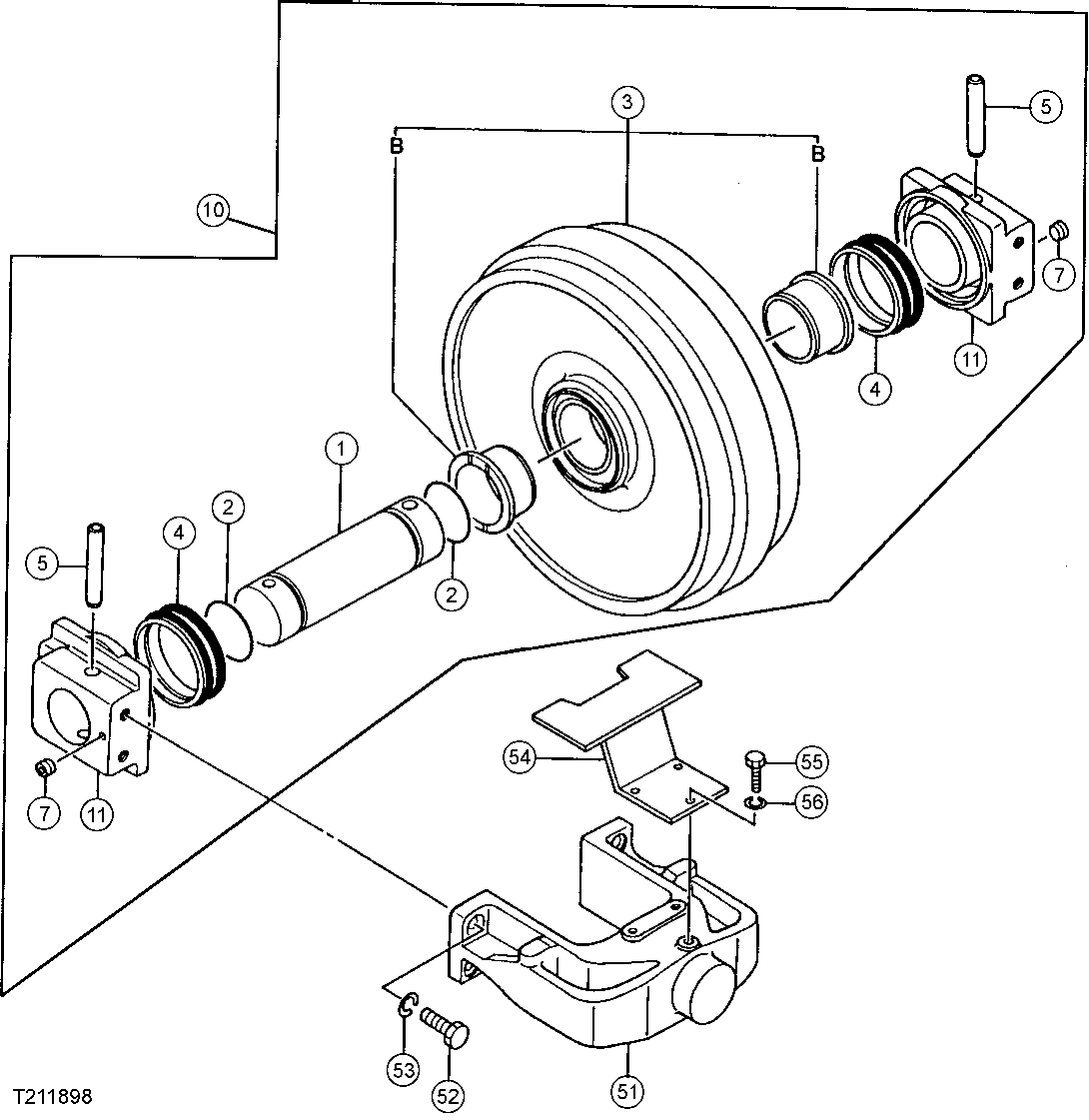

Запчасти John Deere 50LC 5 - Front Idler 0130 Track Systems

1

2037408

Axle

(SUB FOR TH2037408)

1шт.

2

TH100156

O-Ring

99.600 X 5.700 mm (3.921" X 0.224")

2шт.

3

9137280

Roller

( 3086382 NLA)

1шт.

3B

3059745

Bushing

(SUB FOR TH3059745)

2шт.

4

4344810

Seal

(SUB FOR AT202242)

2шт.

5

4215452

Dowel Pin

(SUB FOR TH4215452)

2шт.

7

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

2шт.

10

9137270

Idler

(SUB FOR 2044041, TH913 7270) Each Side Of Unit

1шт.

11

1020496

Bracket

(SUB FOR TH1020496)

2шт.

51

2033636

Yoke

(SUB FOR TH2033636)

1шт.

52

19M7888

Cap Screw

M24 X 60 (SUB FOR J912460)

4шт.

53

12H234

Lock Washer

1"

4шт.

54

8053767

Guard

(SUB FOR TH8053767)

1шт.

55

19M8011

Cap Screw

M12 X 30

3шт.

56

12H301

Lock Washer

1/2"

3шт.
